FORD CHASSIS PARTS

We stock BRAKE and SUSPENSION parts

Use these links for more information:

Brake Parts Drawings

Chassis/Frame Parts Drawings

Page 1 or 2 - Brake & Wheel Parts

Page 3 or 4 - Chassis/Steering Parts
Ford Part
Number

Description

Image Application Notes

Price for
New Part



Wheels - Brake Drums & Studs


B-1012 Lug Nut (½-20 thread x 13/16" hex)   Each: PIC 1932-60 $ 1.70
01A-1105-X Front Hub only    1940-42 car & pickup 145.00
21A-1125 Brake Drum (3¼" hole) - Hub mounts inside drum (requires 01A-1107K stud set below) PIC 1940-48 car & 40-47 pickup 179.00
51A-1125 Brake Drum (4" hole) - Hub mounts outside drum PIC 1946-48 car & 46-47 pickup 189.00
8C-1125 Brake Drum (front) PIC 1948-52 F1 pickup 105.00
0A-1125 Brake Drum (front) PIC 1949-54 Ford Car 110.00
A8TZ-1125 Brake Drum (front) PIC 1953-63 Ford F100 105.00
A8TZ-1126 Brake Drum (rear) PIC 1948-63 Ford F1/F100 99.00
AB-1126 Brake Drum (rear) PIC 1949-54 Ford Car Inquire
21A-1107K Drum Stud Kit (set of 5)  for 21A-1125 drum   (= 01A-1107K) PIC 1940-48 22.00

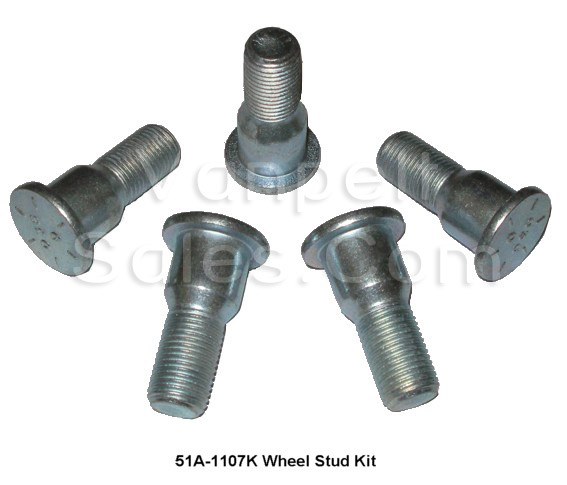

51A-1107K Drum Stud Kit (set of 5)  for 51A-1125 drum PIC 1946-48 24.50


Wheels - Grease Seals, Hubs & Hub Caps


01A-1105-X Hub only - Front  (made to match the 21A-1125 brake drums listed above) PIC 1940-48 car & 40-47 pickup $ 119.00

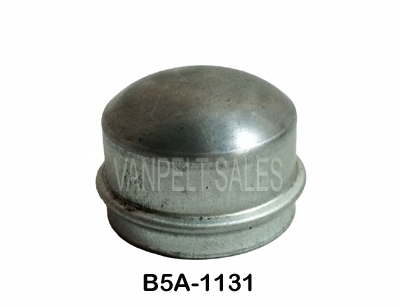

B5A-1131A Cap - Front Bearing Hub - Push-on type  PIC 1955-70 car  3.50
  68-1139 Cap - Front Bearing Hub - Threaded type PIC 1935-41 car & pickup 3.75

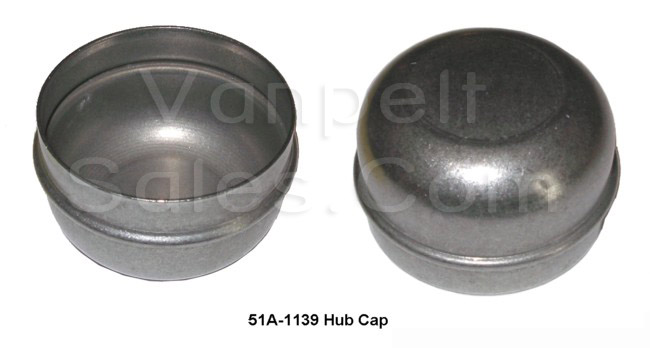

51A-1139 Cap - Front Bearing Hub - Push-on type PIC 1946-48 car & 46-47pickup 6.00
   B-1175 Rear Seal PIC 1932-38 car & 32-38 pickup  3.50

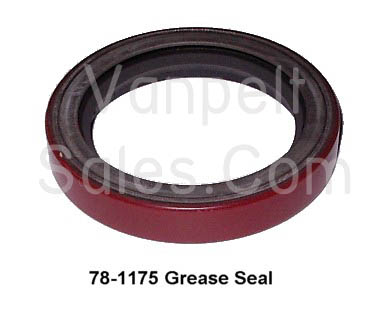

  78-1175 Rear Seal PIC 1938-48 car & 35-47 pickup  3.50
 BB-1175-C Rear Seal PIC 1934-52 truck (1 ton & larger) 14.50
  61-1175 Rear Seal  (3.60" OD) PIC 1938-47 122" truck + 48-51 F3 11.00
 8A-1177 Rear Seal PIC 1949-56 car 3.95
 0M-1177 Rear Seal PIC 1948-56 F1 & F100 pickup 3.95

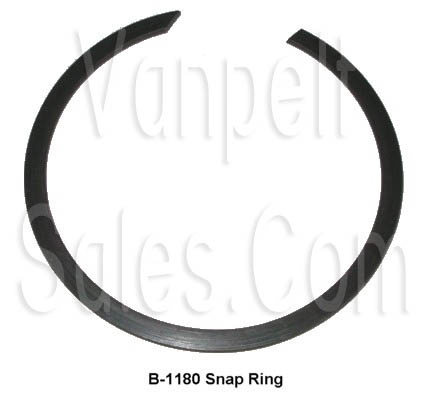

   B-1180 Snap Ring - Rear Seal  (3-11/32" OD) PIC 1928-38 car & pickup 2.50

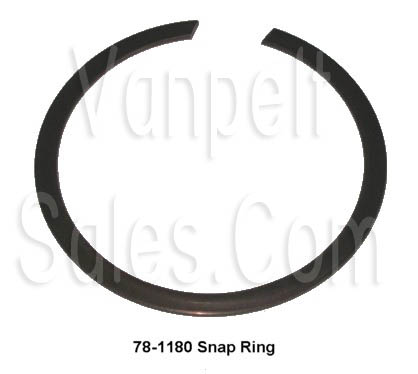

 78-1180 Snap Ring - Rear Seal  (3" OD) PIC 1938-48 car & pickup 2.50
8A-1180 Retainer - Rear Wheel Bearing PIC 1949-56 passenger car 7.50
8M-1180 Retainer - Rear Wheel Bearing PIC 1949-59 various car & pickup 7.95
   B-1183 Fiber Washer (gasket) - Rear Hub PIC 1928-48 car & pickup 1.50

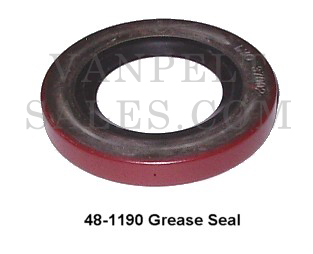

  48-1190 Front Seal PIC 1938-48 car & 35-47 pickup 3.50
  8A-1190 Front Seal  (2-5/8" OD) PIC 1949-53 car * & 1948-56 F1 / F100 4.25
A9A-1190 Front Seal  (2-1/2" OD) PIC 1949-54 car *
01Y-1190 Front Seal  (2-3/4" OD) PIC 1948-56 F1 & F100 pickup 3.50
Some 1949-54 car applications call for a 2-1/2" OD front seal (A9A-1190). Check drum/hub to measure actual seal diameter.


Wheels - Front Wheel Bearings & Parts

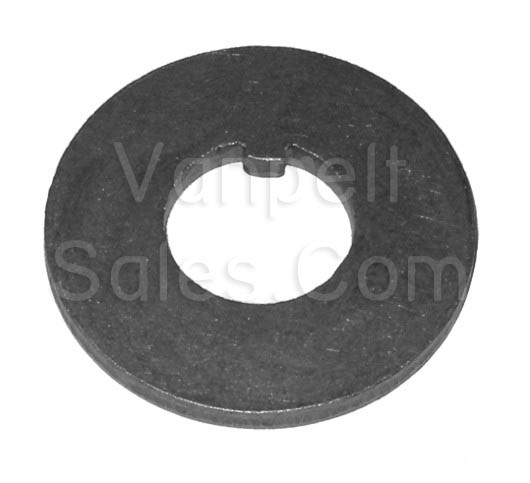

   B-1195 Washer - Front wheel bearing PIC 1932-48 cars $  2.50

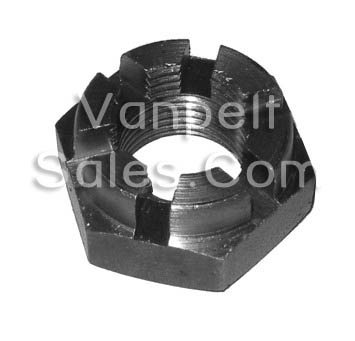

351129-S Castle Nut - Front spindle PIC 1932-48 cars 4.50

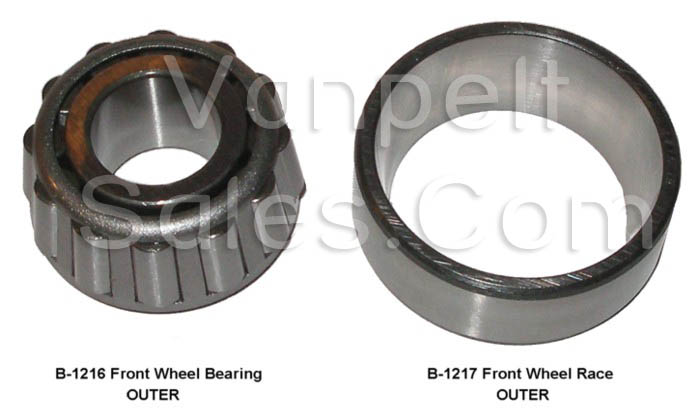

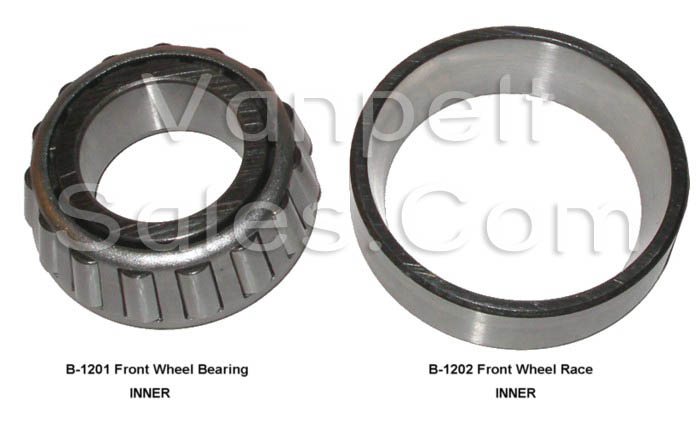

 B-1201-S Bearing Set (B1201 bearing + B1202 race + B1216 bearing + B1217 race) - Timken brand PIC 1932-48 cars 95.00
 8A-1201-S Bearing Set (8A-1201 bearing + 8A-1202 race) PIC 1949-54 cars Inquire
01Y-1201-S Bearing Set (01Y-1201 bearing + 01Y-1202 race) PIC 1948-56 pickup Inquire
 8A-1201 Wheel Bearing - Inner PIC 1949-54 cars 16.50
 8A-1202 Bearing Race - Inner PIC 1949-54 cars 6.50
 8A-1216-S Bearing Set (8A-1216 bearing + 8A-1217 race) PIC 1949-54 cars 28.00
 8A-1216 Wheel Bearing - Outer PIC 1949-54 car + 48-56 pickup 18.00
 8A-1217 Bearing Race - Outer PIC 1949-54 car + 48-56 pickup 8.50
 8M-1216 Wheel Bearing - Outer PIC 1949-51 Merc 26.00
 8M-1217 Bearing Race - Outer PIC 1949-51 Merc 16.00
 B5A-1201-S Bearing Set (B5A-1201 bearing + B5A-1202 race) PIC 1949-64 car + 55-59 Merc 16.00
B5A-1201 Wheel Bearing - Inner (for 2.50" hub) PIC 1949-64 car + 55-59 Merc 8.50
B5A-1202 Bearing Race - Inner  (for 2.50" hub) PIC 1949-64 car + 55-59 Merc 5.00
 B5A-1216-S Bearing Set (B5A-1216 bearing + B5A-1217 race) PIC 1949-64 car + 55-59 Merc 16.00
B5A-1216 Wheel Bearing - Outer PIC 1949-64 car + 55-59 Merc 7.50
B5A-1217 Bearing Race - Outer PIC 1949-64 car + 55-59 Merc 3.75
 Note: There are other applications that use the above wheel bearings. Check with us for bearings for your particular vehicle.


Hydraulic Brakes - Brake Shoes

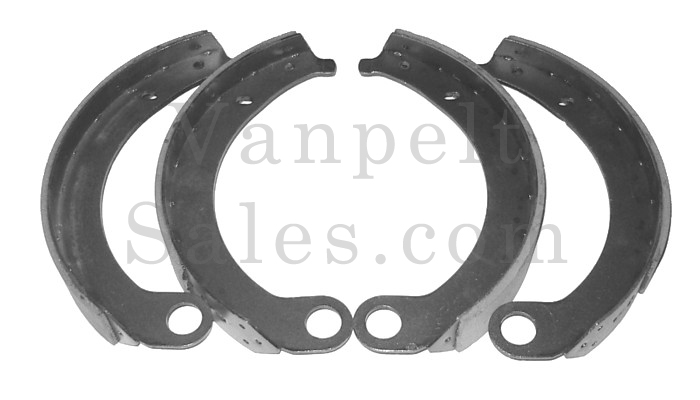

01A-2001S Brake Shoe Set of 4   (round hole) - 12" x 1¾" PIC 1939-42 car & 39-42 pickup $ 68.50

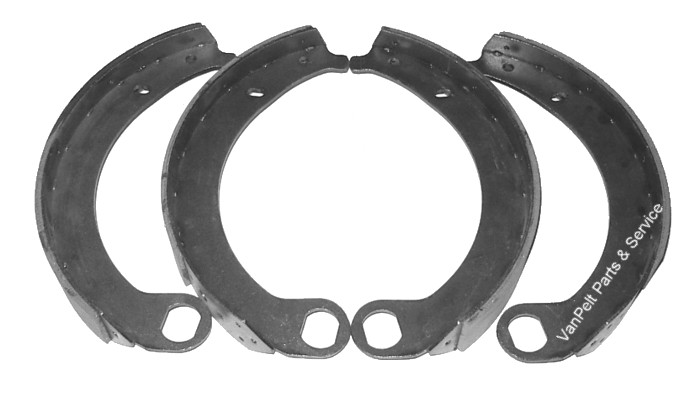

51A-2001S Brake Shoe Set of 4   (round hole with flat sides)  - 12" x 1¾" PIC 1946-48 car & 45-47 pickup 68.50
10-2001 Brake Shoe Set of 4   (Front) - 11 x 2" PIC 1948-66 F1 & F100 pickup 35.00
55-2001 Brake Shoe Set of 4   (Rear) - 11 x 1¾" PIC 1948-66 F1 & F100 pickup
1949-54 Ford wagon + 55-59 car
38.00
154-2001S Brake Shoe Set of 4   (Front) - 10 x 2¼" PIC 1949-53 Ford car 44.00
151-2001S Brake Shoe Set of 4   (Rear) - 10 x 1¾" PIC 1949-53 Ford car 44.00
   Note: All brake shoe sets priced above are NEW shoes & linings. No core is necessary.


Hydraulic Brakes - Master Cylinder Parts


91A-2004B Rebuild Kit PIC 1939-48 Car & Pickup $ 25.00

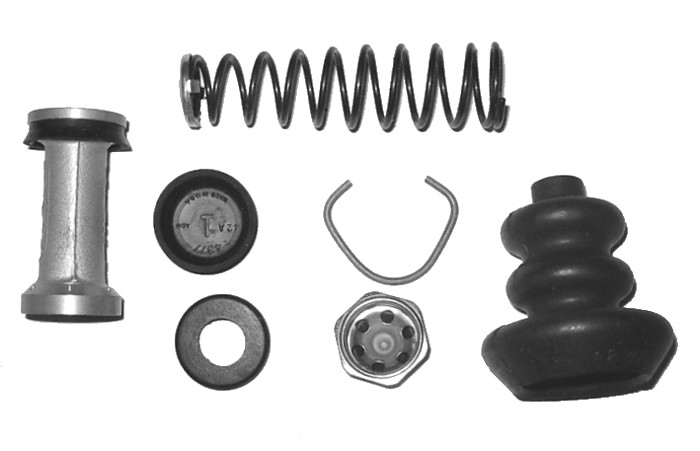

A9A-2004A Rebuild Kit PIC 1949-51 Ford Car 11.50
8M-2004 Rebuild Kit PIC 1949-51 Mercury 14.00
91T-2004 Rebuild Kit PIC 1939-47 1 Ton Truck 16.50

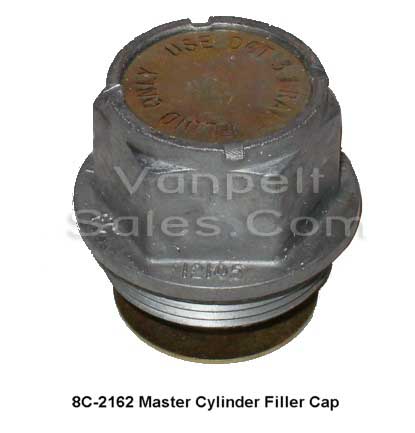

8C-2162 MC Filler Cap PIC 1939-48 Car & 39-51 Pickup 12.00
91A-2167 Gasket - MC Filler Cap PIC 1939-48 Car & 39-51 Pickup 1.50
11A-13480 Brake Light Pressure Switch (replaces 91A-113480 and 01A-13480) PIC 1939-64 Cars & Trucks 9.00
Note:  Some master cylinders may be too pitted/damaged for a safe repair. Consider buying a new master cylinder (see Page 2)


Hydraulic Brake Rebuild Kits


VP-2000-A Basic Brake Rebuild Kit   1939-48 Car & 39-47 Pickup $ 359.00
VP-2000-B Master Cylinder Rebuild Kit   1939-48 Car & 39-47 Pickup 99.00
VP-2000-AB Combined Rebuild Kit (includes all of the A kit plus all of the B kit)   1939-48 Car & 39-47 Pickup 440.00
The A kit includes: all 4 front/rear wheel cylinders, all 8 front/rear brake shoes, 4 front/rear grease seals, 2 front brake hoses, 1 rear brake hose, 4 brake shoe return springs, 4 cam eccentric adjustment washers. Customer must specify if shoes are 39-42 (round anchor hole) or 46-48 type (round anchor hole with flat sides). All parts are new (not rebuilt).
The B kit includes: One 91A type master cylinder, one 91A-2076 brass V fitting, one each copper washer, and one brake light hydraulic switch. All parts are new, (not rebuilt).
MORE  BRAKES PAGE 2    CHASSIS PARTS PAGE 3      CHASSIS PARTS PAGE 4

Please Note:
Prices are subject to change without notice and will be those in effect at the time of order

 We strive to keep this web page up-to-date, but suppliers often do not give us advance notice before changing pricing to us. Please confirm your pricing when placing an order. The New Parts listed here are primarily replacement parts from limited supplies of new-old-stock or new-old-replacement-stock; or new reproduction parts. The Ford part numbers listed are for identification purposes only, and do NOT represent or imply that the parts offered are genuine Ford service parts. Our minimum order for product is $10.00 and the minimum shipping charge is $10.00. All prices listed below are in US Dollars.

To place an order, call 1-513-724-9486. Office hours are Monday-Thursday from 9:00am to 5:00pm Eastern Time. You may also use the online store to make purchases if within the USA. Not all parts are listed on the store yet so check with our sales office if you do not see an item in the online store.

Please Note: All international packages require completion of the Customs Declaration Form, and will be charged a $10.00 documentation fee.
