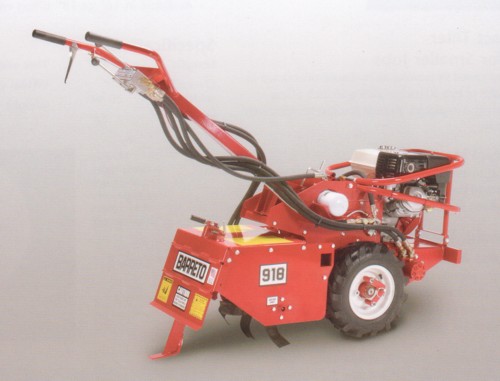

Compact Hydraulic 9hp Rear Tine
Tillers
A Rugged Rear
Tine Tiller
Now you can offer a rear tine roto-tiller that not only does the job
in hard soil conditions, but will hold up in your rental fleet. No more
stripped gears, broken belts, or worn out clutches. The simple advantages
of the all-hydraulic drive system, big horse- power engines, and heavy
weight, allow your customer to operate the Barreto in any soil without
destroying the machine. See why the rental industry is switching over to Barreto hydraulic
tillers. Invest a little more up front and save in
repairs and minimize lost rentals.
Engines Options
Model 918R:
Robin-Subaru, OHV 9 HP
Model 918H:
Honda, OHV 9 HP
| Dimensions: Length: Width: Height: Tine Width: Tine Diameter: Wheel Width Weight: |
66" 23" 28" 18" 13" 21" 460 Lb. |
- Quick release hubs for free wheeling allow the operator to easily roll and turn the tiller without engine power if so desired.
- Swiveling handle can be easily pivoted to the left or right side and locked into place, allowing the operator to walk behind the machine without stepping in the freshly tilled soil. The handle can also be adjusted for height while in any position.

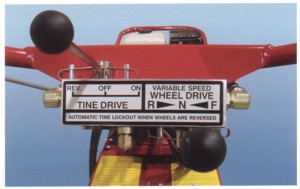

- Fingertip controls are simple to understand and easy to operate for the inexperienced or professional user. Wheels and tines work independently of each other, allowing the wheels to travel at variable speed while engine and tines remain at full speed. Tines automatically stop when wheels are in reverse. A safety clutch on the handlebar prevents accidental injury.
