FORD CHASSIS PARTS

We stock  SUSPENSION and BRAKE parts

Use these links for more information:

Brake Parts Drawings

Chassis/Frame Parts Drawings

Page 1 or 2 - Brake System Parts

Page
3 - Chassis/Frame Parts
Ford Part
Number
Description


Application Notes Price for
New Part


King Pin - Spindle Bolt Sets

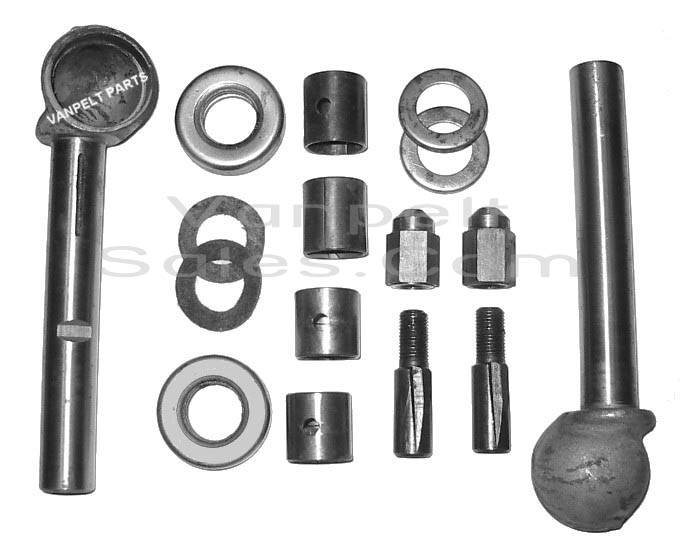

A-3111 Complete Kit PIC 28-31 Car & Pickup $ 124.50

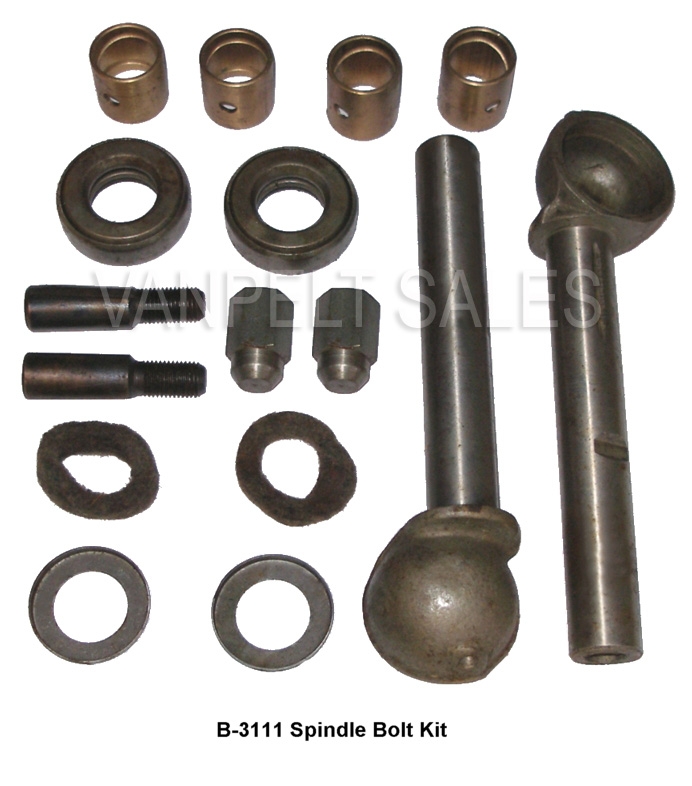

B-3111 Complete Kit PIC 32-34 Car & Pickup 124.50

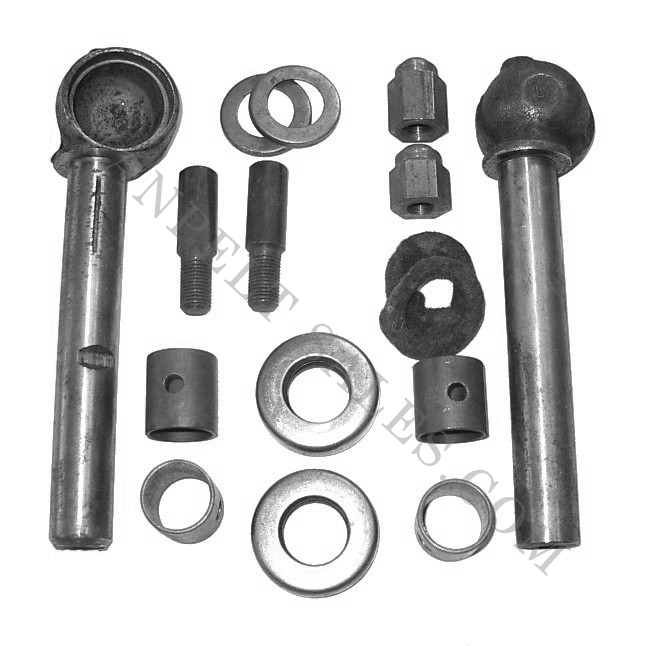

48-3111 Complete Kit PIC 35-36 Car & Pickup 124.50

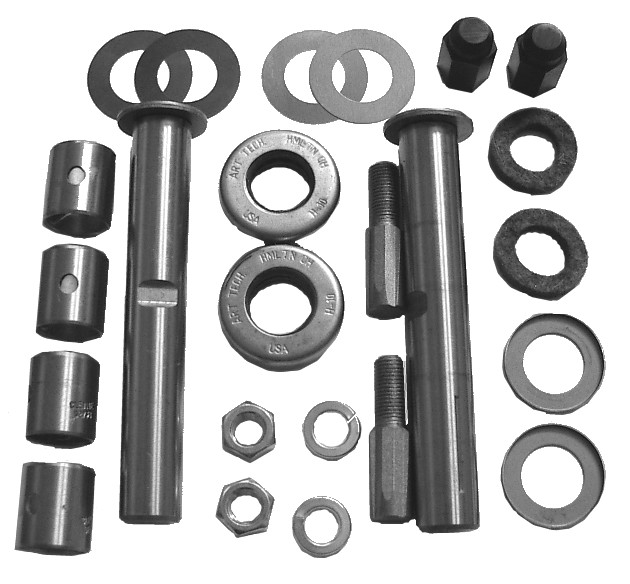

78-3111 Complete Kit PIC 37-41 Car & Pickup 44.50

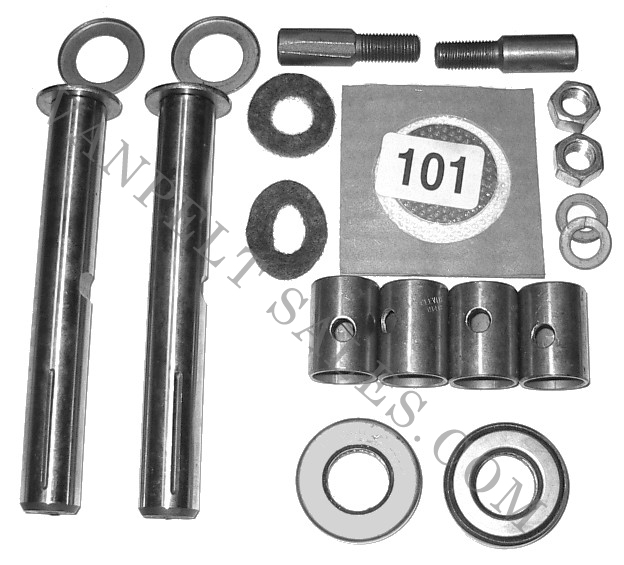

21A-3111 Complete Kit PIC 42-48 Car & 42-52 Pickup 44.50

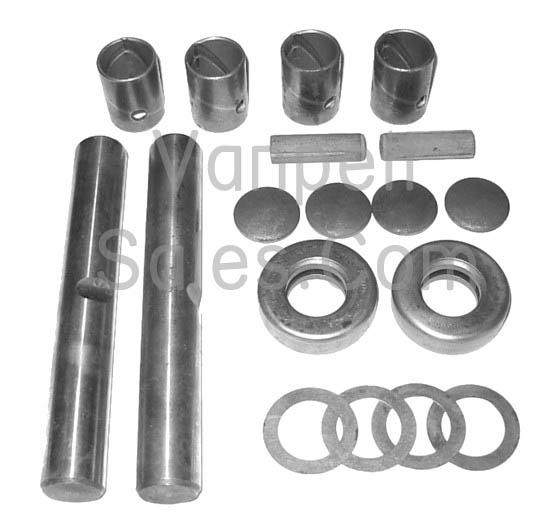

A9A-3111 Complete Kit PIC 49-53 Ford car & 52-53 Merc 39.50
8M-3111 Complete Kit PIC 49-51 Mercury 79.50
BB-3111 Complete Kit PIC 1930-34 Truck 149.50
 51-3111 Complete Kit PIC 1935-37 Truck 94.50
81T-3111 Complete Kit PIC 1938-47 Truck 79.50
Note: Above sets each include necessary parts (king pins, bushings, bearings, felts, retainers, lock pins, nuts, and shims) to service both spindles.


Tie Rod Ends & Kits


11A-3270R Right Hand Side (includes boot) PIC 35-48 Car & 35-64 Pickup $ 14.50

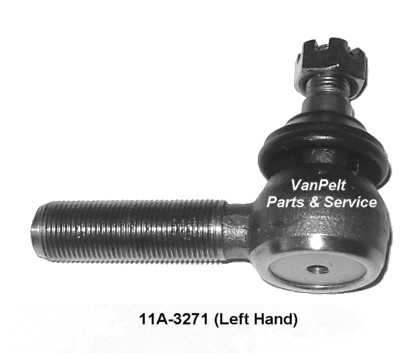

11A-3271R Left Hand Side (includes boot) PIC 35-48 Car & 35-64 Pickup 14.50
11A-3270 Right Hand Side (includes boot)  -  made in USA PIC 35-48 Car & 35-64 Pickup 27.50
11A-3271 Left Hand Side (includes boot)  -  made in USA PIC 35-48 Car & 35-64 Pickup 27.50
8A-3280-KT L & R Hand Inner & Outer ends plus sleeves PIC 49-51 Ford Car 109.50
8M-3280-KT L & R Hand Inner & Outer ends plus sleeves PIC 49-51 Mercury 119.50
AB-3280-KT L & R Hand Inner & Outer ends plus sleeves PIC 52-53 Ford Car 285.00
MA-3280-KT L & R Hand Inner & Outer ends plus sleeves PIC 52-53 Mercury 121.00

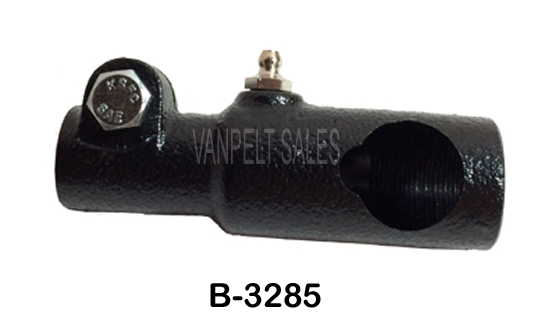

B-3285 Tie Rod End Housing (RH) PIC 28-34 Ford car 16.50

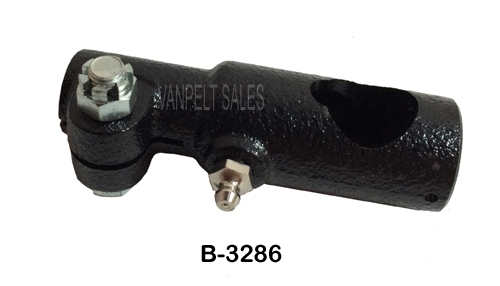

B-3286 Tie Rod End Housing (LH) PIC 28-34 Ford car 16.50


Steering Drag Links


  A-3305-SE Kit - Tie Rod & Drag Link (16 pcs) PIC 28-34 Ford car $   39.00
  11Y-3306 Link - Includes both ends - 35" long PIC 1935-41 Car & Pickup 125.00

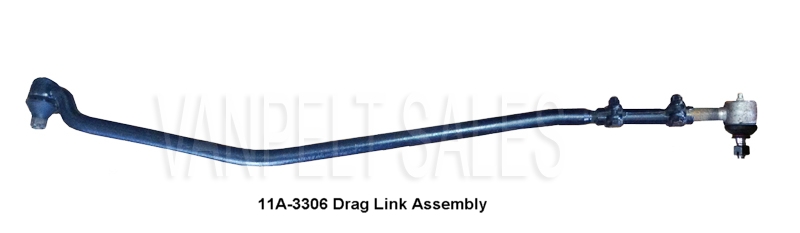

  11A-3306

Link - Includes both ends - Bent end style PIC 1941 Car 125.00

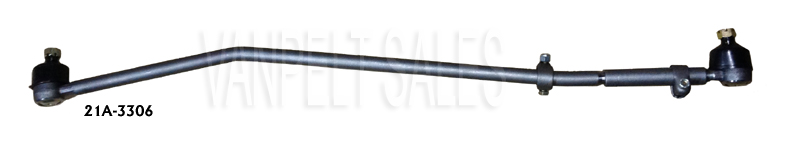

  21A-3306 Link - Includes both ends - 34" long PIC 1942-48 Car & Pickup 125.00
   B-3111 Ball Stud for Drag Link (threaded type) PIC 28-34 Ford car 8.00


Radius Rod Bushings


11A-3440 Cap - Radius Rod Bushing PIC 41-48 Car $  7.00

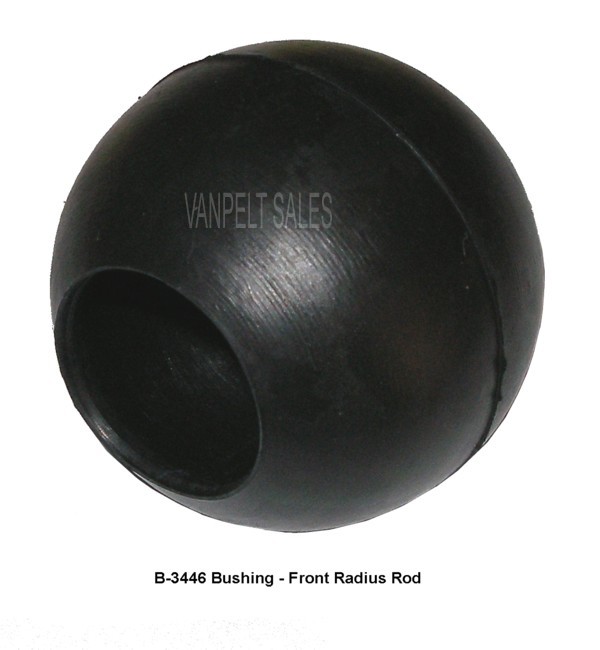

B-3446 Bushing - Front radius rod PIC 32-40 Car & 21-41 Pickup 4.50

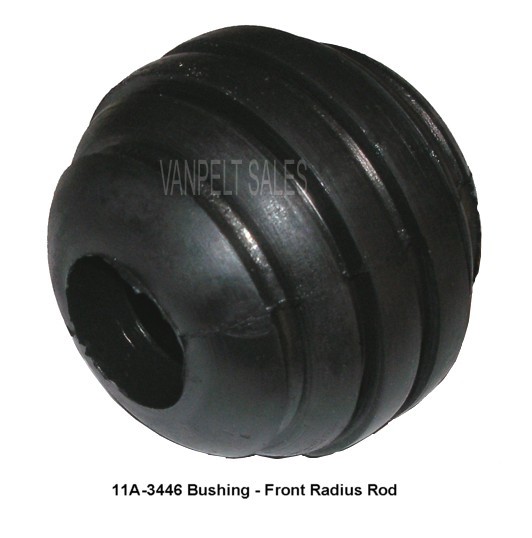

11A-3446 Bushing - Front radius rod PIC 41-48 Ford Car 3.50


Steering Gear Box Parts

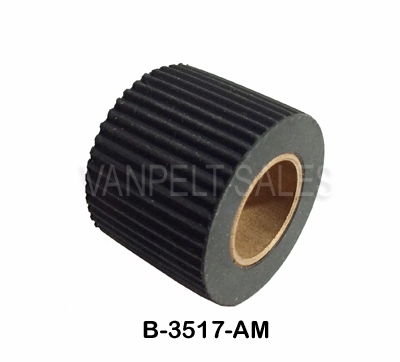

 B-3517-A Bushing with bronze insert - Steering column PIC 1932-41 car & Pickup $  22.00

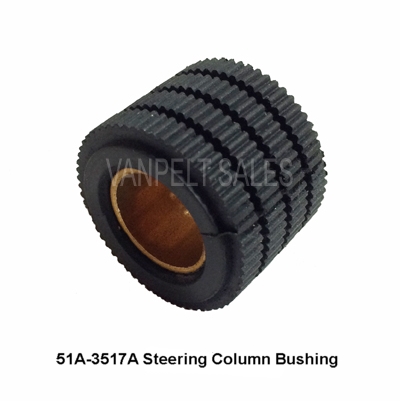

 51A-3517-A Bushing with bronze insert - Steering column PIC 1942-48 Car 7.50

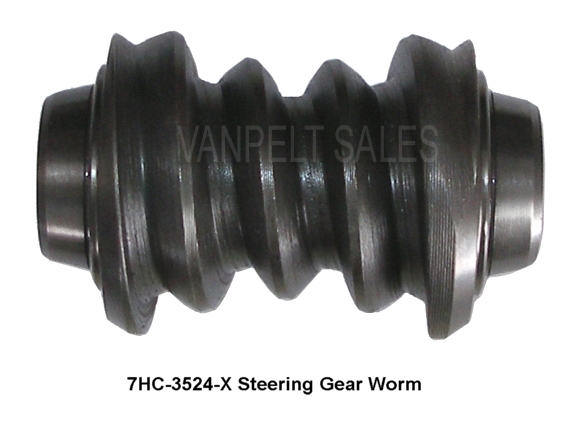

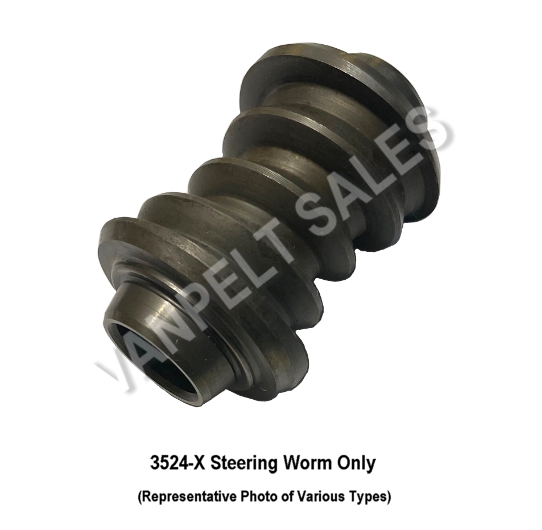

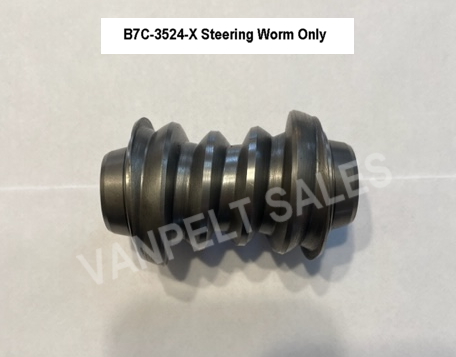

 7HC-3524-X Steering Gear Worm only PIC 1937-48 Car & 37-52 Pickup 74.50
 8A-3524-X Steering Gear Worm only PIC 49-51 Ford Car 79.50

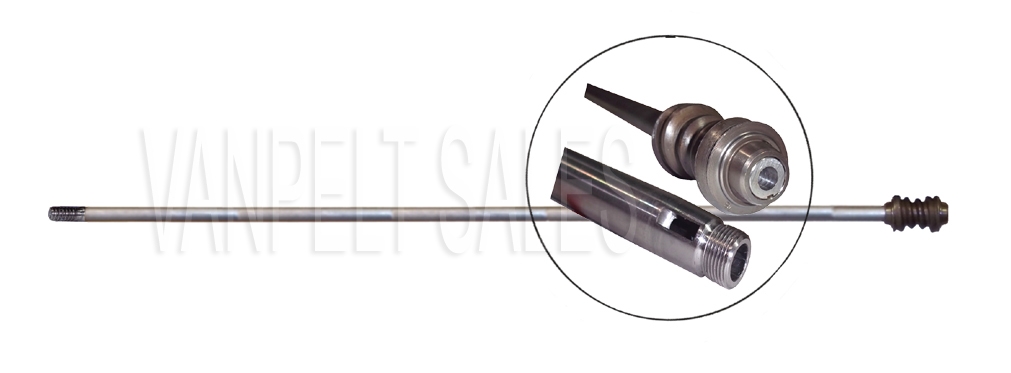

 01A-3524 Steering Shaft & Worm Assy PIC 1937-48 Car 159.00
 11A-3524 Steering Shaft & Worm Assy PIC 1941-48 Car 159.00
 82Y-3524 Steering Shaft & Worm Assy PIC 1938-47 Pickup 159.00

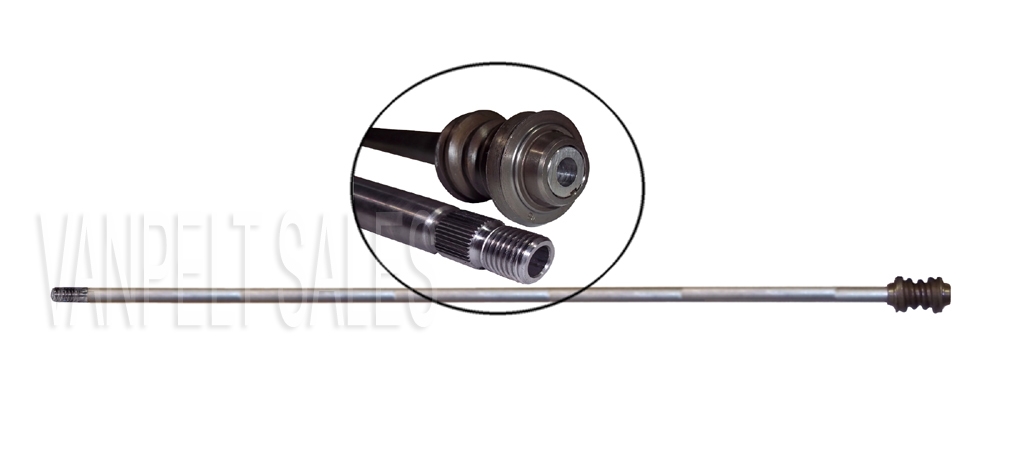

 7HC-3524 Steering Shaft & Worm Assy PIC 1948-52 Pickup 159.00
SGK-3548-A Steering Gearbox Bearing-Seal-Gasket Kit PIC 37-48 Car & 37-47 Pickup 73.00

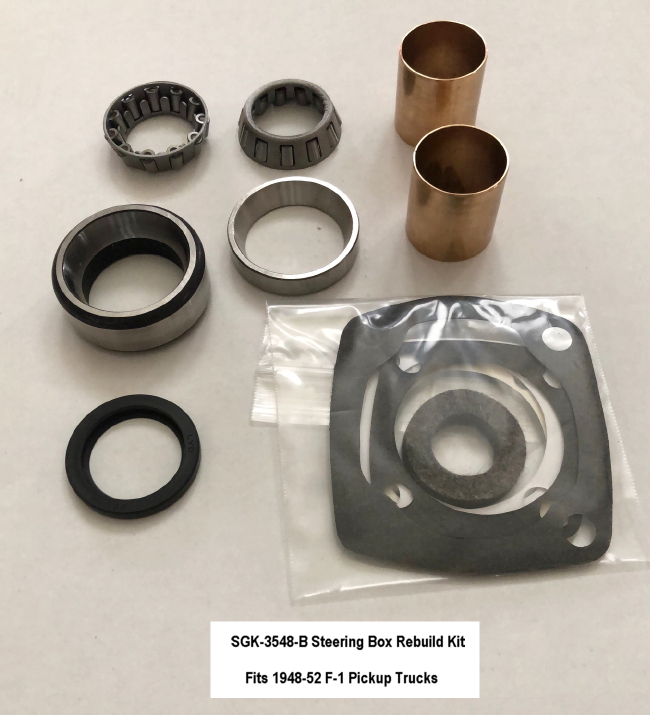

SGK-3548-B Steering Gearbox Bearing-Seal-Gasket Kit PIC 48-52 Pickup (F1) 73.00

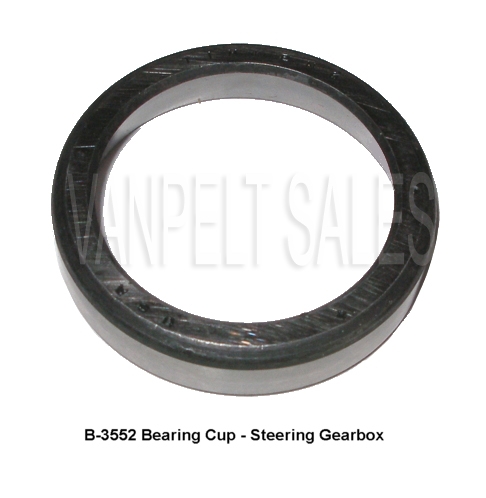

B-3552 Upper Bearing Cup (also is the lower cup for 1937-48 cars) PIC 32-48 Various 10.00
68-3553 Upper Bearing Cup (replaces B-3553) PIC 32-35 Car & 32-35 Pickup 65.00

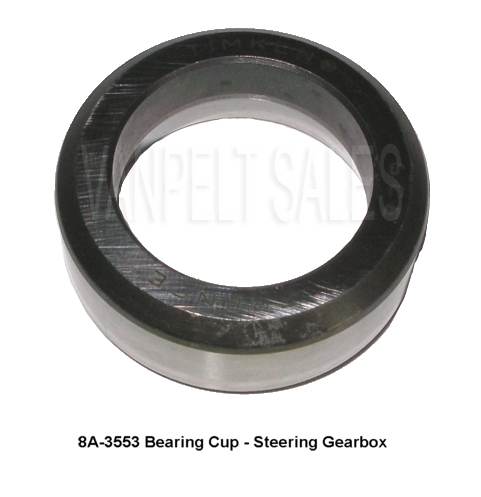

8A-3553 Lower Bearing Cup (also upper cup on some later applications) PIC 37-57 Various 26.00

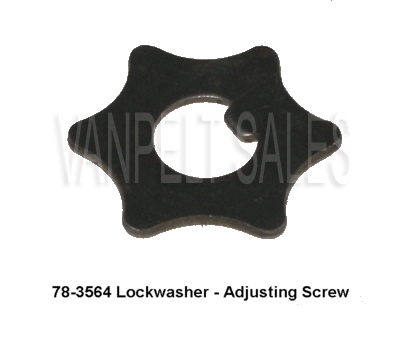

78-3564 Lockwasher - Adjusting Screw PIC 1937-48 Car & 37-52 Pickup 1.50
B-3571 Tapered Roller Bearing Cone (2 required) each: PIC 32-35 Car & 32-35 Pickup 16.00

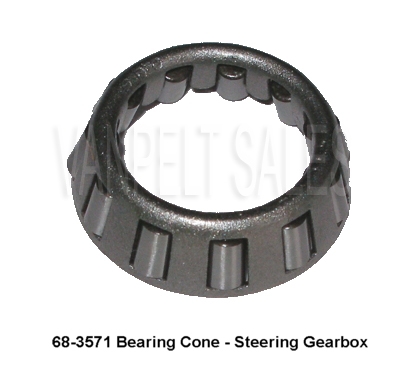

68-3571 Tapered Roller Bearing Cone (2 required)  each: PIC 36-48 Car & 36-47 Pickup 9.00

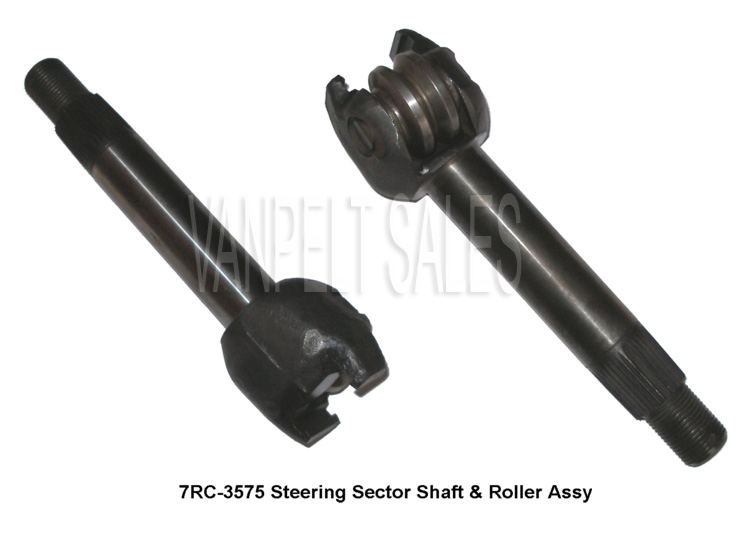

7RC-3575 Sector Shaft & Roller Assy PIC 1937-48 Car & 37-52 Pickup Call for Prices

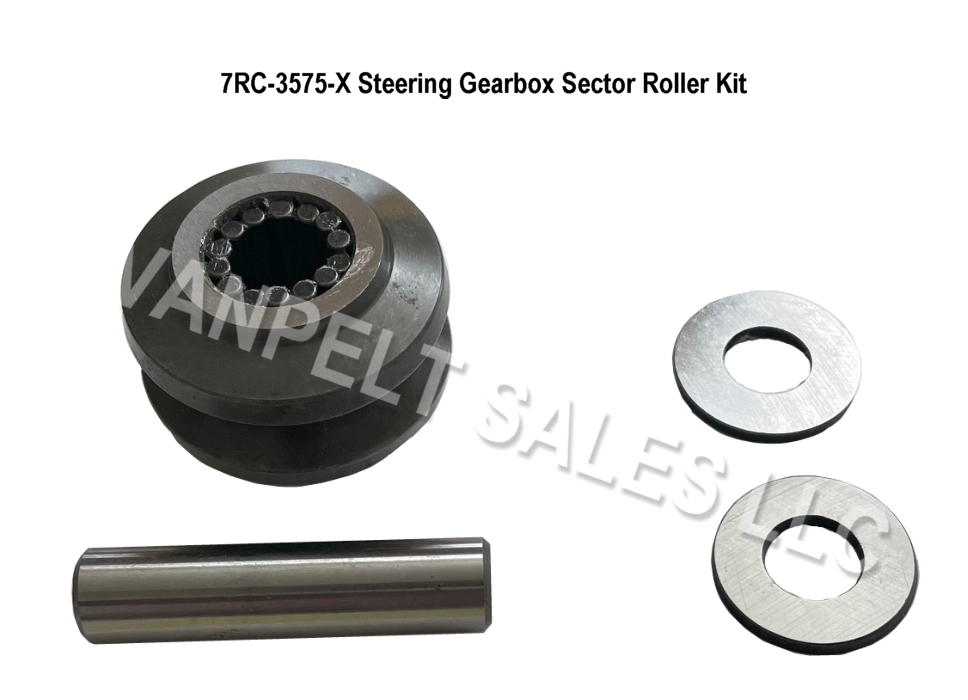

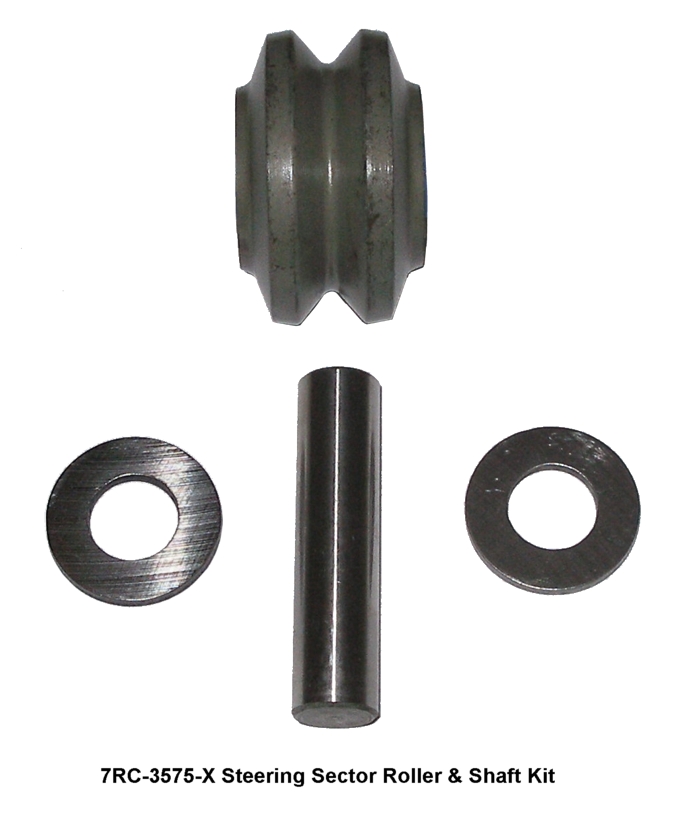

7RC-3575-X Roller & Shaft Kit for sector shaft assy PIC 1937-48 Car & 37-52 Pickup 65.00

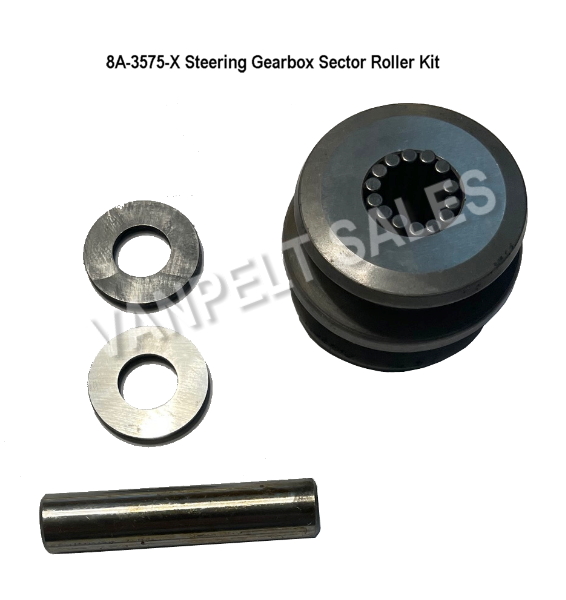

8A-3575-X Roller & Shaft Kit for sector shaft assy PIC 49-51 Ford Car 79.50
8M-3575 Sector Shaft & Roller Assy   (9-3/16" long) PIC 49-51 Mercury Call for Prices
68-3576 Bearing - Sector Shaft PIC 1936 Car & 49-51 Ford car 8.95

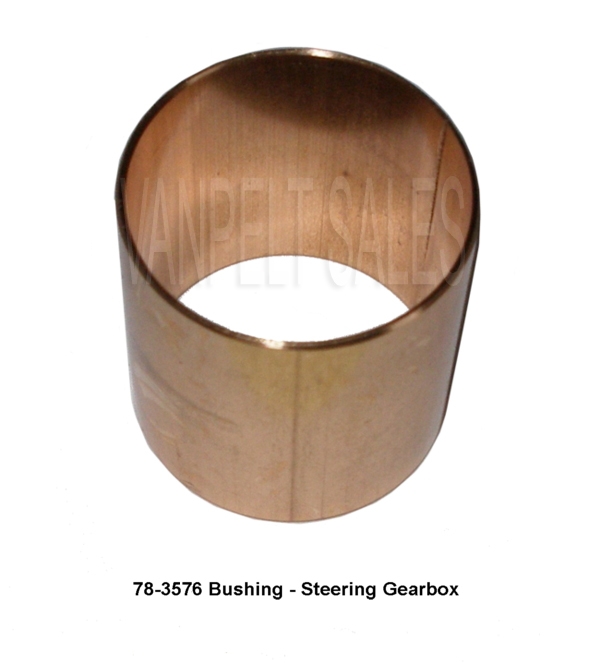

78-3576 Bushing - Sector Shaft PIC 1937-48 Car & 37-52 Pickup 5.00

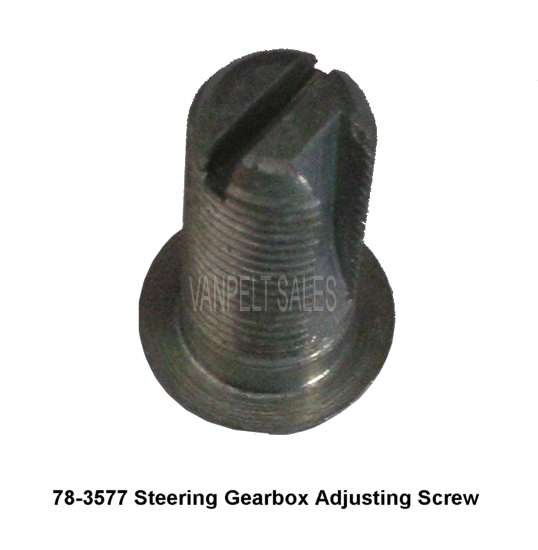

78-3577 Adjusting Screw PIC 1937-48 Car & 37-52 Pickup 3.00

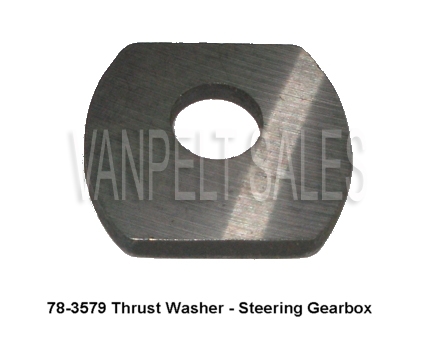

78-3579 Thrust Washer - Adjusting Screw PIC 1937-48 Car & 37-52 Pickup 3.00
B-3581-S Gasket Set PIC 32-36 Car & Pickup 9.50

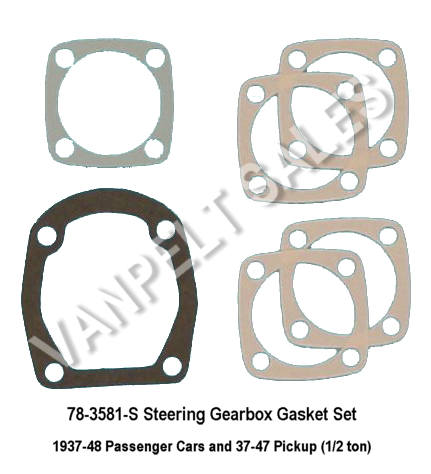

78-3581-S Gasket Set PIC 37-48 Car & 37-47 Pickup 9.50
7RC-3581-S Gasket Set PIC 48-56 F1 & F100 Pickup 9.50

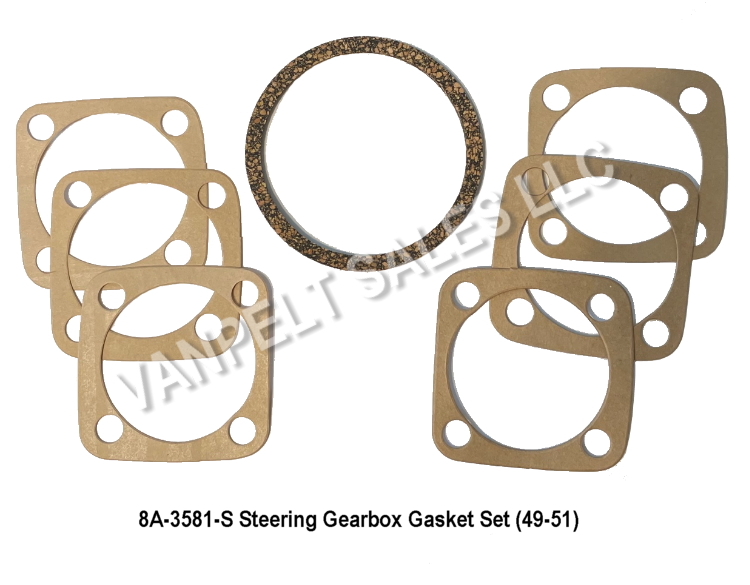

8A-3581-S Gasket Set (7 pcs) PIC 49-51 Ford Car 9.95
AB-3581-S Gasket Set PIC 52-57 Car 9.50
      3590 Steering Arm (pittman arm) - various types PIC Limited availability

Call for Prices

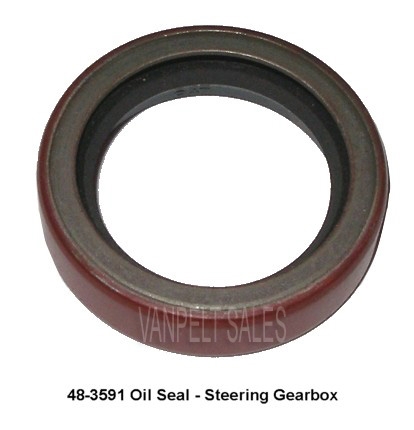

48-3591 Oil Seal (gearbox) PIC 37-48 Car & 35-47 Pickup 3.50

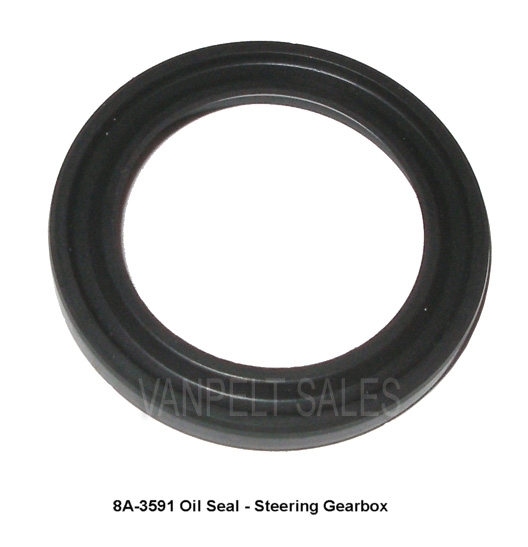

8A-3591 Oil Seal (gearbox) PIC 49-56 Car & 48-52 F1 2.50

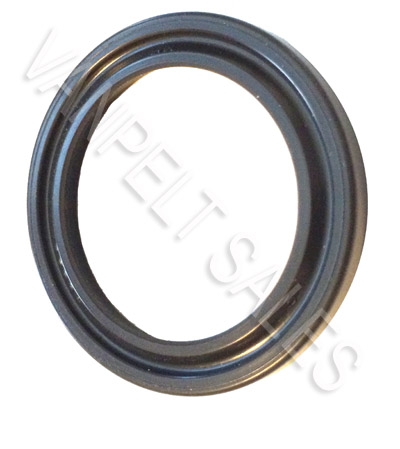

8M-3591 Oil Seal (gearbox) PIC 53-60 F100 & 49-51 Merc 2.50
B-3609 Key - Steering Wheel to Shaft PIC 32-48 Car & 32-47 Pickup 1.00
B-3610 Nut - Steering Wheel to Shaft PIC 32-48 Car & 32-47 Pickup 1.00
B-3642 Spring - Light Switch Spider PIC 32-39 Car & 32-39 Pickup 2.00
B-3643 Spider - Light Switch PIC 32-39 Car & 32-39 Pickup 4.00
B-3644 Retainer - Light Switch Spider PIC 32-39 Car & 32-39 Pickup 1.00
B-3647 Wire Bail - Light Switch Housing PIC 32-36 Car & 32-36 Pickup 2.00
78-3647 Wire Bail - Light Switch Housing PIC 37-39 Car & 37-39 Pickup 5.00
81A-3704/9K Ignition Switch (body and brush) PIC 38-40 Car & 38-47 Pickup 19.75

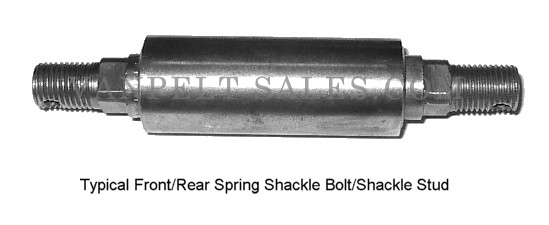

Front Shackle Bolt - Kits


B-5304-S Front Shackle Kit PIC 32-34 Car & Pickup $ 19.50
48-5304-S Front Shackle Kit PIC 35-40 Car & Pickup 19.50
11A-5304-S Front Shackle Kit PIC 1941 Car 19.50
21A-5304-S Front Shackle Kit PIC 42-48 Car 23.50
Note:


Rear Shackle Bolt - Kits


B-5630-S Rear Shackle Kit PIC 32-34 Car & Pickup $ 19.50
48-5630-S Rear Shackle Kit PIC 35-40 Car & Pickup 19.50
11A-5630-S Rear Shackle Kit PIC 1941 Car 19.50
21A-5630-S Rear Shackle Kit PIC 42-48 Car 19.50
Note:


Shackle Bushings - Front & Rear


21A-5467 Shackle Rubber Bushing PIC 42-48 Car 1.85
21A-5484 Rubber Bushing (front stabilizer bar - 2 req'd) PIC 42-48 Car 3.95
21A-5719 Shackle Bushing  PIC 42-48 Car 1.75


Shock Links - Front & Rear


48-18055 Shock Link (3.00") - Various Front & Rear PIC 35-41 Car & Pickup $ 16.95
78-18055 Shock Link (4.00") - Various Front & Rear PIC 37-42 Various 16.95
99A-18055 Shock Link (3.00") - Various Front & Rear PIC 41-42 Various 16.95
21A-18055 Shock Link (3.00") - Front Stabilizer Bar PIC 42-48 Car 16.95
Note: Links are measured from stud center-to-center. The links fit a variety of front and rear applications within the years listed. Contact us for your specific application if you are not sure


Other Suspension Parts


51A-18197 Bushing - Track Bar & Shock (4 per bar)   (also replaces the 99A-3556A bushings) PIC

1942-48 Car

$  2.00

BRAKE PARTS PAGE 1      BRAKE PARTS PAGE 2       CHASSIS PARTS PAGE 3

Please Note:
Prices are subject to change without notice and will be those in effect at the time of order

 We strive to keep this web page up-to-date, but suppliers often do not give us advance notice before changing pricing to us. Please confirm your pricing when placing an order. The New Parts listed here are primarily replacement parts from limited supplies of new-old-stock or new-old-replacement-stock; or new reproduction parts. The Ford part numbers listed are for identification purposes only, and do NOT represent or imply that the parts offered are genuine Ford service parts. Our minimum order for product is $10.00 and the minimum shipping charge is $8.00. All prices listed below are in US Dollars.

To place an order, call toll free (from USA locations) 1-800-299-7496. Office hours are Monday-Thursday from 9:00am to 5:30pm Eastern Time. If you are outside the USA please call (513) 724-9486. The same office hours apply. You may also use the online store to make purchases if within the USA. Not all parts are listed on the store yet so check with our sales office if you do not see an item in the online store.

INTERNATIONAL PHONE ORDERS: If you wish to order parts by telephone and credit card, please call (513) 724-9486 only during regular office hours.

Please Note: All international packages require completion of the Customs Declaration Form, and will be charged a $10.00 documentation fee.
