FLATHEAD V8 ENGINE PARTS

We stock parts for Ford flathead V8 engines from 1932 to 1953

Use this link for exploded drawings:

ENGINE PARTS DRAWINGS

Engine Parts Page 1 - Page 2 - Page 3 - Page 4
Ford Part
Number
Description Image Application Notes Price for
New Part


Engine & Trans Motor Mounts


    5089-5099 Rear Transmission Support Parts   See Page 4 - Trans Parts
    6000 Front Engine & Rear Trans Support Parts   See Page 4 - Trans Parts


Engine Gasket Sets


   74-6008 Engine Overhaul Gasket set - 17 stud motor PIC

2.60" bore (1937-40 V8-60)

$ 231.00
 1GA-6008 Engine Overhaul Gasket set - G series Six motor PIC

3.30" bore (1941-47 Six)

310.00
  7HA-6008 Engine Overhaul Gasket set - H series Six motor PIC

3.30" bore (1948-51 Six)

   215.00

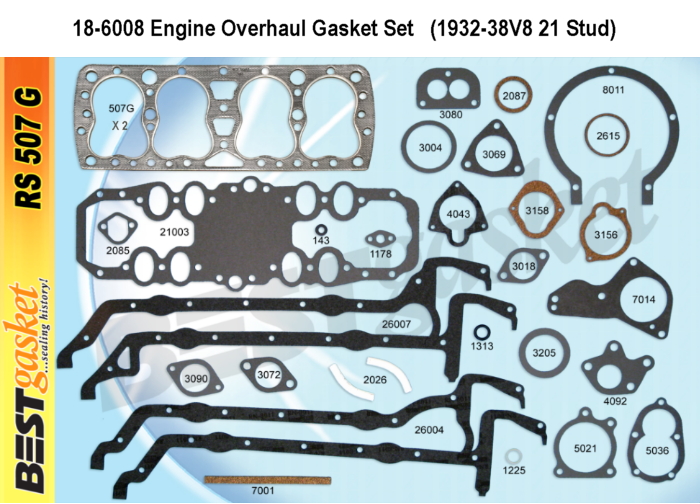

 18-6008 Engine Overhaul Gasket set - 21 stud motor PIC

3-1/16" bore  (1932-37 V8)

   199.00

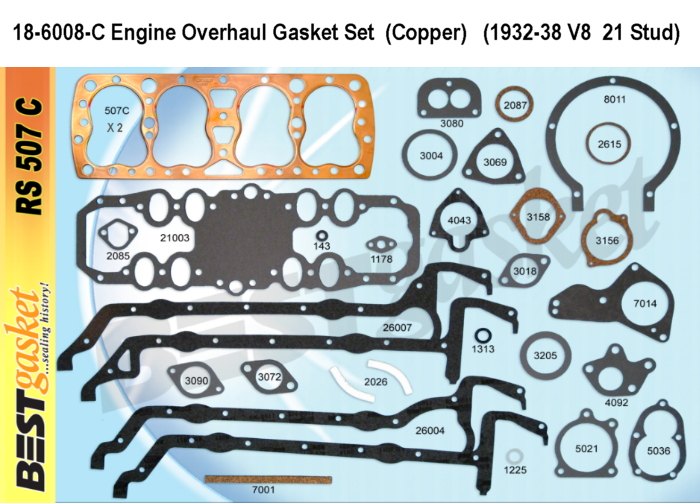

 18-6008-C Engine Overhaul Gasket set - 21 stud motor - Copper PIC

3-1/16" bore  (1932-37 V8)

   245.00

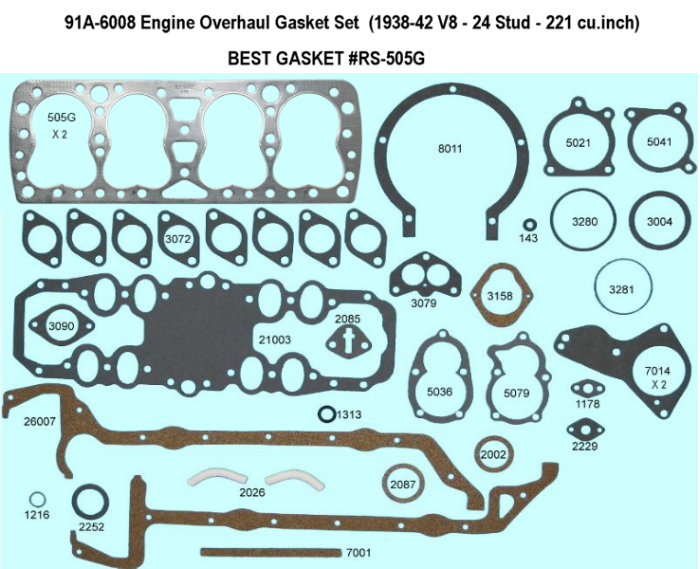

 91A-6008 Engine Overhaul Gasket set - 24 stud motor PIC

3-1/16" bore  (1938-42 V8)

   145.00

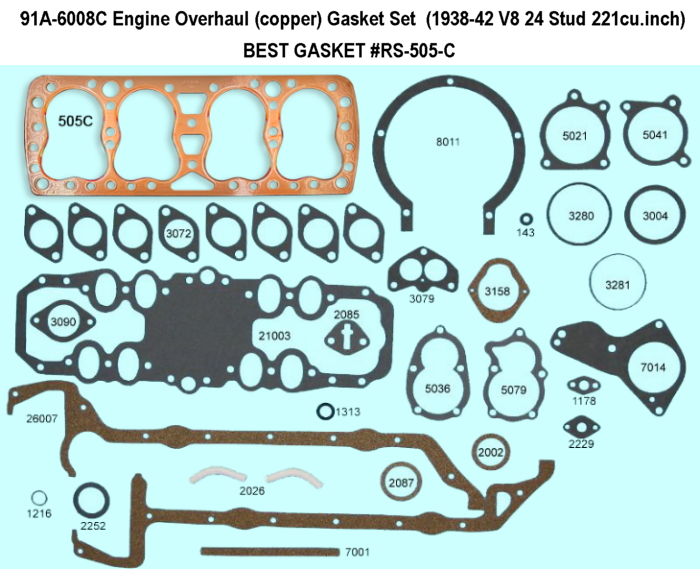

 91A-6008-C Engine Overhaul Gasket set - 24 stud motor - Copper PIC

3-1/16" bore  (1938-42 V8)

   225.00

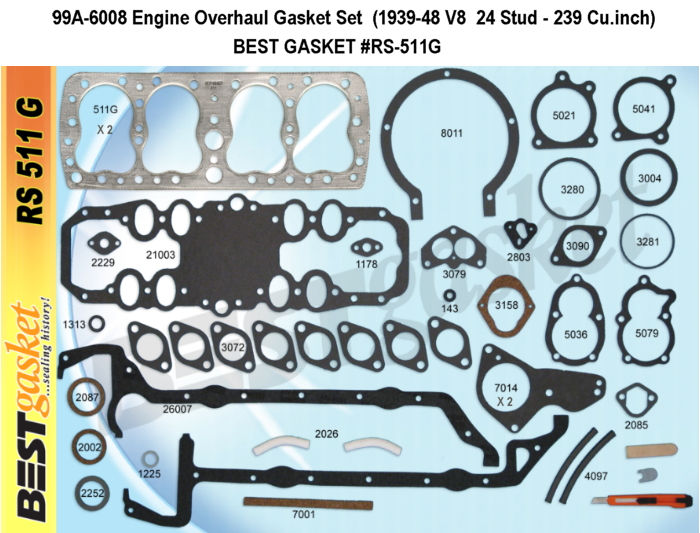

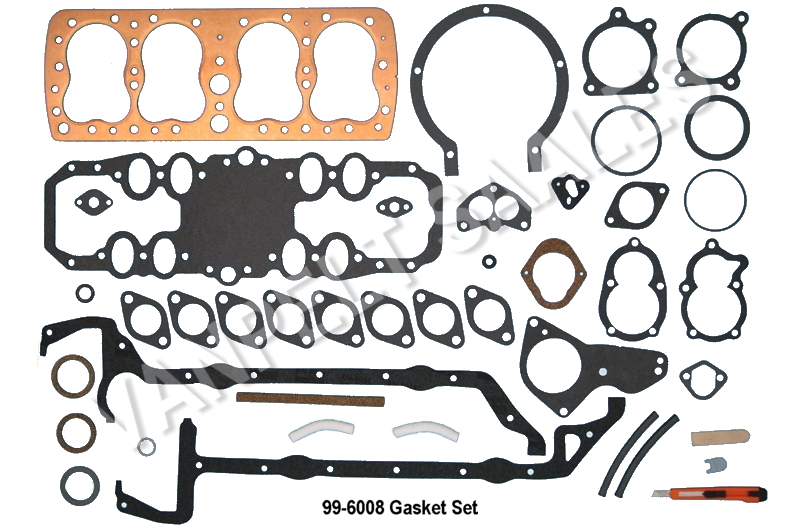

 99A-6008 Engine Overhaul Gasket set - 24 stud motor PIC

3-3/16" bore  (1939-48 V8)

   139.00

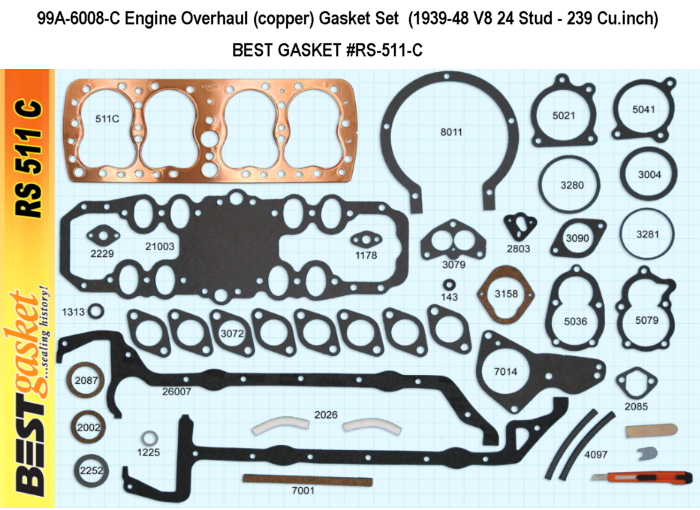

 99A-6008-C Engine Overhaul Gasket set - 24 stud motor - Copper PIC

3-3/16" bore  (1939-48 V8)

  195.00

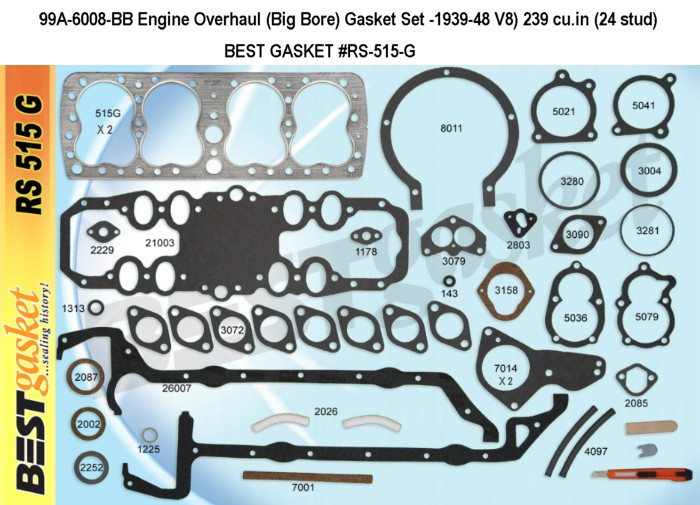

 99A-6008-BB Engine Overhaul Gasket set - 24 stud motor - Big Bore PIC

3-3/16" big bore  (1939-48 V8)

199.00

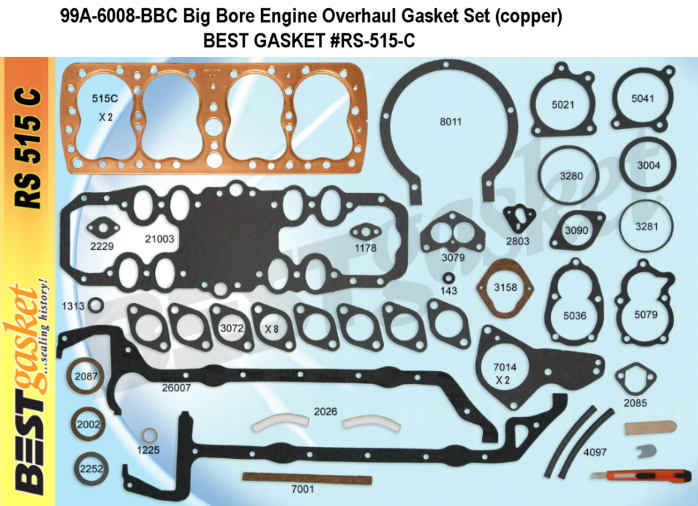

 99A-6008-BBC Engine Overhaul Gasket set - 24 stud motor - Big Bore - Copper PIC

3-3/16" big bore  (1939-48 V8)

235.00

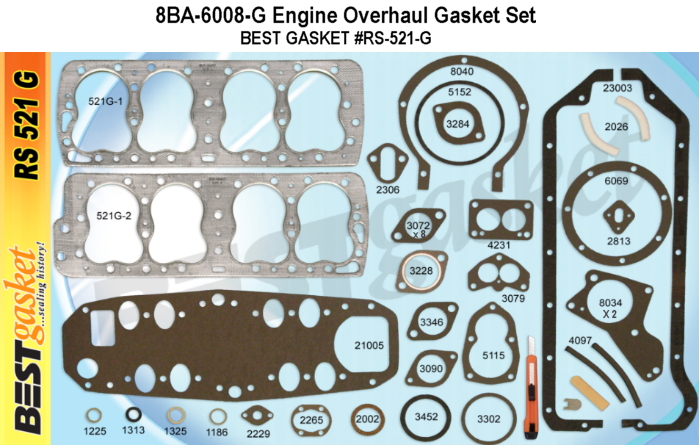

 8BA-6008 Engine Overhaul Gasket set - 24 bolt motor PIC

3-3/16" bore  (1949-53 V8)

     125.00

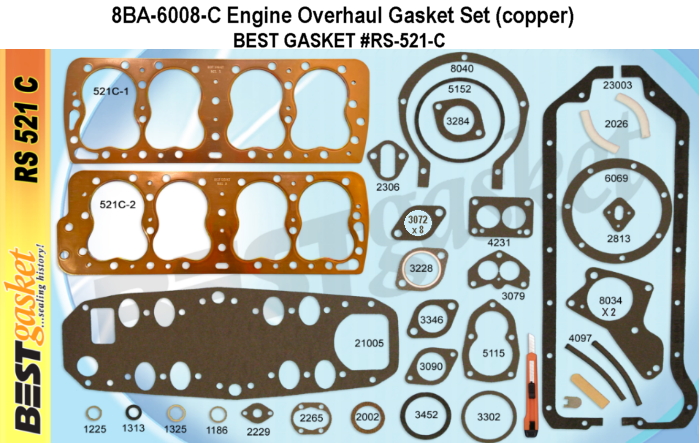

 8BA-6008-C Engine Overhaul Gasket set - 24 bolt motor - Copper PIC

3-3/16" bore  (1949-53 V8)

   189.00

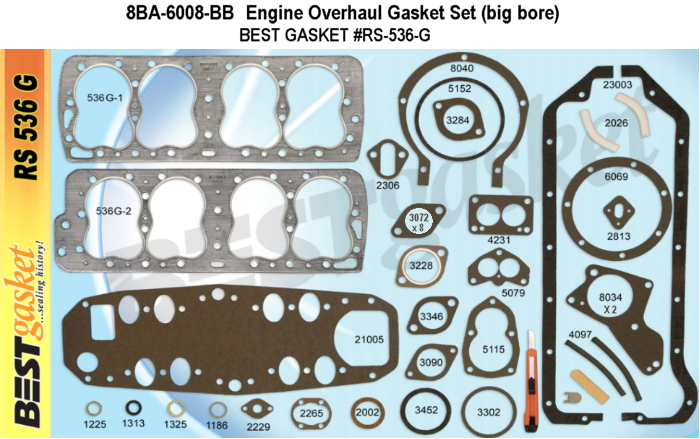

 8BA-6008-BB Engine Overhaul Gasket set - 24 bolt motor - Big Bore PIC

3-3/16" Big bore  (1949-53 V8)

    195.00

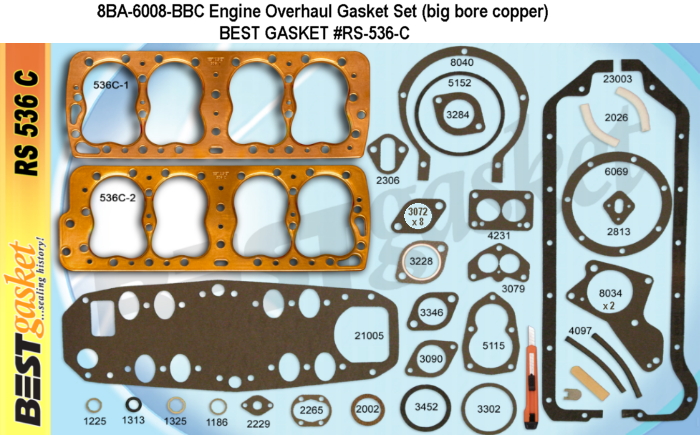

 8BA-6008-BBC Engine Overhaul Gasket set - 24 bolt motor - Copper - Big Bore PIC

3-3/16" Big bore  (1949-53 V8)

225.00
 8EL-6008-C Engine Overhaul Gasket set - 27 bolt motor - Copper PIC

3-1/2" bore (1949-51 337 V8)

413.00
 B6A-6008-A Engine Overhaul Gasket set - Y Block motor (239 late -272-292 V8) PIC

239-272-292 V8 (1955-64)

175.00
 B6A-6008-B Engine Overhaul Gasket set - Y Block motor (312 V8) PIC

312 V8 (1956-57)

175.00
 Note:   Standard kits above include composite head gaskets. Kits with the -C suffix include copper head gaskets instead of composite types.


Engine Block Parts


 18-6019 Timing Cover - 3 bolt distributor mount - for 85hp V8      (NOS) PIC 1932-41 cars/32-41 trucks $  19.00
21A-6019 Timing Cover - 2 bolt distributor mount - for 85-100hp V8  (USED - CLEANED) PIC 1942-48 cars/42-47 trucks 85.00
21A-6019 Timing Cover - 2 bolt distributor mount - for 85-100hp V8  (NOS - Limited Supply) PIC 1942-48 cars/42-47 trucks 95.00
 18-6025A Bushing - Fuel Pump Push Rod PIC 1932-48 cars/32-47 trucks 5.50
 8BA-6025 Bushing - Fuel Pump Push Rod PIC 1949-53 cars/48-53 trucks       5.50

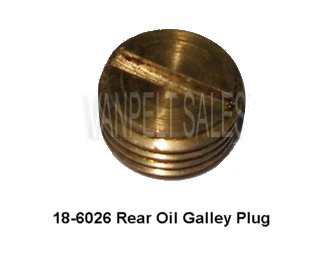

 18-6026 Plug (rear) - Brass with straight slot  PIC 1932-48 V8        3.00
 8BA-6026 Plug (front) - Steel with hex socket PIC 1949-53 V8        3.00

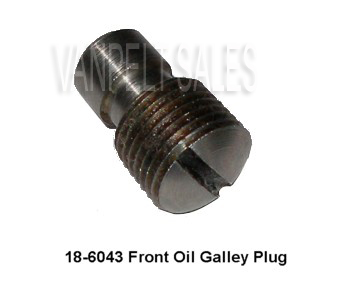

 18-6043 Plug (front) - Steel with straight slot - restrictor type PIC 1932-48 V8        6.00


Miscellaneous Engine Gaskets

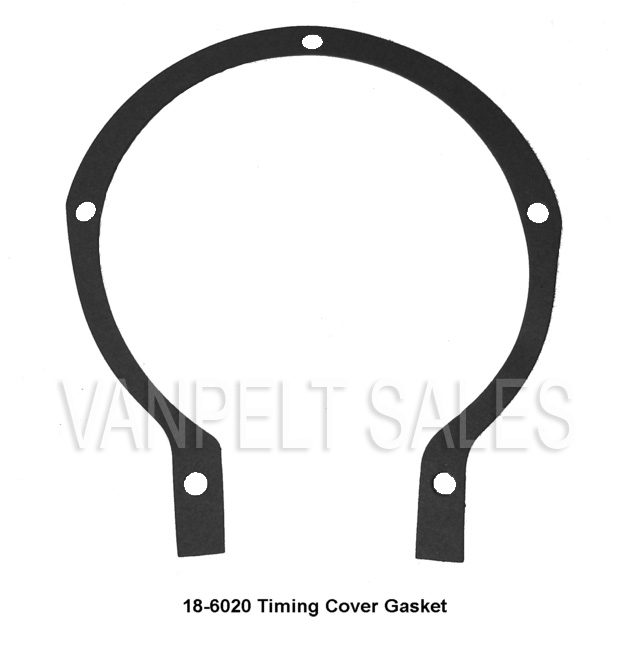

 18-6020 Timing Cover Gasket (85-100hp V8) - Note: B-6700 rope seal sold separately PIC 1932-53 V8        $  5.00
 52-6020 Timing Cover Gasket (60hp V8) PIC 1937-40 V8-60 11.00
B8A-6020 Timing Cover Gasket Set - Y Block V8 all sizes (7 pcs) PIC 1954-62 V8 (239-272-292-312 V8) 22.00

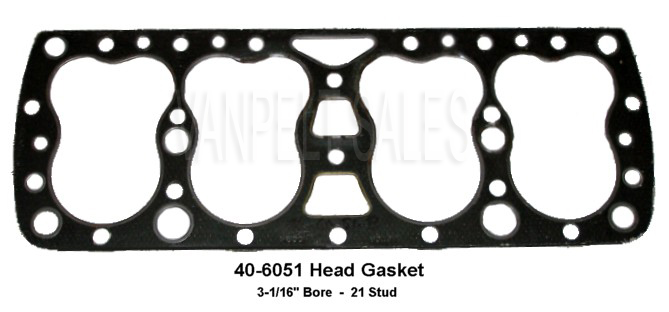

 40-6051 Head Gasket - 21 stud - Regular                        each PIC 3-1/16" bore (1932-37 V8) 49.00

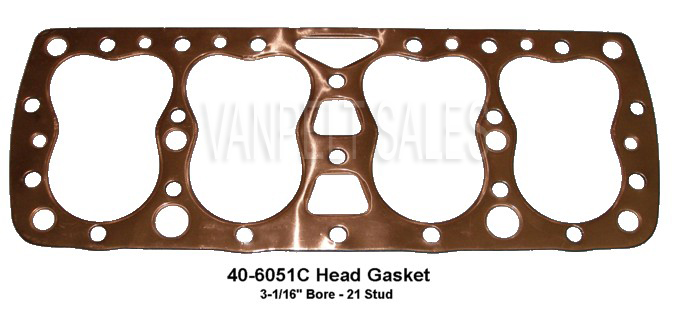

 40-6051-C Head Gasket - 21 stud - Copper Clad                 each PIC 3-1/16" bore (1932-37 V8) 69.00

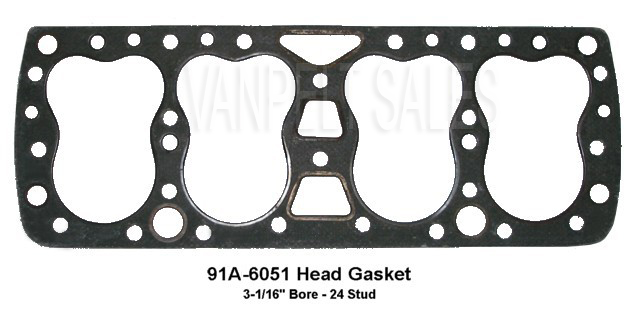

 91A-6051 Head Gasket - 24 stud - Regular                       each PIC 3-1/16" bore (1938-42 V8)      47.00
 91A-6051-C Head Gasket - 24 stud - Copper Clad                 each PIC 3-1/16" bore (1938-42 V8)      77.00

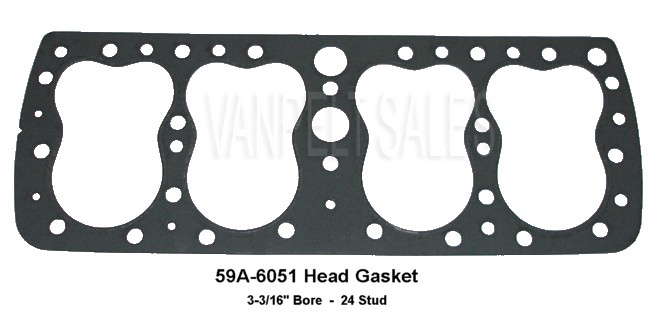

 59A-6051 Head Gasket - 24 stud - Regular                       each PIC 3-3/16" bore (1946-48 V8)      49.00

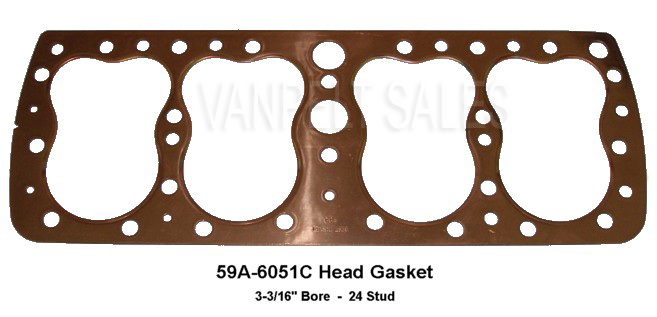

 59A-6051-C Head Gasket - 24 stud - Copper Clad                 each PIC 3-3/16" bore (1946-48 V8)      73.00
 59A-6051-BB Head Gasket - 24 stud - Regular - Big Bore                       each PIC 3-3/16" big bore (1946-48 V8) 62.00
 59A-6051-BBC Head Gasket - 24 stud - Copper Clad - Big Bore              each PIC 3-3/16" big bore (1946-48 V8) 79.00

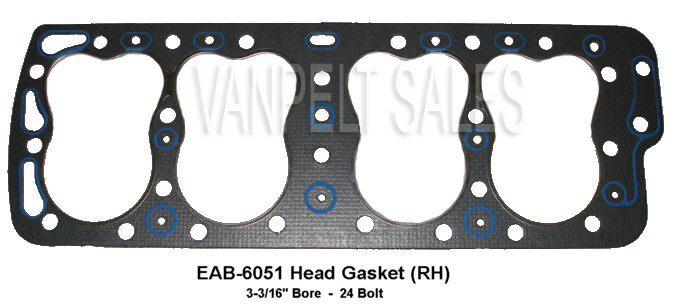

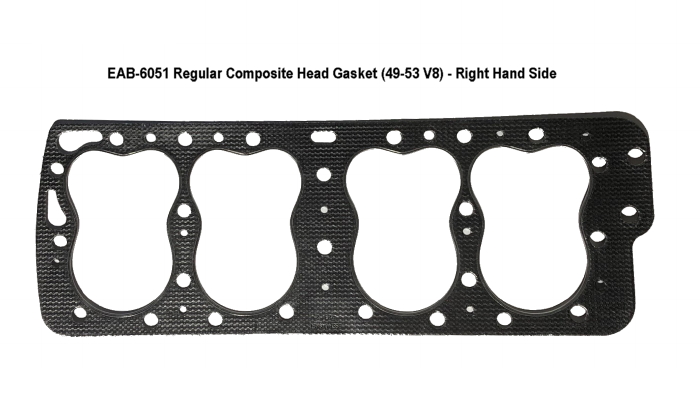

 EAB-6051 Head Gasket - 24 stud - Regular - RH                each PIC 3-3/16" bore (1949-53 V8)      45.00
 EAB-6051-X Head Gasket - 24 stud - Regular - RH -  aftermarket             each PIC 3-3/16" bore (1949-53 V8) 28.00

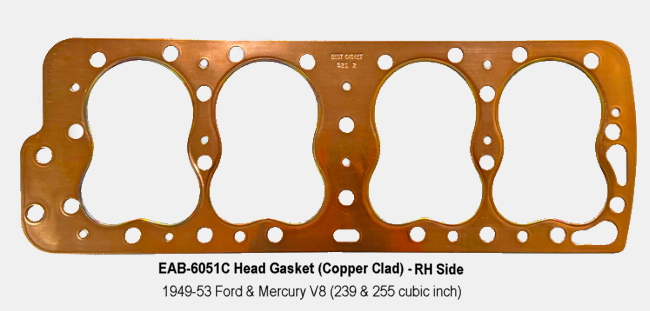

 EAB-6051-C Head Gasket - 24 stud - Copper Clad - RH          each PIC 3-3/16" bore (1949-53 V8)      74.00
 EAB-6051-BB Head Gasket - 24 stud - Regular - RH  (big bore)  each PIC 1949-53 V8 big bore (.100" +)      59.00
 EAB-6051-BBC Head Gasket - 24 stud - Copper Clad - RH  (big bore)  each   1949-53 V8 big bore (.100" +) 79.00

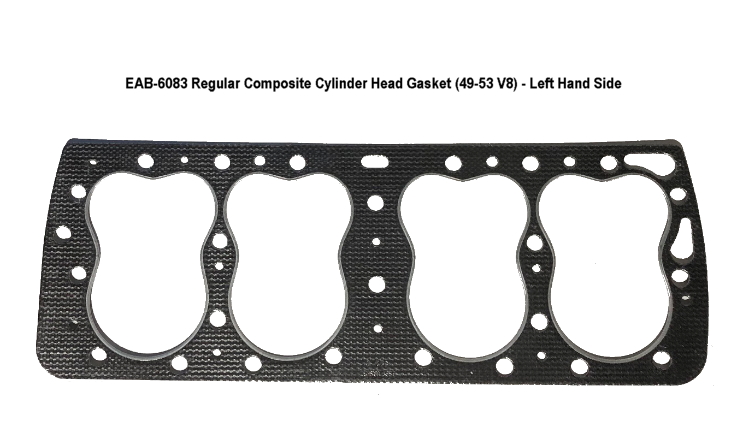

 EAB-6083 Head Gasket - 24 stud - Regular - LH                 each PIC 3-3/16" bore (1949-53 V8)      45.00
 EAB-6083-X Head Gasket - 24 stud - Regular - LH -  aftermarket             each PIC 3-3/16" bore (1949-53 V8) 28.00

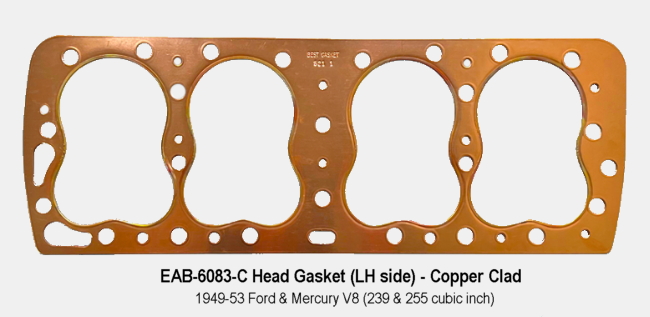

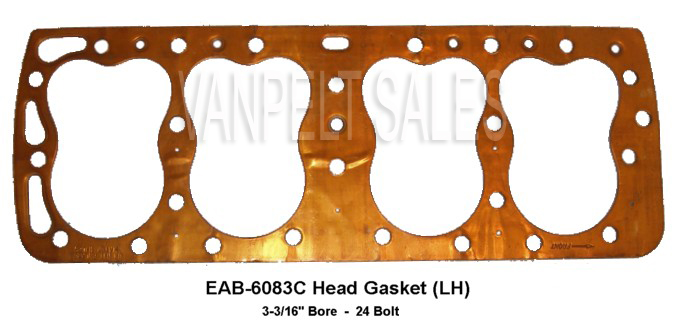

 EAB-6083-C Head Gasket - 24 stud - Copper Clad - LH          each PIC 3-3/16" bore (1949-53 V8)      74.00
 EAB-6083-BB Head Gasket - 24 stud - Regular - LH  (big bore)  each PIC 1949-53 V8 big bore (.100" +)      59.00
 EAB-6083-BBC Head Gasket - 24 stud - Copper Clad - LH  (big bore)  each PIC 1949-53 V8 big bore (.100" +)      79.00
 52-6051 Head Gasket - 17 stud - Regular                       each PIC 2.60" bore (1937-40 V8-60)      59.00
 1GA-6051 Head Gasket - G Series Six (steel clad) - Only sold in 1GA-6008 engine gasket set PIC 1941-47 Six -----
 7HA-6051 Head Gasket - H Series Six PIC 1947-51 Six      95.00

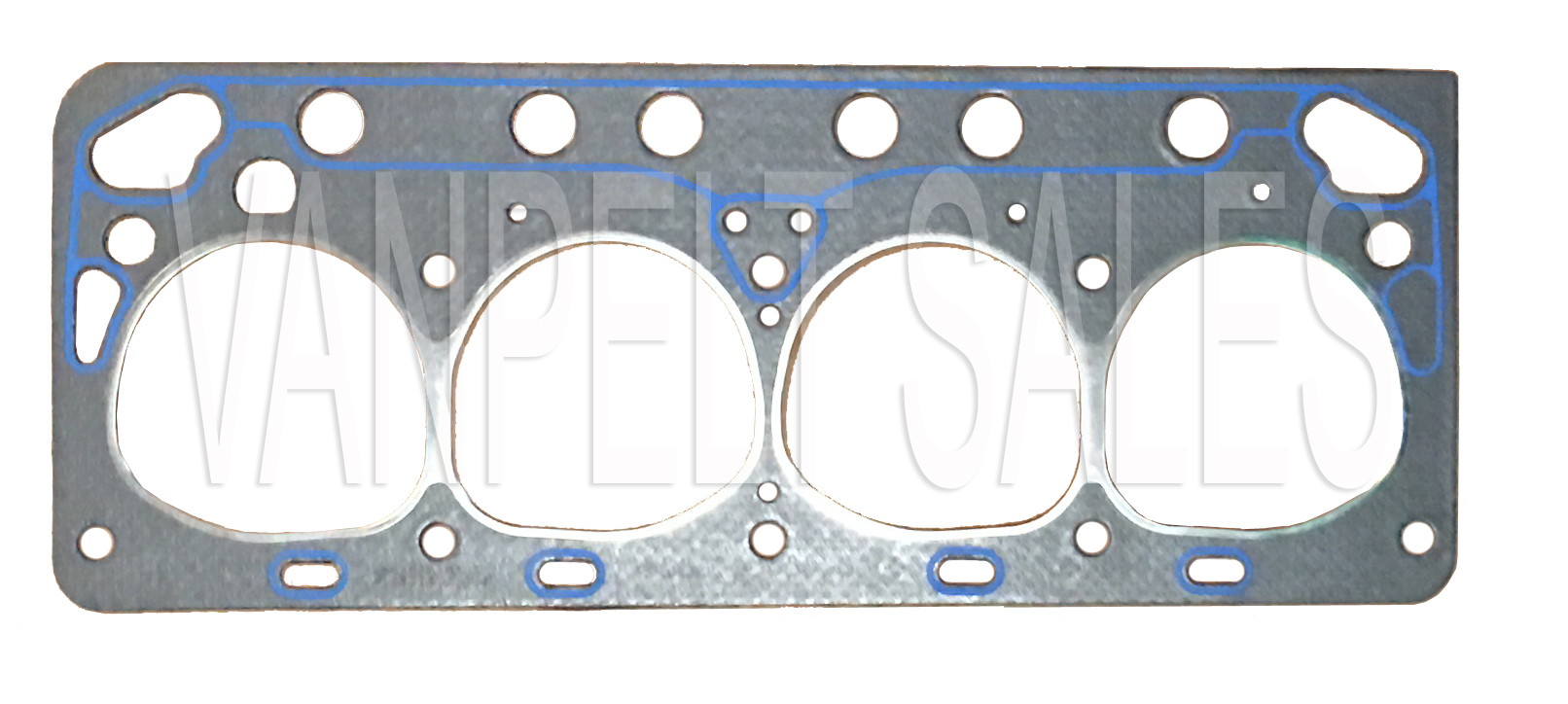

C1AZ-6051-B Head Gasket - Y Block V8 (equivalent to B6A-6051A + B7A-6051A + C1AE-6051B + C1AZ-6051B)
This gasket is the composite type with steel reinforcing at the cylinder bores.
PIC 1955-62 V8 (272-292-312 V8) 49.00
C1AZ-6051-BX Head Gasket - Y Block V8 (equivalent to B6A-6051A + B7A-6051A + C1AE-6051B + C1AZ-6051B)
This gasket is the composite type with steel reinforcing at the cylinder bores - (Aftermarket gasket)
PIC 1955-62 V8 (272-292-312 V8) 29.00
B4AZ-6A506-A Rocker Cover Gasket Set (6 pcs) - Y block V8 all sizes PIC 1954-59 V8 (239-272-292-312 V8) 18.50

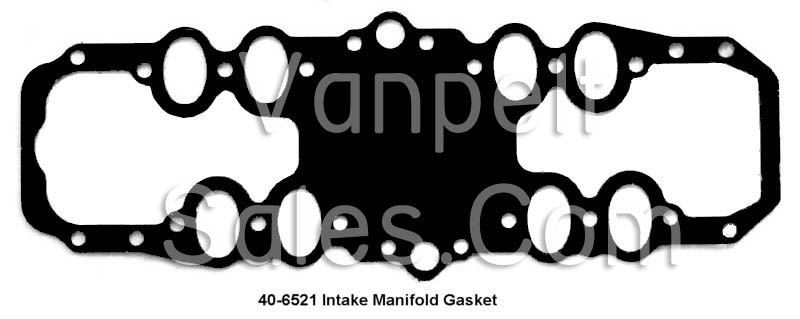

 40-6521-B Intake Manifold Gasket PIC 1932-48 V8  (flathead)      15.00
 40-6521-BP Intake Manifold Gasket - Big Port PIC 1932-48 V8  (flathead) 17.00

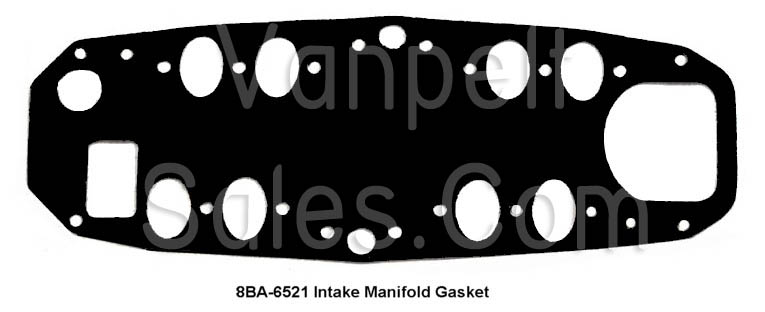

 8BA-6521 Intake Manifold Gasket PIC 1949-53 V8  (flathead)      15.00
 8BA-6521-BP Intake Manifold Gasket - Big Port PIC 1949-53 V8  (flathead)      16.00

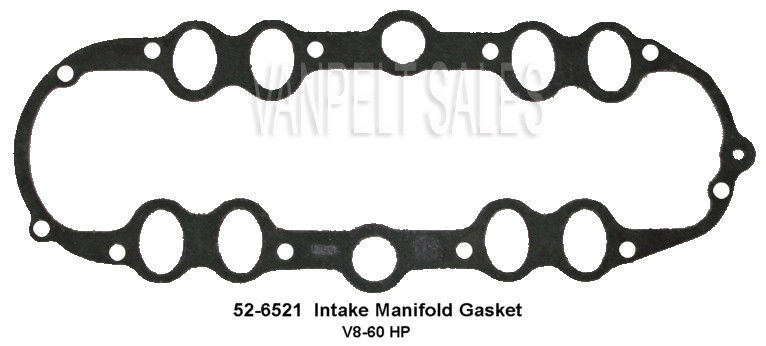

 52-6521 Intake Manifold Gasket PIC 1937-40 V8-60 (flathead)   22.00
 8EL-6521 Intake Manifold Gasket PIC 1949-51 V8 (337 flathead) 29.50
C0AE-6521-A Valve Chamber Cover Gasket Set (3 pc) - Y block V8 all sizes PIC 1954-62 V8 (239-272-292-312 V8) 12.50
C0AZ-6710 Oil Pan Gasket - Y block V8 all sizes PIC 1954-62 V8 (239-272-292-312 V8) 19.50
 18-6781 Oil Pan Gasket Set (with lower rope seals) PIC 1932-34 V8      25.00

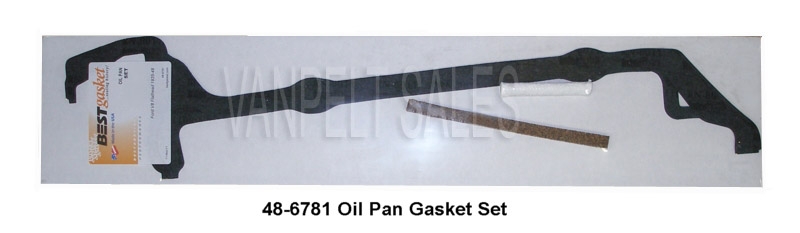

 48-6781 Oil Pan Gasket Set (with lower rope seals) PIC 1935-48 V8      19.50

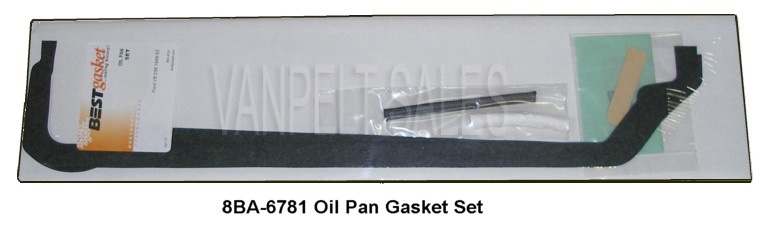

 8BA-6781 Oil Pan Gasket Set (with lower rope seals) PIC 1949-53 V8      22.00
 52-6781 Oil Pan Gasket Set (with lower rope seals) PIC 1937-39 V8-60      33.00
022A-6781 Oil Pan Gasket Set (with lower rope seals) PIC 1940 V8-60 33.00
1GA-6781 Oil Pan Gasket Set (with lower rope seals) PIC 1941-47 Six G series 37.00
7HA-6781 Oil Pan Gasket Set (with lower rope seals) PIC 1948-51 Six H series 37.00
 52-9433-S Exhaust Manifold Gasket Set (8 pcs) PIC 1937-40 V8-60 22.00

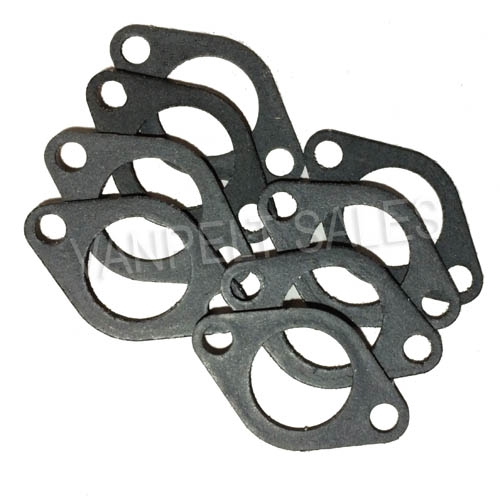

 18-9433-S Exhaust Manifold Gasket Set (8 pcs) PIC 1932-53 V8      10.00
 7HA-9433-S Exhaust Manifold Gasket Set (3 pcs) PIC 1948-51 Six H series 16.00
 1GA-9450 Exhaust Manifold Flange Gasket PIC 1949-59 V8 and Six        6.00
Note: Numerous engine gaskets are available separately and may be listed with other parts categories. Contact us for price and availability on gaskets not priced here.


Engine Stud & Bolt Kits for Cylinder Heads

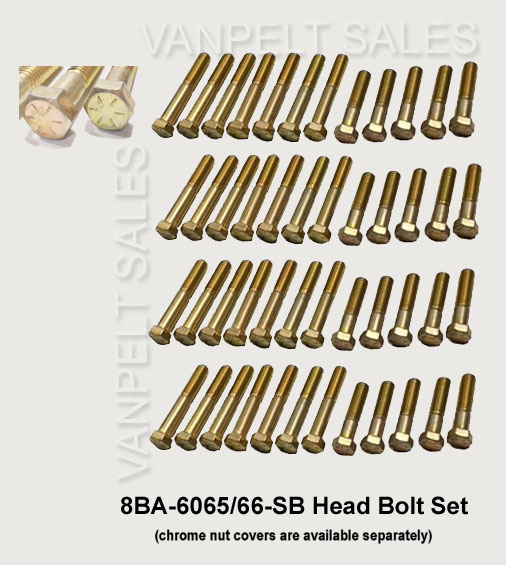

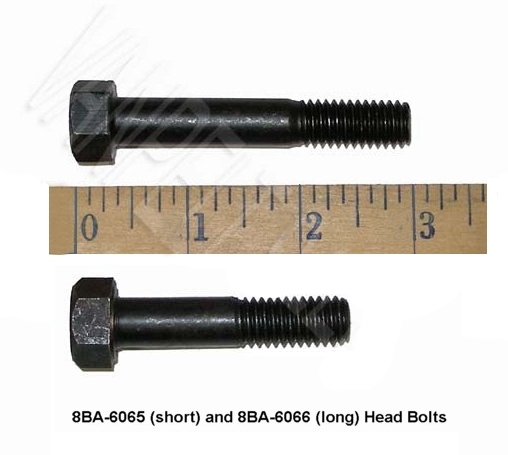

8BA-6065/66-SA Set of 48 Bolts - Stock Heads - (20 short + 28 long) - 11/16 " hex head PIC 1949-53 V8 $105.00
8BA-6066-Set Set of 33 Bolts - Stock Heads - 7/16"-14 x 2.62" long - 11/16 " hex head PIC 1948-51 Six H series     75.00
8BA-6065 or 66 Bolt only - Specify the 6065 (1.94" L)   or 6066 (2.62"L)  -  Sold each: PIC 1949-53 V8 2.60

Note: Chrome nut/bolt covers are available. See listings below.

48-SWN-Kit Set of 48 Studs/Nuts/Washers - Extra length for Alum Heads PIC 1938-48 V8 Call for Price
M-90-04-L Set of 48 Studs only - Extra length for aluminum aftermarket heads PIC 1938-48 V8   149.00

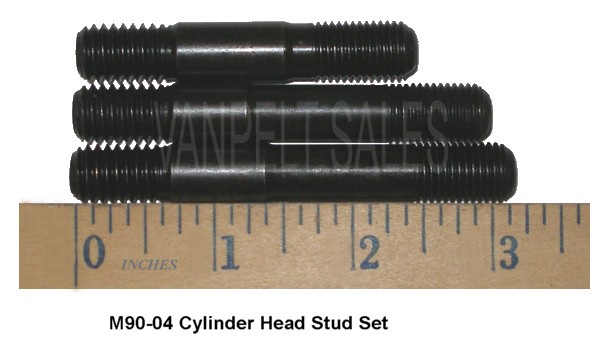

M-90-04 Set of 48 Studs only (3 lengths) - for stock Cast Iron 24 stud Heads PIC 1938-48 V8   149.00
M-90-03 Set of 42 Studs only (3 lengths) - for stock Cast Iron 21 stud Heads PIC 1937-38 V8   135.00
M-90-02 Set of 42 Studs only (3 lengths) - for stock Cast Iron 21 stud Heads PIC 1932-36 V8   135.00
M-90 Stud Single stud sold individually - Specify length (2.45" or 3.01" or 3.20" or 3.70")     Each: PIC 1932-48 V8      3.60
R-95-03 Set of 34 Studs only (2 lengths) - for stock 60hp heads PIC 1937-40 V8-60    Out of Stock
R-95-Stud Single long stud sold individually   (2.74" long)  PIC 1937-40 V8-60 Out of Stock

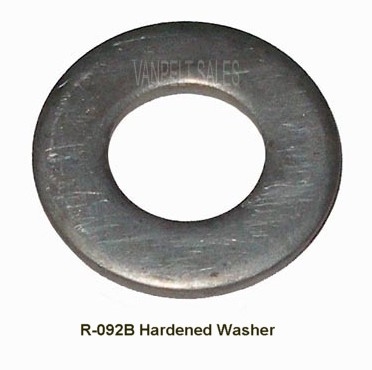

R-092-BS1 Set of 48 Hardened Steel Washers PIC 1938-48 V8 Out of Stock
R-092-BS2 Set of 42 Hardened Steel Washers PIC 1938-48 V8 Out of Stock
R-260 Set of 34 Hardened Steel Washers for 60hp heads PIC 1937-40 V8-60 Out of Stock

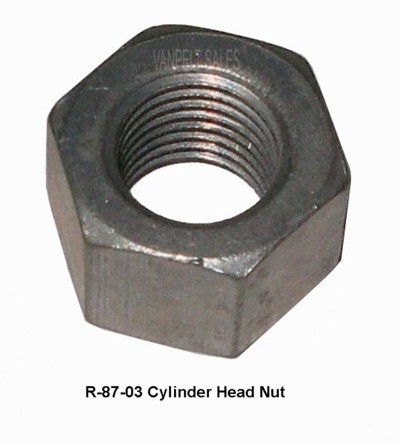

R-87-03S Set of 48 Cad Plated Cylinder Head Nuts (for 24 stud motors) PIC 1938-48 V8     45.00
R-87-02S Set of 42 Cad Plated Cylinder Head Nuts (for 21 stud motors) PIC 1932-38 V8     39.00
R-619 Set of 34 Cylinder Head Nuts (for V8-60 motors) PIC 1937-40 V8-60 Out of Stock

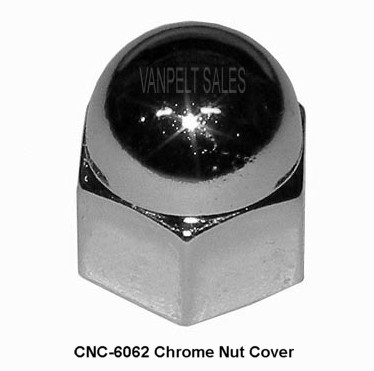

CNC-6062-AS Set of 48 Chrome Plated Head Nut Covers (for 85-100hp head nuts - 11/16" hex) PIC 1932-48 V8     39.00
CNC-6062-BS Set of 20 Chrome Plated Head Nut Covers (for 85-100hp intake manif. bolts - 9/16") PIC 1932-48 V8    19.00
  Note: the 6062-B chrome nut covers can also be used on the V8-60 cylinder head nuts (34 required). Order two sets of the CNC-6062-BS.
Note: Extended length studs are for aftermarket aluminum heads, which require the hardened steel washers under the cylinder head nuts.

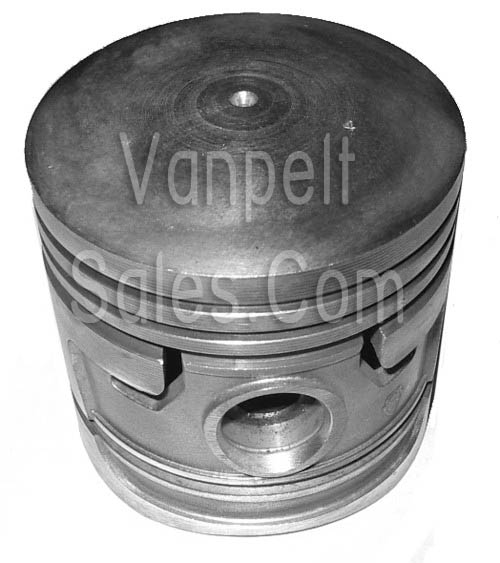

V8 Engine Pistons  with Pins and Clips


 52-6108S Set of 8 Pistons (2.600") - (Dome top) - Specify bore size PIC 1937-40 Call for Pricing
Note: 52- pistons are for the Ford V8-60hp motor. Sizes Available: Standard, .020, .030, .040, .060, and .080" oversize
Note: All 52-6108 piston sets are non-stock parts and considered special order only. These are not returnable for credit. Check your block carefully before you order.
 40-6108S Set of 8 Pistons (3.0625") - (Flat top) - Specify bore size PIC 1932-36 Call for Pricing
Note: 40- pistons are for the early 3-1/16" Ford motor with the 3.75"" stroke crankshaft. Sizes Available: Standard, .020, .030, .040, .060, and .080" oversize
Note: All 40-6108 piston sets are non-stock parts and considered special order only. These are not returnable for credit. Check your block carefully before you order.
 01T-6108S Set of 8 Pistons (3.0625") - (Dome top) - Specify bore size PIC 1934-42 Call for Pricing
Note: 01T pistons are for the 3-1/16" Ford motor with the 3.75"" stroke crankshaft. Sizes Available: Standard, .020, .030, .040, .060, and .080" oversize
Note: All 01T-6108 piston sets are non-stock parts and considered special order only. These are not returnable for credit. Check your block carefully before you order.

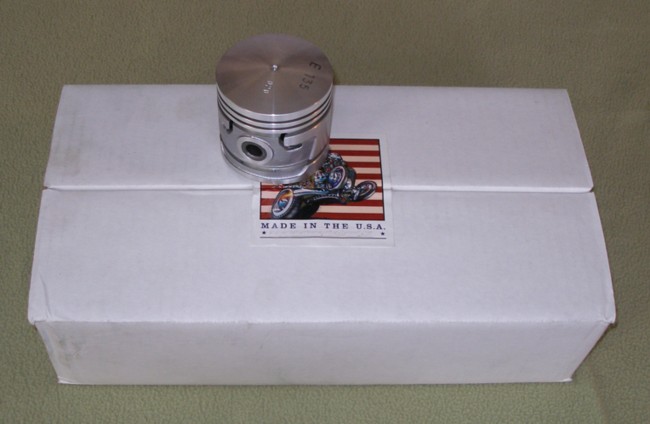

 8BA-6108S Set of 8 Pistons (3.1875") - (Dome top) - Specify bore size PIC 1939-53 $ 359.00
Note: 8BA pistons are for the 3-3/16" Ford motor with the 3.75"" stroke crankshaft. Sizes Available: Standard, .030, .040, .060, .080, and .125" oversize
 EAC-6108S Set of 8 Pistons (3.1875") - (Dome top) - Specify bore size PIC 1949-53 $ 469.00
Note: EAC pistons are for the 3-3/16" Mercury motor with the 4" stroke crankshaft. Sizes Available: Standard, .030, .040, .060, .080, and .125" oversize

**** IMPORTANT ORDERING NOTE FOR PISTON ORDERS ****

Special Order pistons are NOT returnable for any reason. Any defects in the product will be covered if we are notified within 60 days of the invoice. Regular order piston sets are subject to limits to their return or exchange. Within 60 days of your invoice date, we will accept piston sets back for return subject to the regular return policy stated in our Terms and Conditions. In addition, all piston sets will NOT be accepted for return if the original carton and its seal are broken, or if the carton is smudged with grease or otherwise in a damaged condition. Please check your block carefully for the final bore size before ordering pistons and rings. Do not open the sealed carton until you are ready to use the set. We only stock pistons in complete sets, and do not sell individual pistons. Piston pins and retaining clips are included with all sets. Confirm your engine stroke before ordering.


V8 Engine Piston - Miscellaneous


78-6140 Wrist Pin Retaining Clip   (0.041" wire size x 0.925" free diameter)    Each: PIC 1939-53 $ 0.75
Note: clips are for Ford 85-100hp type pistons. Check groove size carefully before ordering. Some aftermarket pistons (including Egge) use a heavier wire gauge clip.

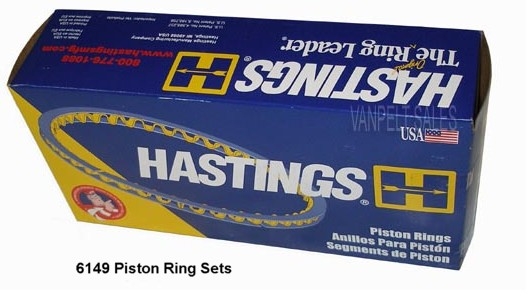

Engine Piston Ring Sets


 01T-6149S Set of 8 Four Ring sets - 3-1/16" (3.0625") - Specify bore size PIC 1932-42 Check Availability
Note: 01T rings are for use only with 40 (flat top) or 01T (dome top) original type pistons with 5/32" oil ring grooves.
 29A-6149S Set of 8 Four Ring sets - 3-3/16" (3.1875") - Specify bore size (020 & 030) PIC 1939-48 Check Availability
Note: 29A rings above are for use only with 09T or 49T or 29T original type pistons with 5/32" oil ring grooves. Do not use with 8BA type pistons.
 8BA-6149S Set of 8 Four Ring sets - 3-3/16"  (3.1875") - Specify bore size PIC 1939-53 $  82.00
NOTE: 8BA rings above must be used with 8BA or EAC pistons when fitting in 1939-48 motors. The 8BA and EAC type pistons have 3/16" wide oil ring grooves. Some 39-48 motors were rebuilt using 8BA type pistons. Check oil ring groove carefully when ordering rings for existing pistons. The 0.020" and 0.100" sizes are not offered anymore.
 ECB-6149S Set of 8 Three Ring sets for 272 Y-Block (3.625") - Specify bore size PIC 1955-57 $ 55.00
Note: ECB rings are for the 272 cu in Y-Block V8. Sizes Available: Standard, .020, .030, .040, and .060" oversize
 ECK-6149S Set of 8 Three Ring sets for 292 Y-Block (3.750") - Specify bore size PIC 1955-64 $ 55.00
Note: ECK rings are for the 292 cu in Y-Block V8. Sizes Available: Standard, .020, .030, .040, and .060" oversize
 B6A-6149S Set of 8 Three Ring sets for 312 Y-Block (3.800") - Specify bore size PIC 1956-57 $ 55.00
Note: B6A rings are for the 312 cu in Y-Block V8. Sizes Available: Standard, .020, .030, .040, and .060" oversize - check availability on your size
 7HA-6149S Set of 6 Four Ring sets for 226 Six  (3.300") - Specify bore size PIC 1949-51 $ 82.00

Note: 7HA rings are for the 226 cu in flathead six. Sizes Available: Standard, .020, .030, .040, and .060" oversize

Engine Parts Page 1 - Page 2 - Page 3 - Page 4

Please Note:
Prices are subject to change without notice and will be those in effect at the time of order

 We strive to keep this web page up-to-date, but suppliers often do not give us advance notice before changing pricing to us. Please confirm your pricing when placing an order. The New Parts listed here are primarily replacement parts from limited supplies of new-old-stock or new-old-replacement-stock; or new reproduction parts. The Ford part numbers listed are for identification purposes only, and do NOT represent or imply that the parts offered are genuine Ford service parts. Our minimum order for product is $10.00 and the minimum shipping charge is $10.00. All prices listed below are in US Dollars.

To place an order, call 1-513-724-9486. Office hours are Monday-Thursday from 9:00am to 5:00pm Eastern Time. You may also use the online store to make purchases if within the USA. Not all parts are listed on the store yet so check with our sales office if you do not see an item in the online store.

Please Note: All international packages require completion of the Customs Declaration Form, and will be charged a $10.00 documentation fee.
