Drawings: Flathead Electrical

Wiring Diagrams
(showing the actual path of wiring)

• Wiring diagram for 1932 Ford

• Wiring diagram for 1933/34 Ford

• Wiring diagram for 1936 Ford

• Wiring diagram for 1937 Ford

• Wiring diagram for 1938/39 Ford

• Wiring diagram for 1940 Ford

• Wiring diagram for 1941 Ford

• Wiring diagram for 1942 Ford

• Wiring diagram for 1946-48 Ford

• Wiring diagram for 1949 Ford

• Wiring diagram for 1950 Ford

• Wiring diagram for 1951 Ford

• Wiring diagram for 1952-54 Ford (6)

• Wiring diagram for 1952-54 Ford (8)

• Wiring diagram for 1949-51 Ford OD

• Wiring diagram for 1948-50 Truck

• Wiring diagram for 1948-50 COE Truck

• Wiring diagram for 1951 Truck

• Wiring diagram for 1951 COE Truck

• Wiring diagram for 1953-55 Truck

Wiring Schematics - Mercury
(showing the electrical path and connections)

• Wiring for 1939 Mercury

• Wiring for 1940 Mercury

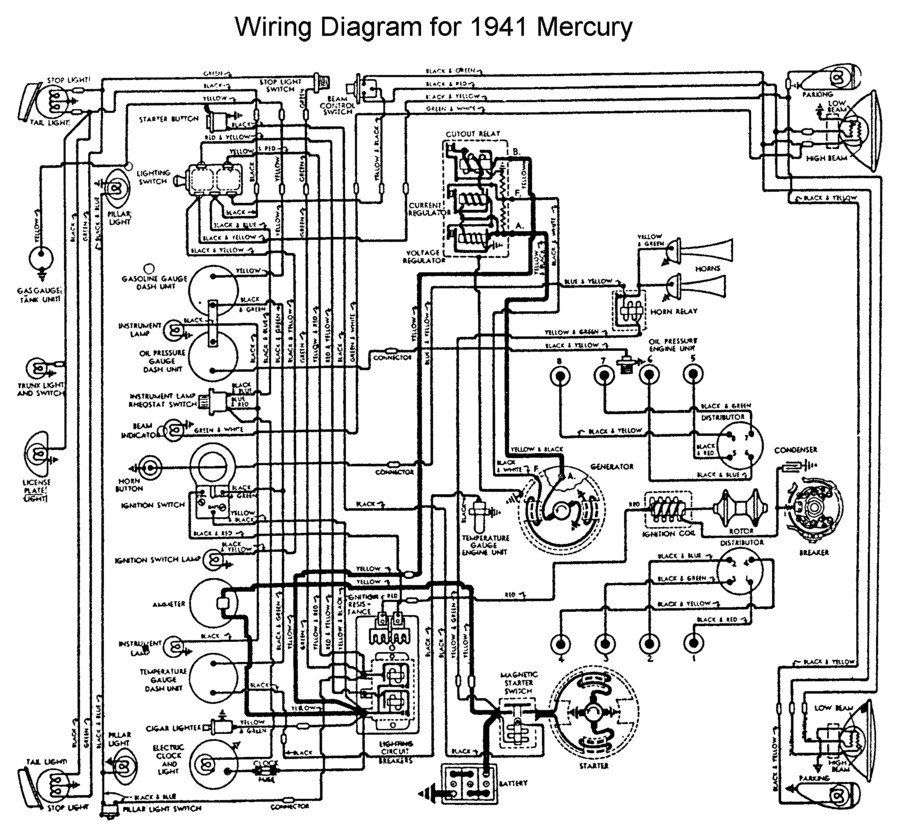

• Wiring for 1941 Mercury

• Wiring for 1942 Mercury

• Wiring for 1946 to 48 Mercury

Lamp Assemblies

• Headlamp for 1932 cars

• Headlamp for 1936 cars

• Headlamp for 1937-39 car & commercial

• Headlamp for 1940 cars

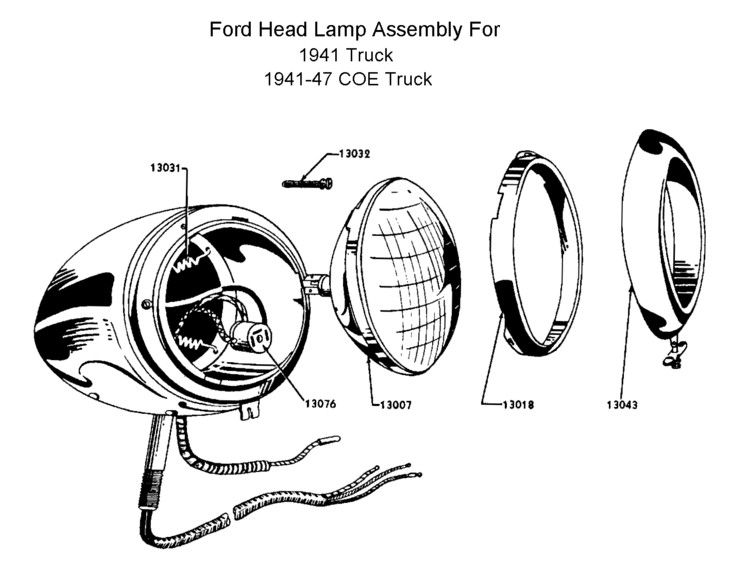

• Headlamp for 1941 truck & 41-47 COE

• Headlamp for 1941-47 car & commercial

• Headlamp for 1942-47 truck

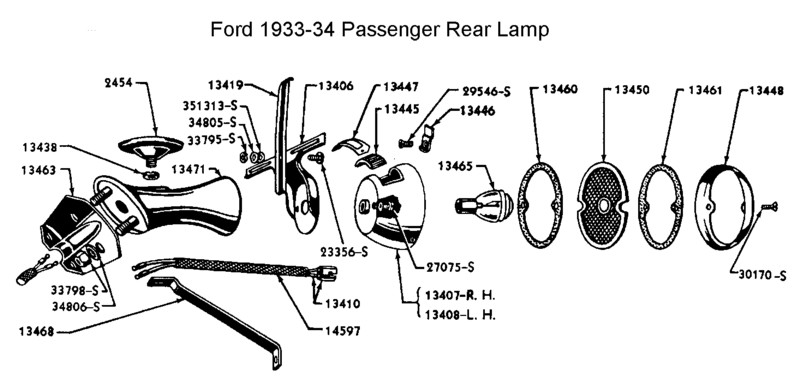

• Rear Lamp for 1933-34 car

• Rear Lamp for 1937 car

• Rear Lamp for 1938-39 car

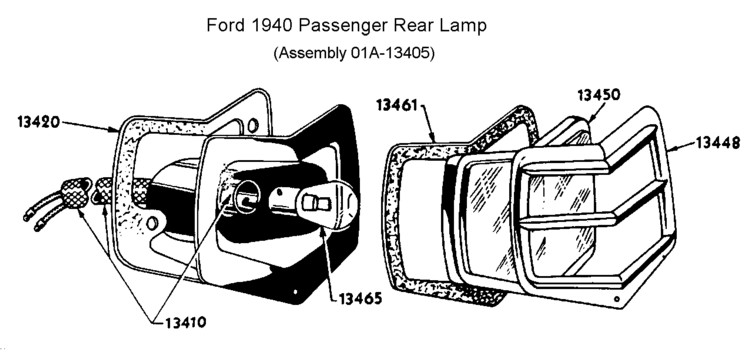

• Rear Lamp for 1940 car

• Rear Lamp for 1941 car

• Rear Lamp for 1942-47 car

• Trunk handle/deck light for 1939 car

• Trunk handle/deck light for 1940 car

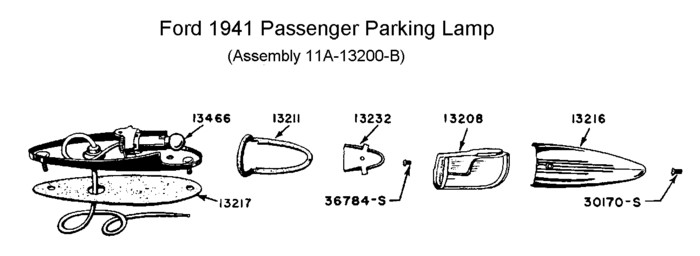

• Park Lamp for 1941 car

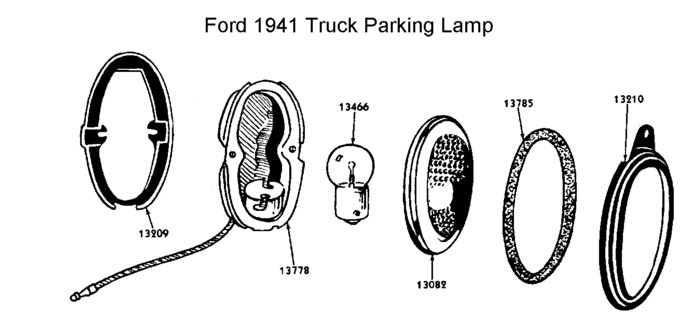

• Park Lamp for 1941 truck

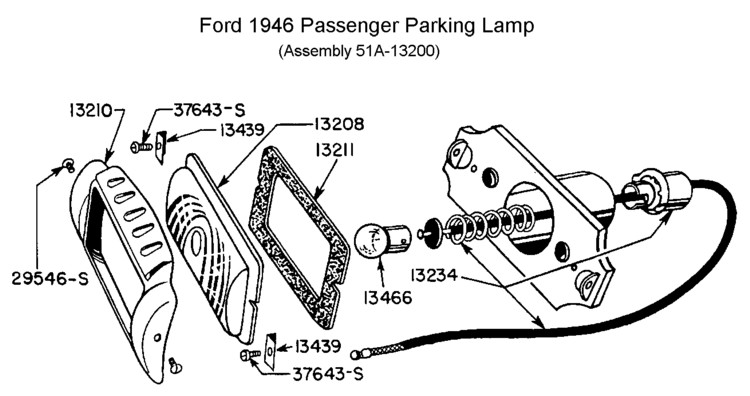

• Park Lamp for 1946 car

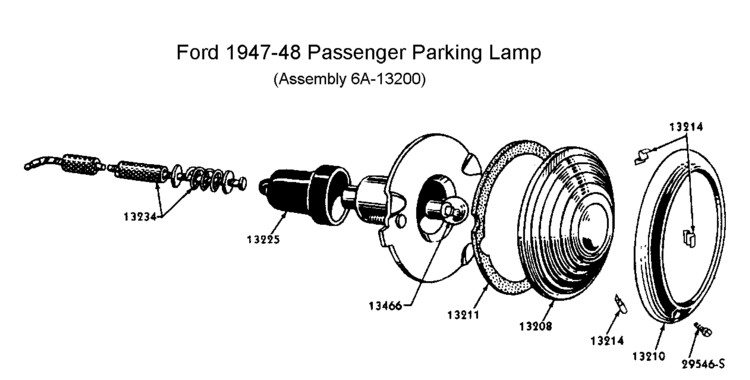

• Park Lamp for 1947-48 car

Wiring Schematics - Ford
(showing the electrical path and connections)

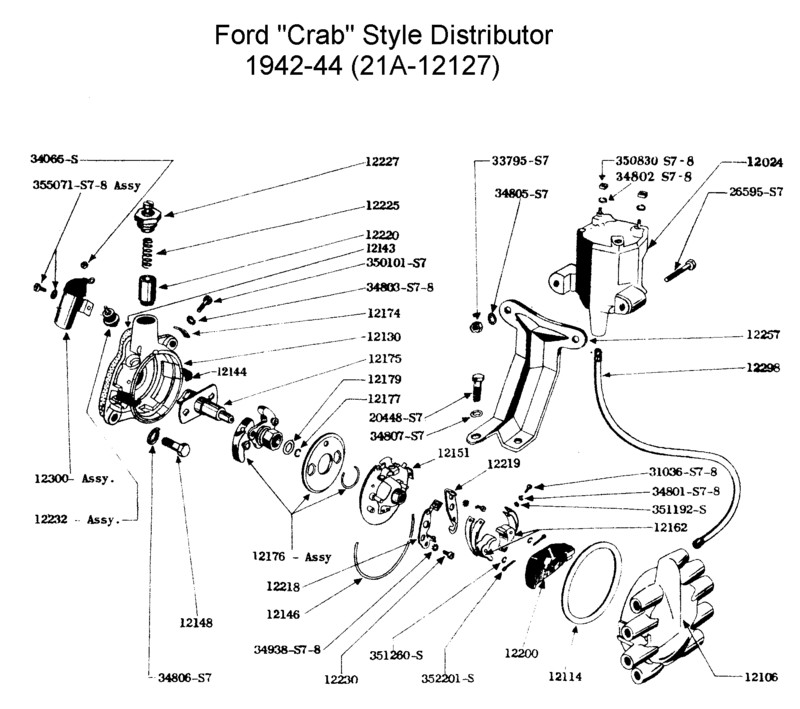

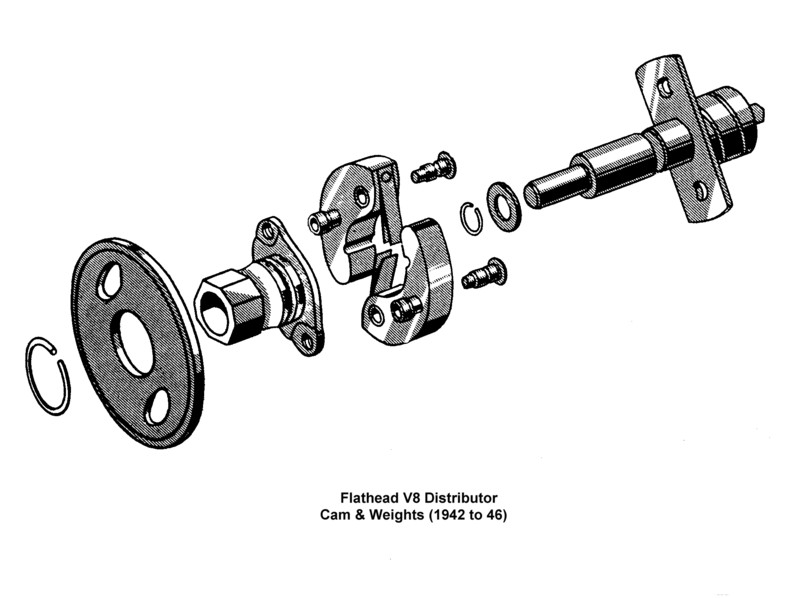

• Distributor-Plug wiring for 1946 to 1953


• Wiring for 1932 Ford Car

• Wiring for 1933 Ford Car

• Wiring for 1934 Ford Car

• Wiring for 1935 Ford Car

• Wiring for 1936 Ford Car

• Wiring for 1937 Ford Car

• Wiring for 1938 Ford Car

• Wiring for 1939 Standard Ford Car

• Wiring for 1939 Deluxe Ford Car

• Wiring for 1940 Standard Ford Car

• Wiring for 1940 Deluxe Ford Car

• Wiring for 1941 Ford Car

• Wiring for 1942 Ford Car

• Wiring for 1946 to 48 Ford Car

• Wiring for 1949-50 Ford Car

• Wiring for 1951 Ford Car

• Wiring for 1950-51 Mercury Car

• Wiring for 1941 to 42 Ford Trucks

• Wiring for 1946 to 47 Ford Trucks

• Wiring for 1948 to 49 Ford Trucks

• Wiring for 1949-54 Ford Car Overdrive

Starters & Generators

• Generator (3 brush type) for 1938 & 39

• Generator (2 brush type) for 1938 & 39

• Generator (2 brush type) for 1942 to 46

• Starter & Drive for 1932 to 37

• Starter & Drive for 1938 to 48

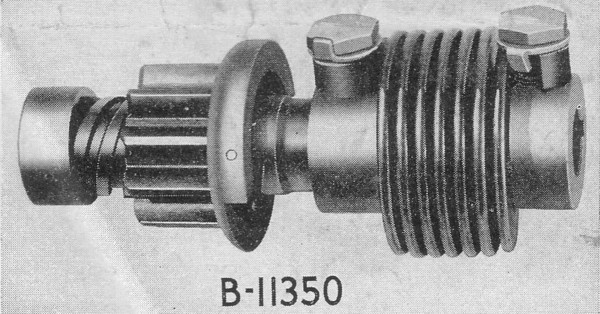

• Starter Drive Complete - 85hp

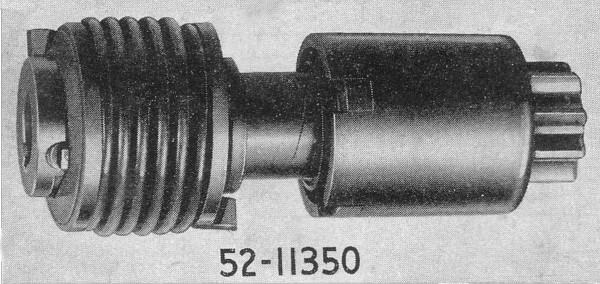

• Starter Drive Complete - 60hp

• Starter Drive Assembly - 85hp

• Starter Drive Assembly - 60hp

Ignition Wiring

• Spark Plug Wiring for 1932 to 41

• Spark Plug Wiring for 1942 to 45

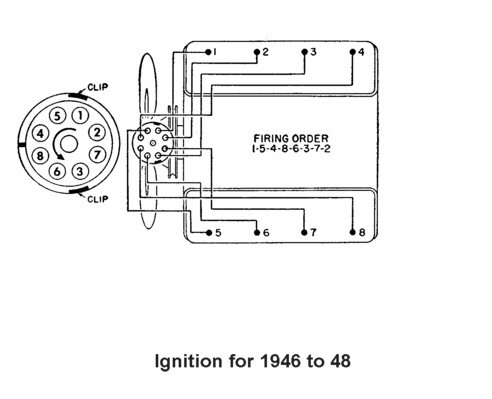

• Spark Plug Wiring for 1946 to 48

• Spark Plug Wiring for 1949 to 53
