Carburetors

• Stromberg two barrel for 1934 to 38

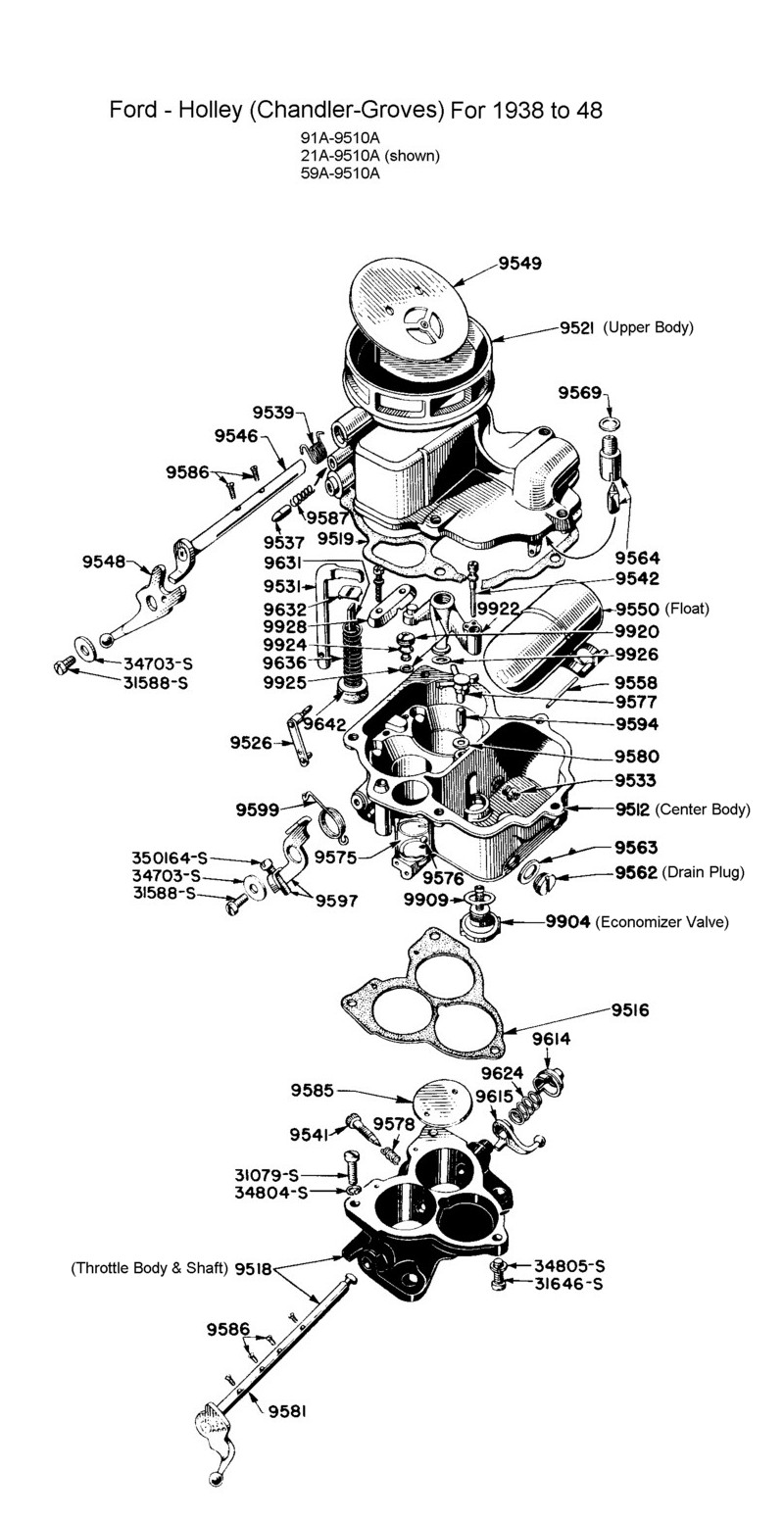

• Ford-Holley two barrel for 1938 to 48

• Ford-Holley two barrel cutaway for 1938 to 48

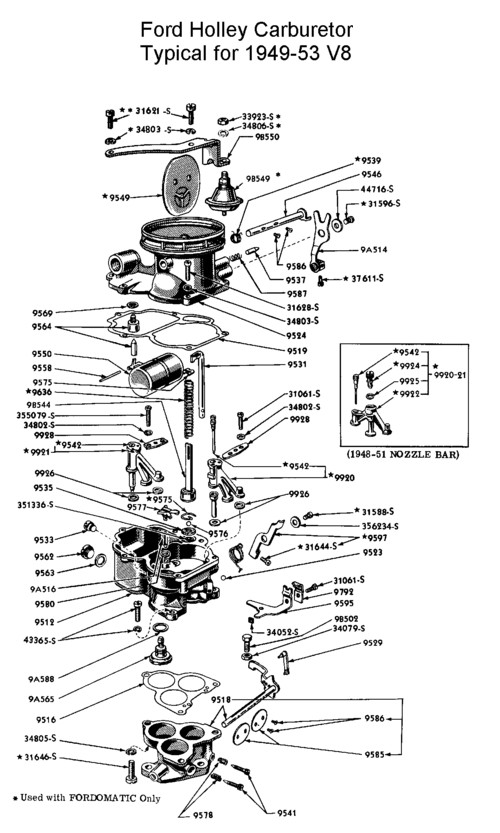

• Ford-Holley two barrel for 1949 to 53

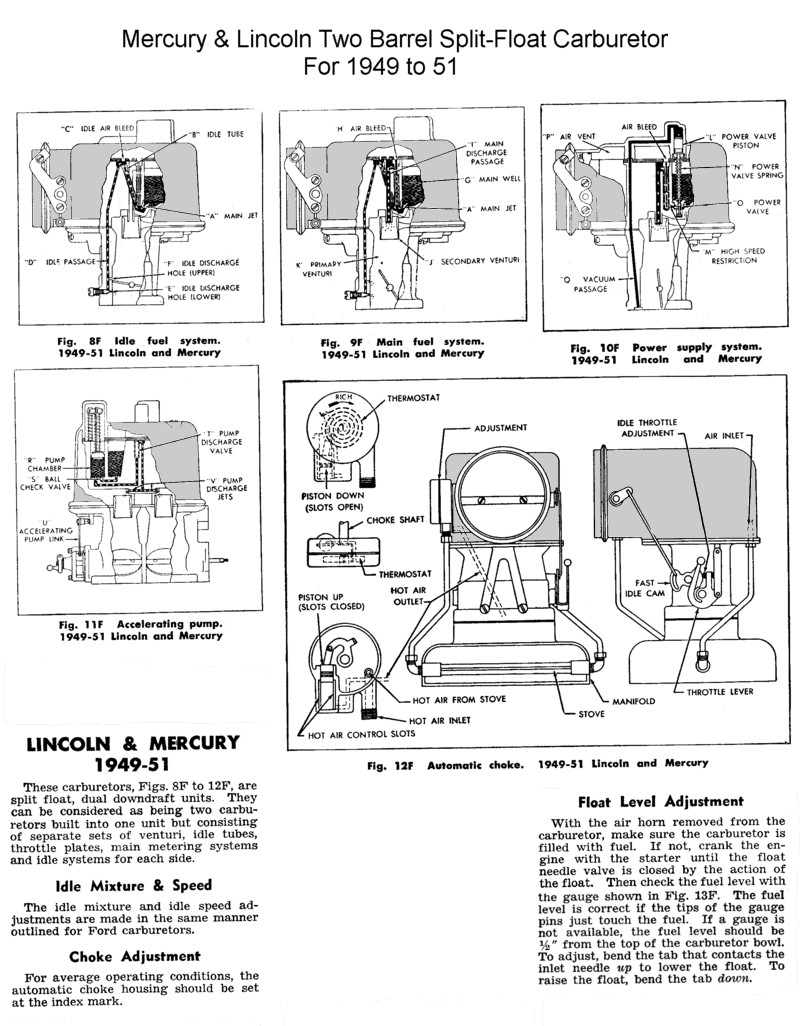

• Merc two barrel cutaway for 1949 to 51

• Holley Spec Brochure for 1934-52 Ford Carbs

• Holley Spec Brochure for 1952-53 Ford Carbs

• Troubleshooting the Stromberg carb

• Holley Service Manual for AA-1 type (94) carbs

Fuel Pumps

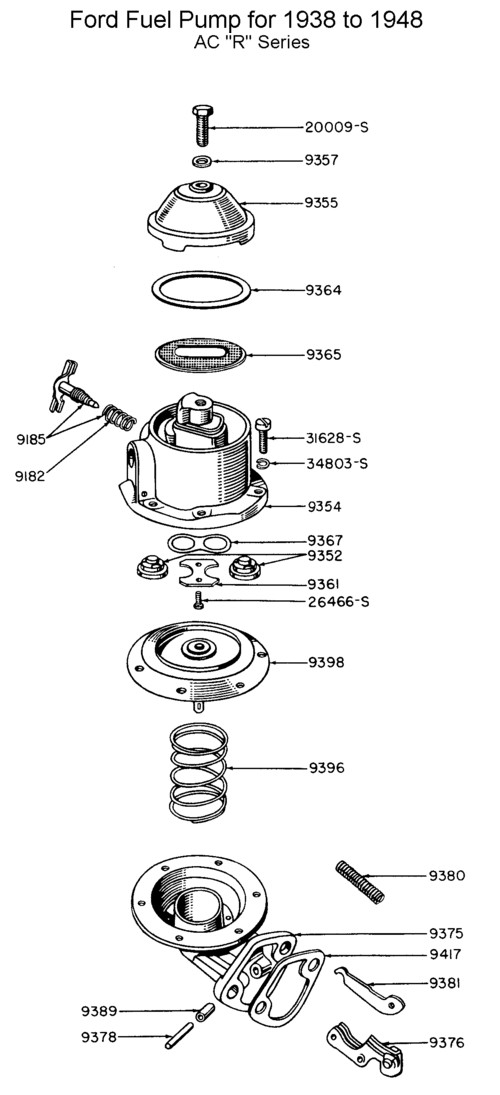

• Pump for 1938 to 48 AC "R" series

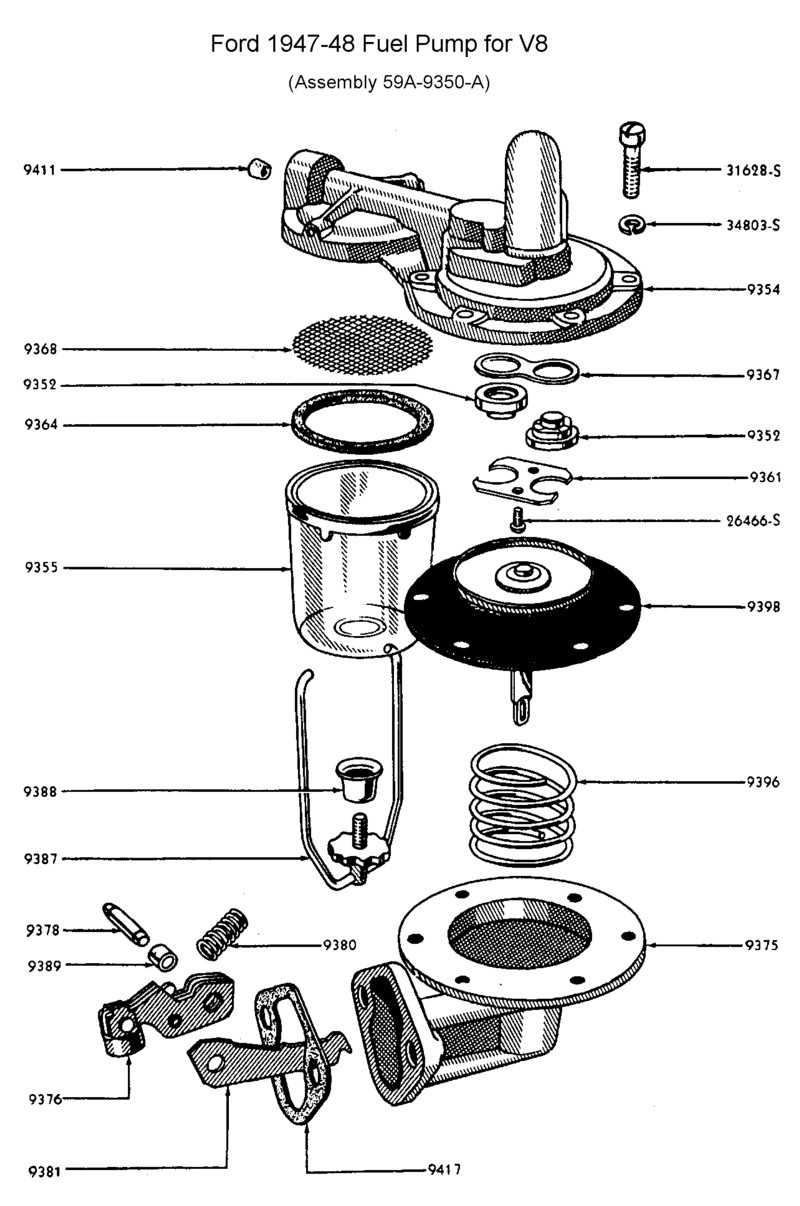

• Pump for 1947 to 48 (59A series)

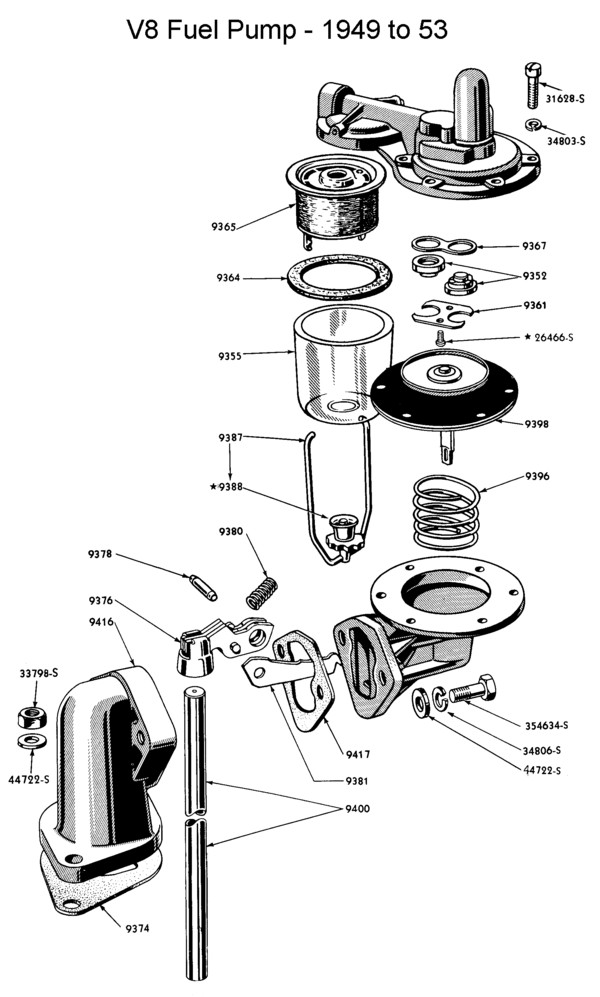

• Pump for 1949 to 53

Fuel Tanks & Lines

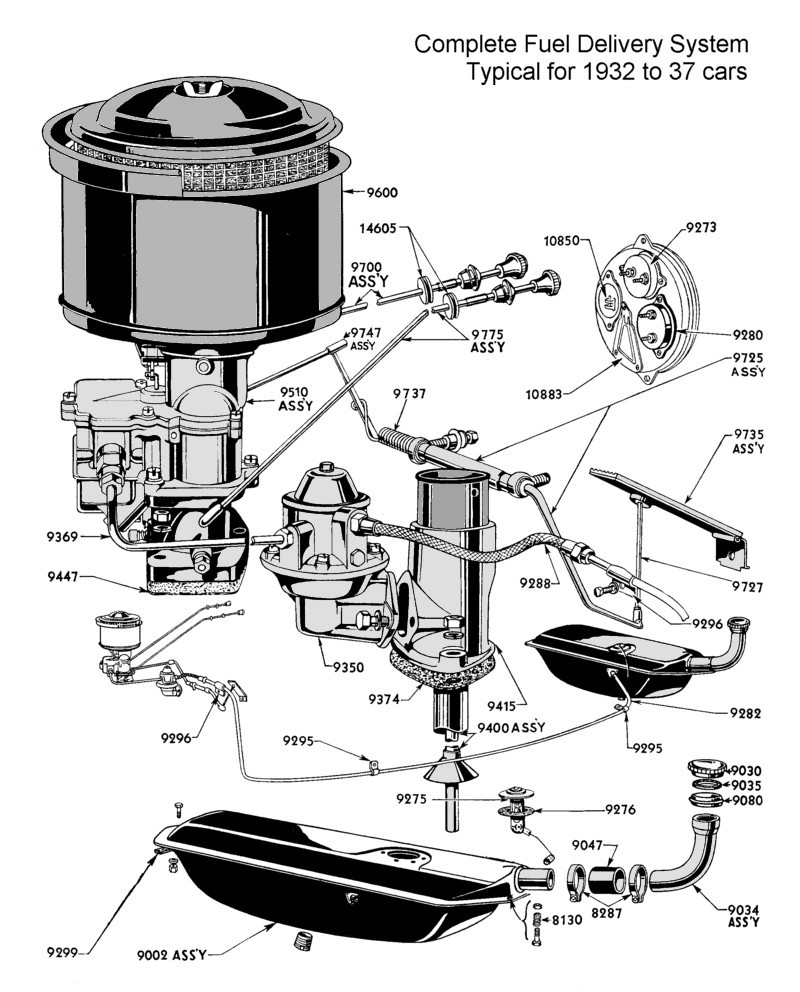

• Fuel System for 1932 to 37 passenger car

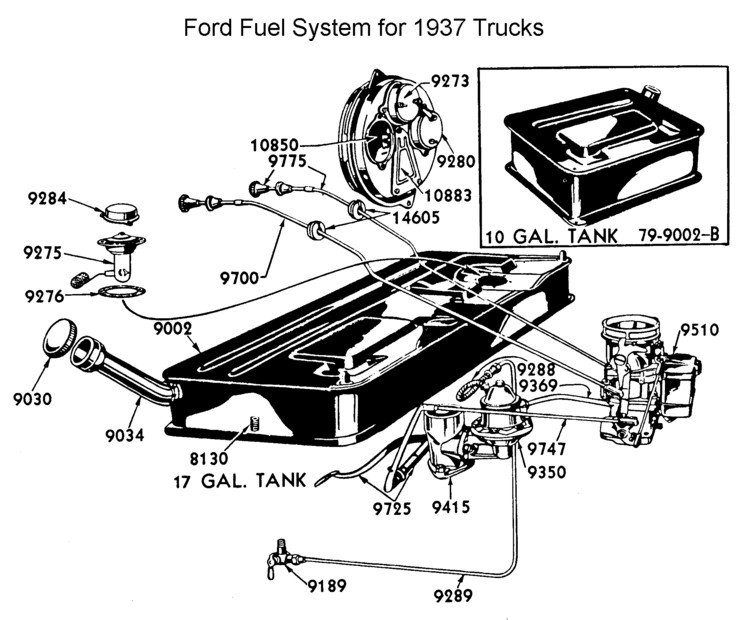

• Fuel System for 1937 Truck

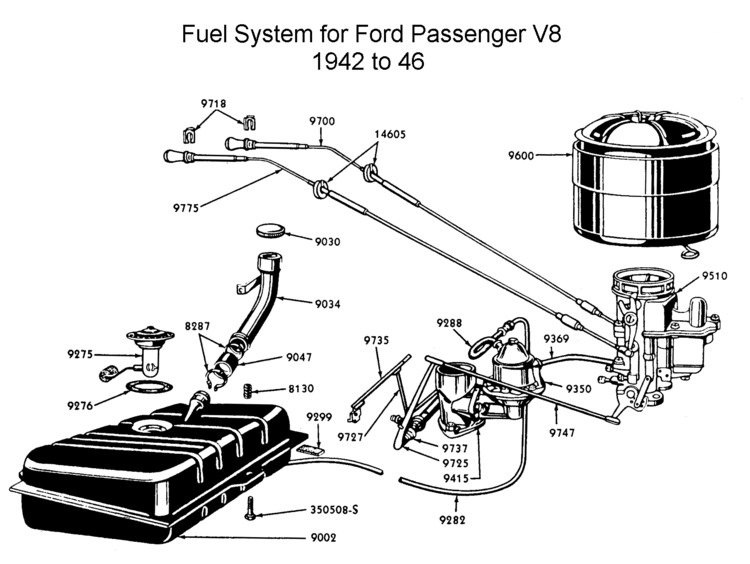

• Fuel System for 1942 to 46 Passenger V8

• Fuel System for 1942 to 46 Truck & Comm V8
