Rear End & Axles - Passenger Cars

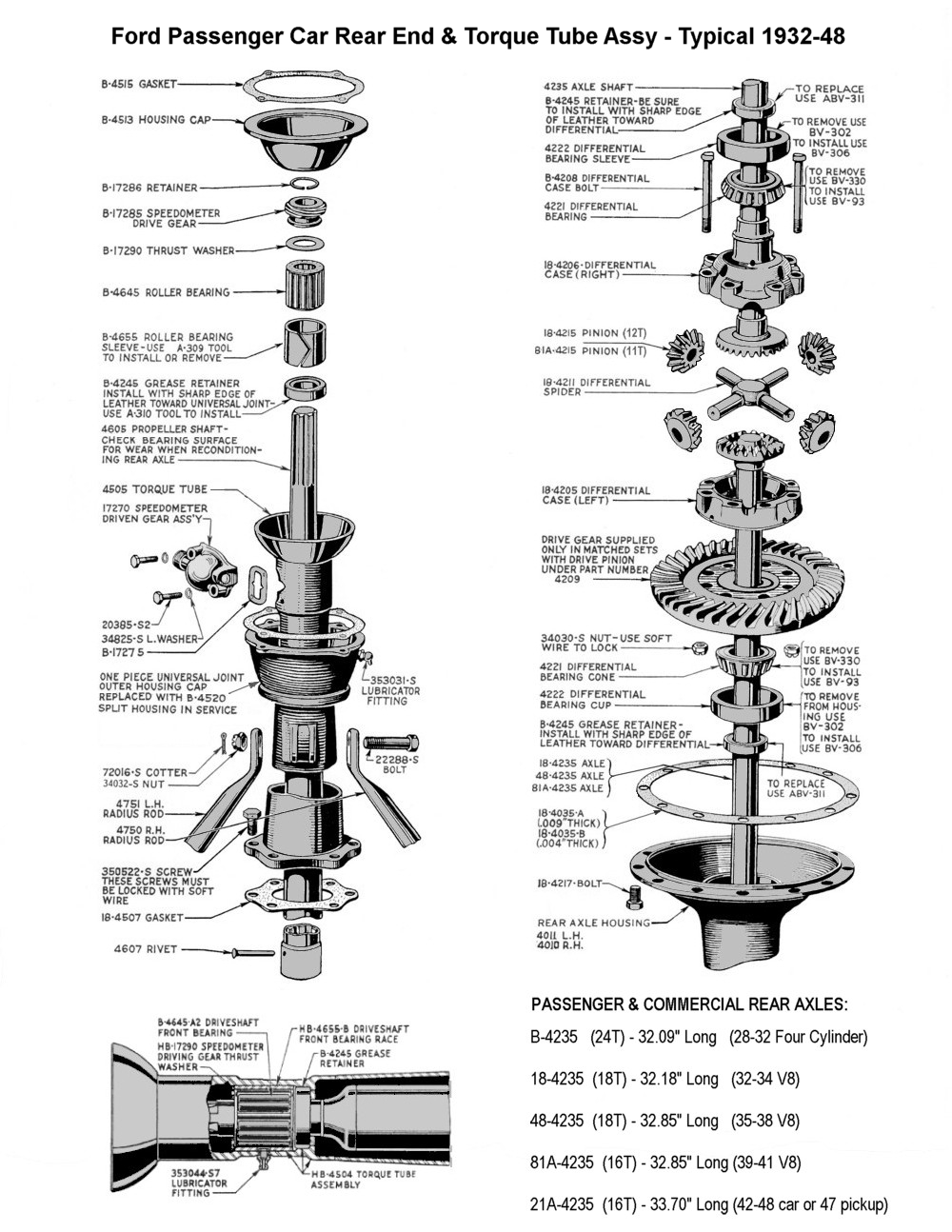

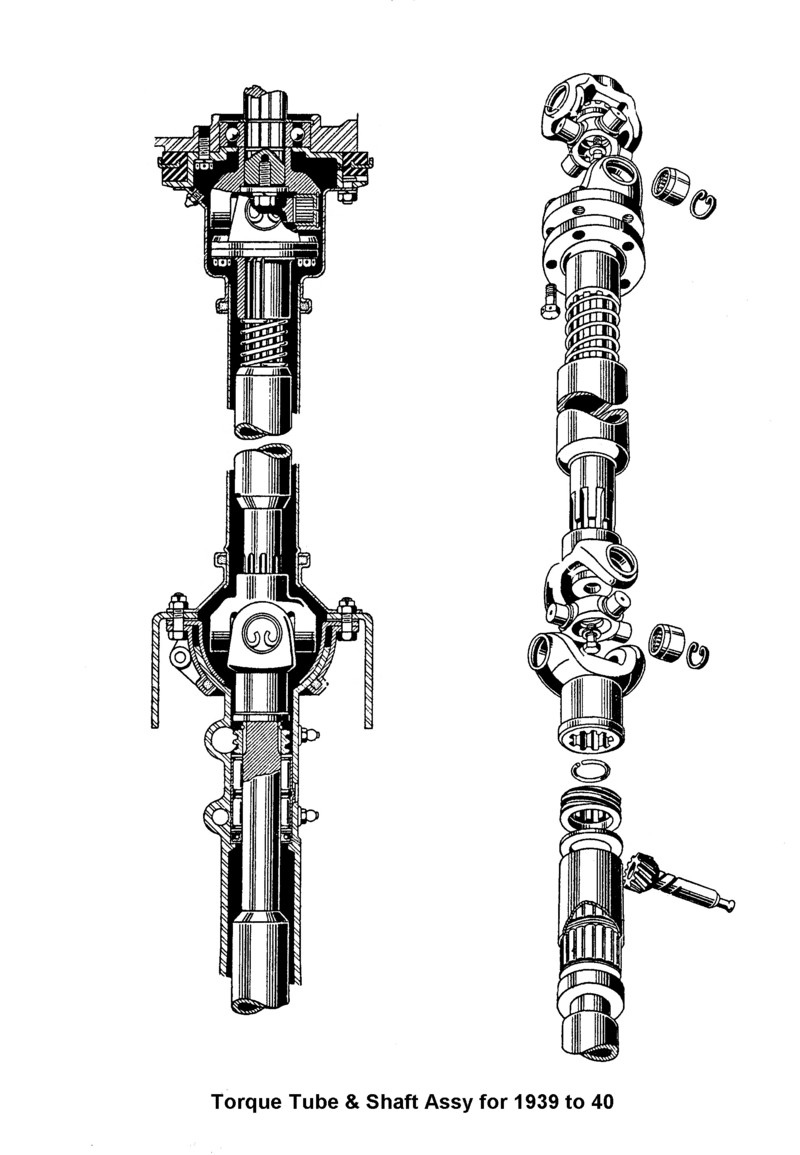

• Differential and Torque Tube Assy - Typical 1932 to 48

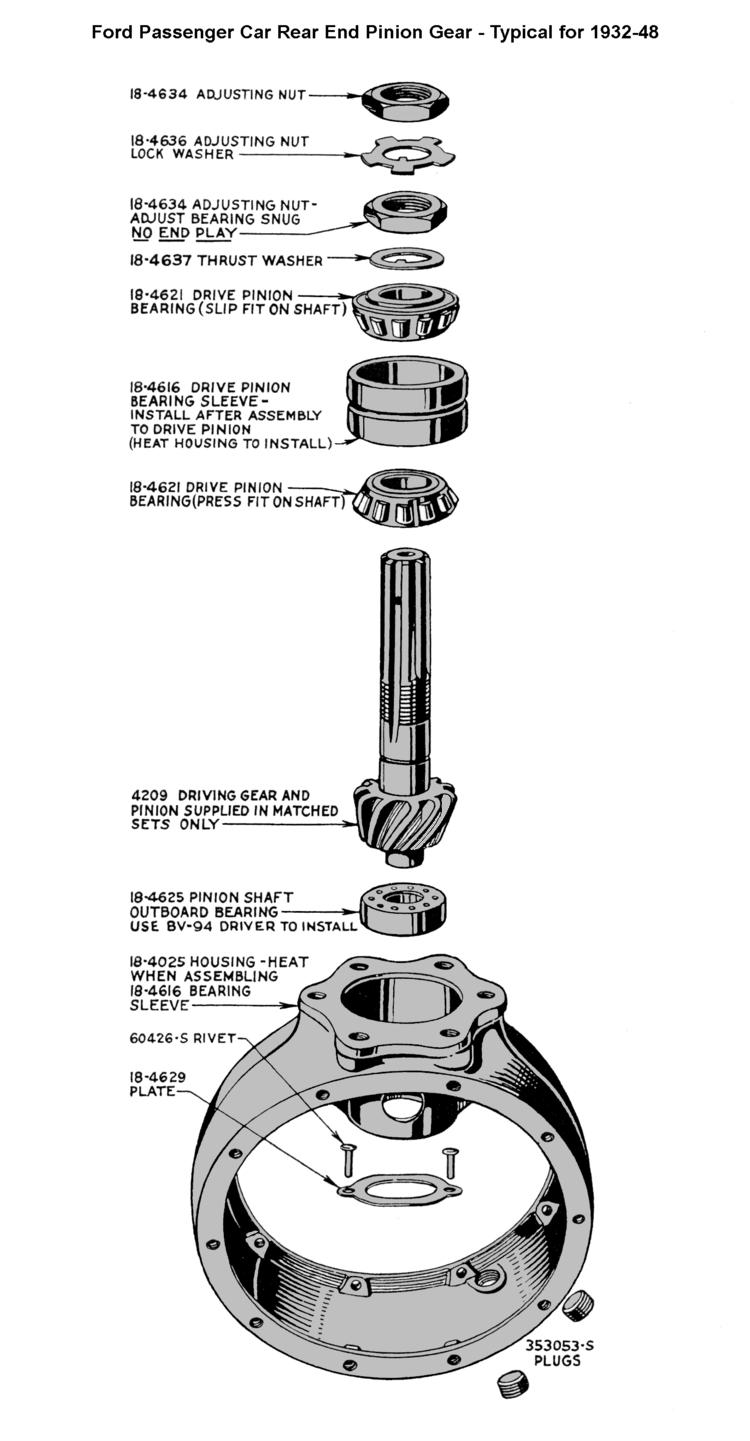

• Pinion Gear Assemby - Typical 1932 to 48

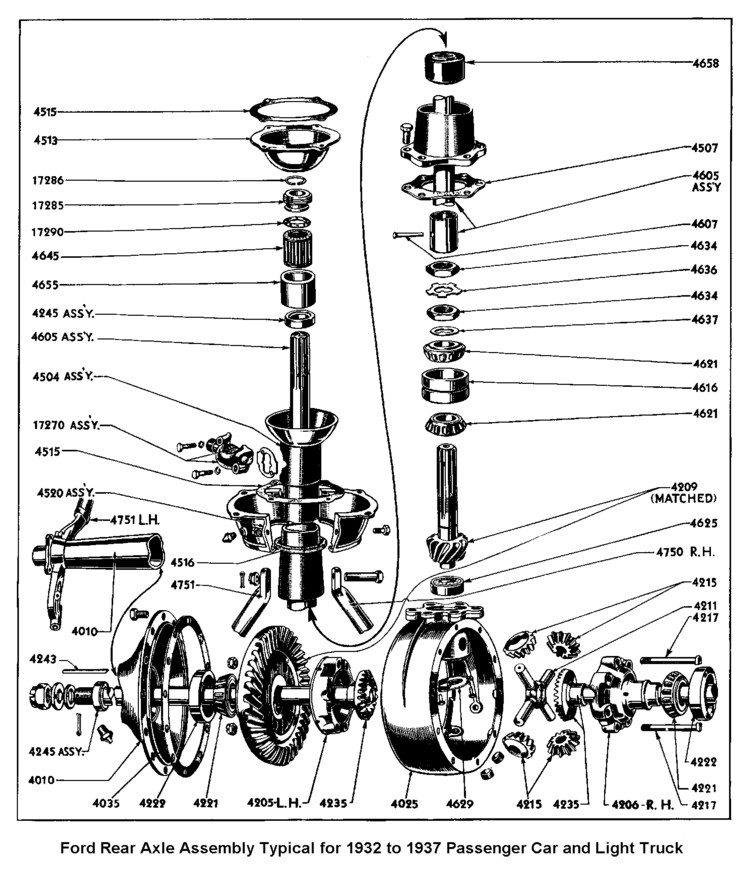

• Rear axle assembly for 1932 to 37 car and light truck

• Rear axle assembly for 1938 to 48 car

• Rear axle cut-a-way drawing for 1940 car

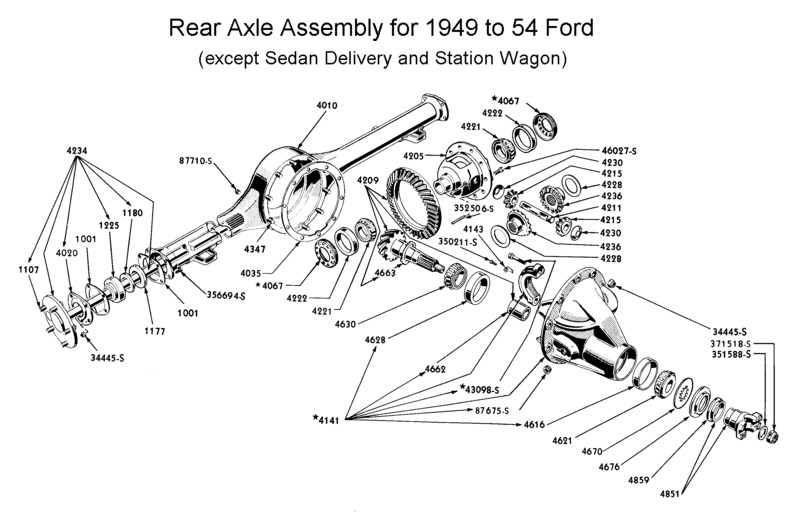

• Rear axle assy for 1949 to 54 (exc sedan delivery and station wagon)

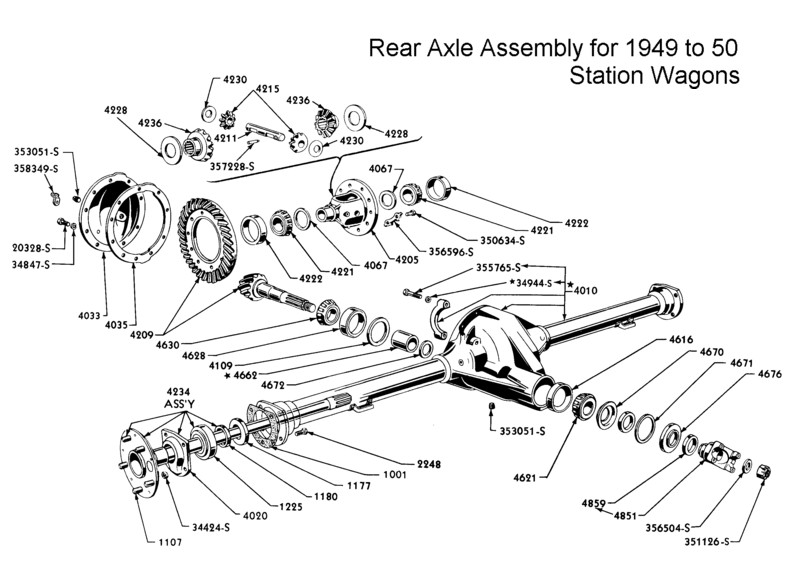

• Rear axle assy for 1949 to 50 station wagon

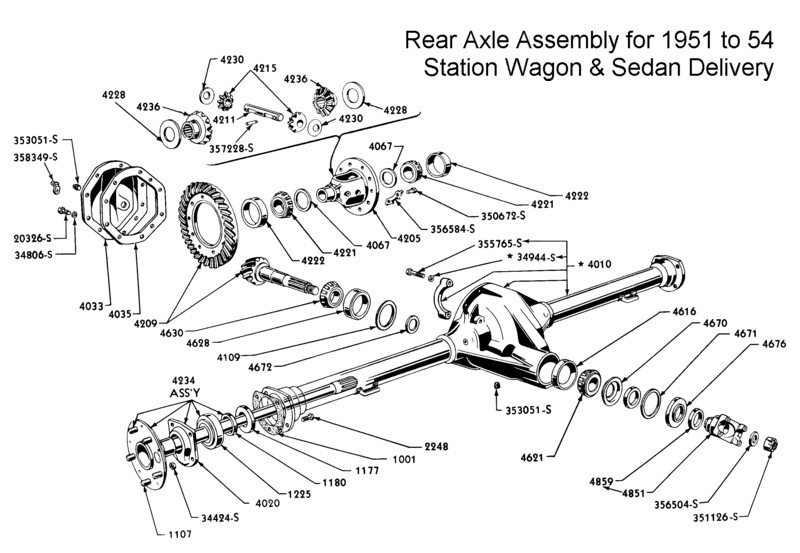

• Rear axle assy for 1951 to 54 sedan delivery and station wagon

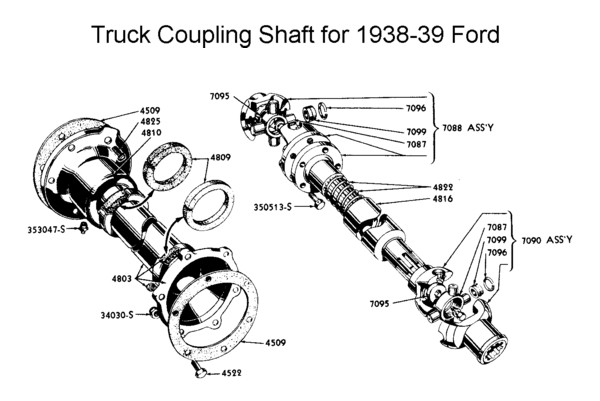

Rear End & Axles - Trucks

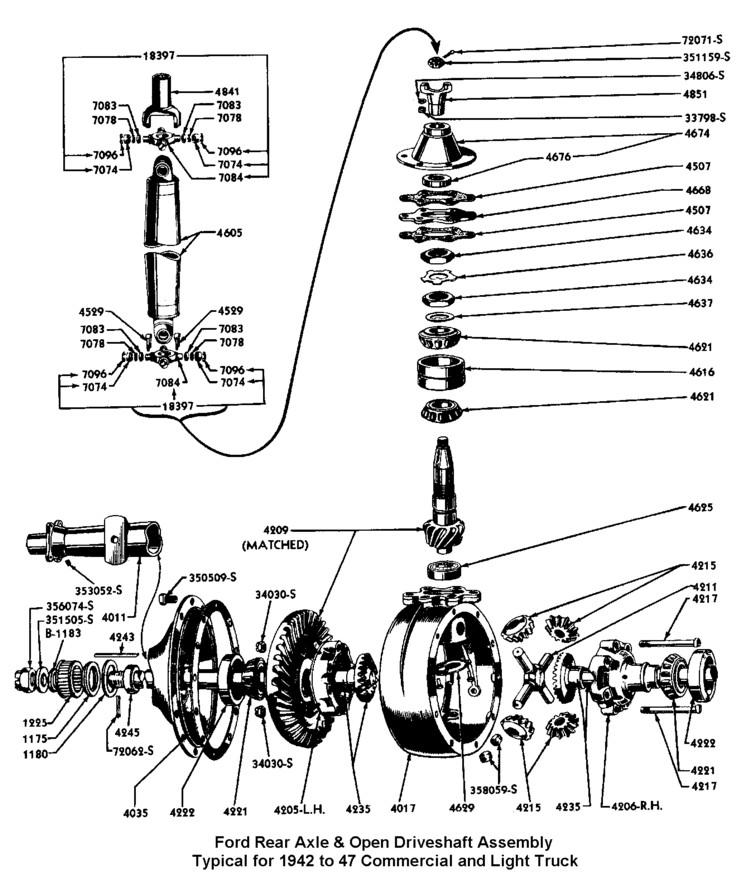

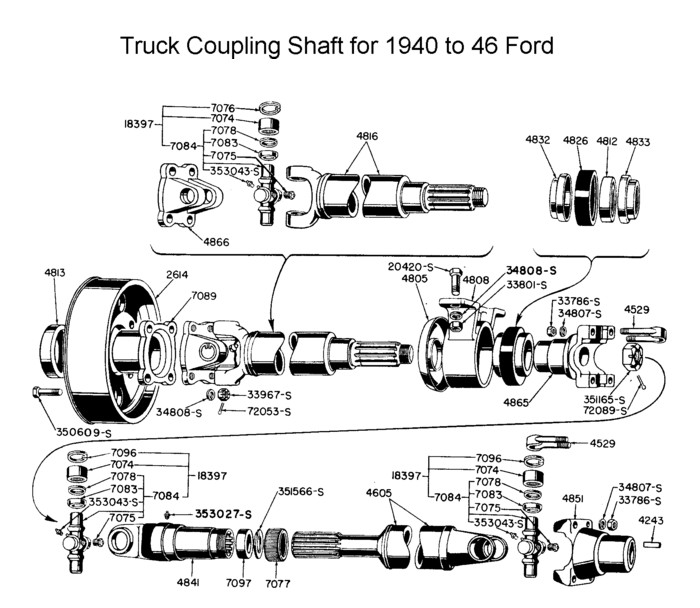

• Rear axle assembly for 1942 to 47 light truck

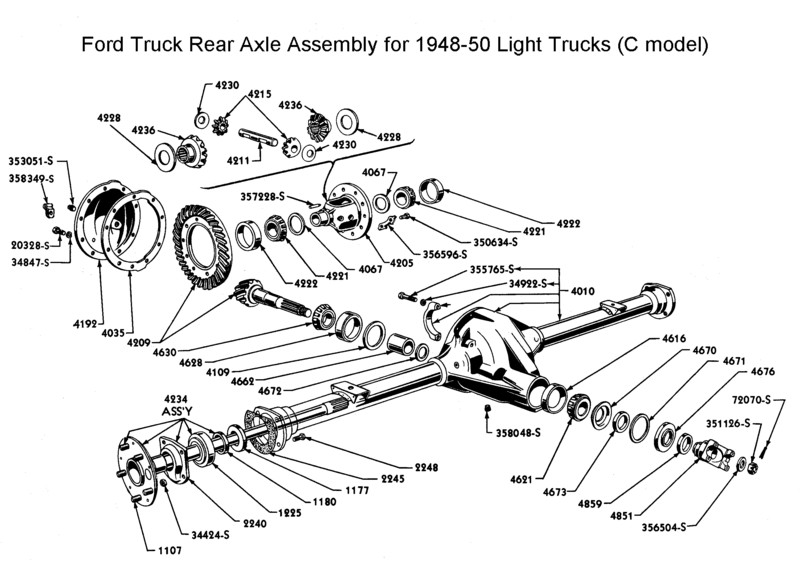

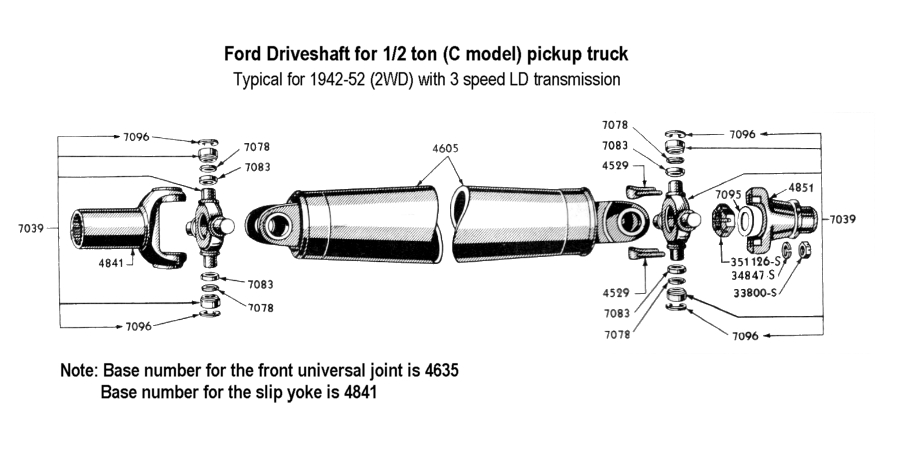

• Rear axle assy for 1948 to 52 light truck (C)

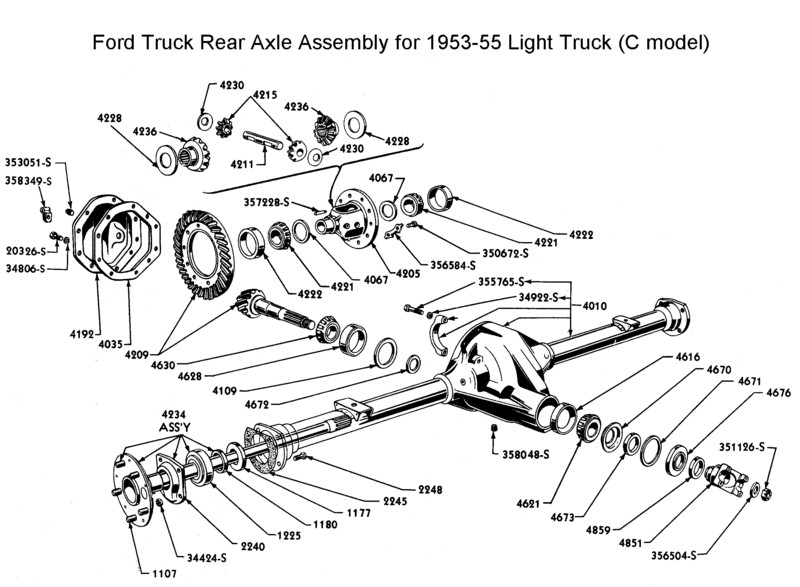

• Rear axle assy for 1953 to 55 light truck (C)
