Steering Gear Drawings - Cars

• Steering gear & wheel for 1933 to 36 Car
• Steering gear & wheel for 1937 Car
• Steering gear & wheel for 1940 to 41 Car

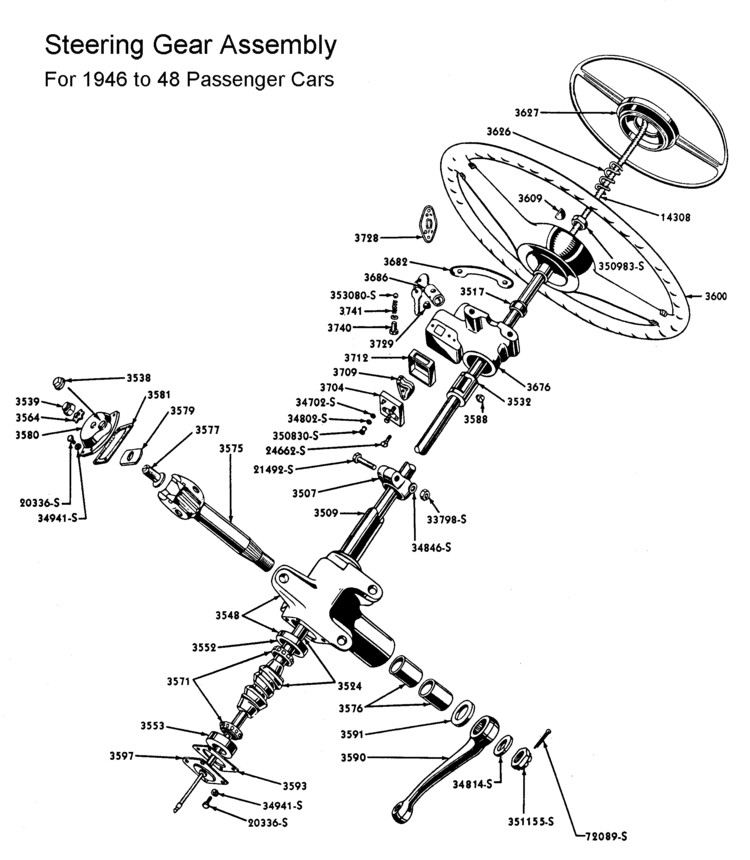

• Steering gear & wheel for 1946 to 48 Car
• Steering gear & wheel for 1949 to 50 Car
• Steering gear & wheel for 1951 Ford

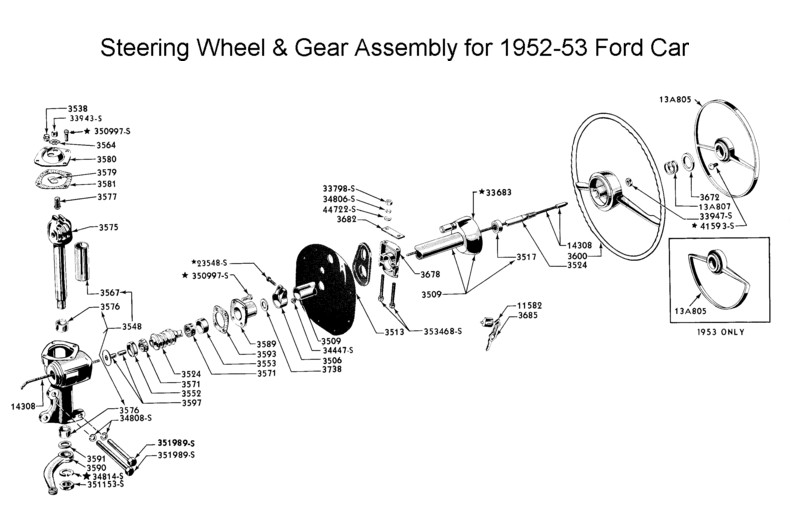

• Steering gear & wheel for 1952 to 53 Car

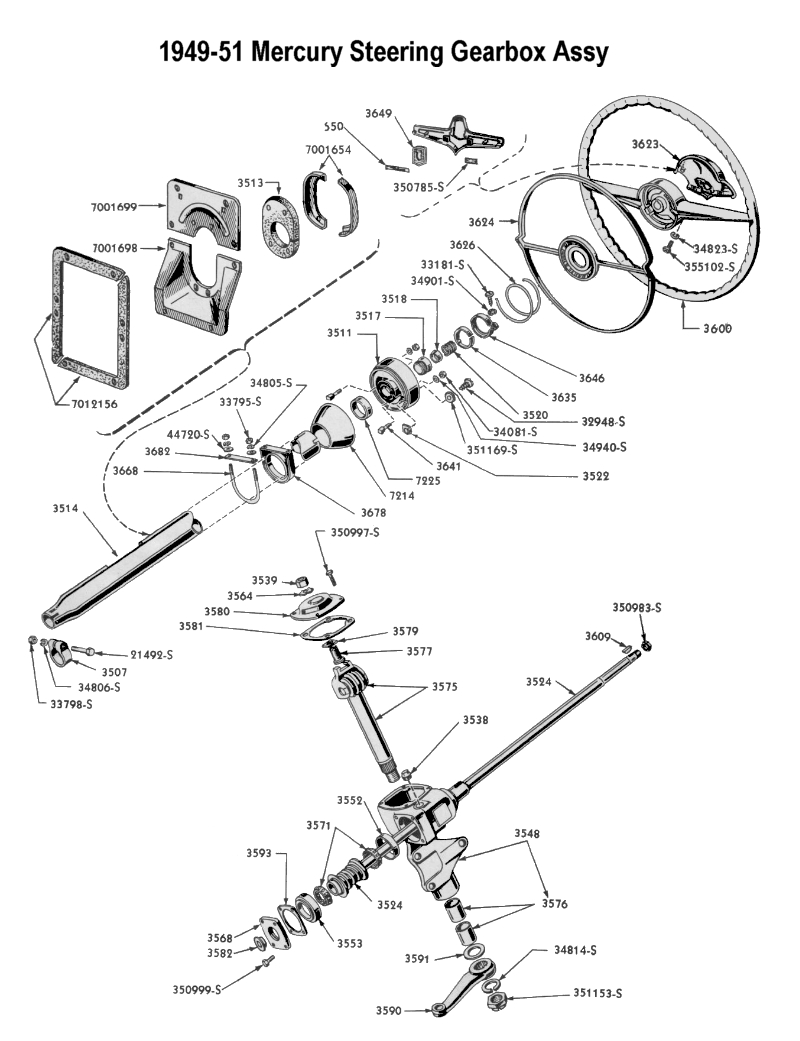

• Steering gear & wheel for 1949-51 Mercury Cars
• Steering gear cut-a-way for 1937 to 48 Cars

Note: For 1932-47 pickup trucks refer to passenger car drawings above

Steering Gear Drawings - Trucks

• Steering gear & wheel for 1940 to 47 Trucks

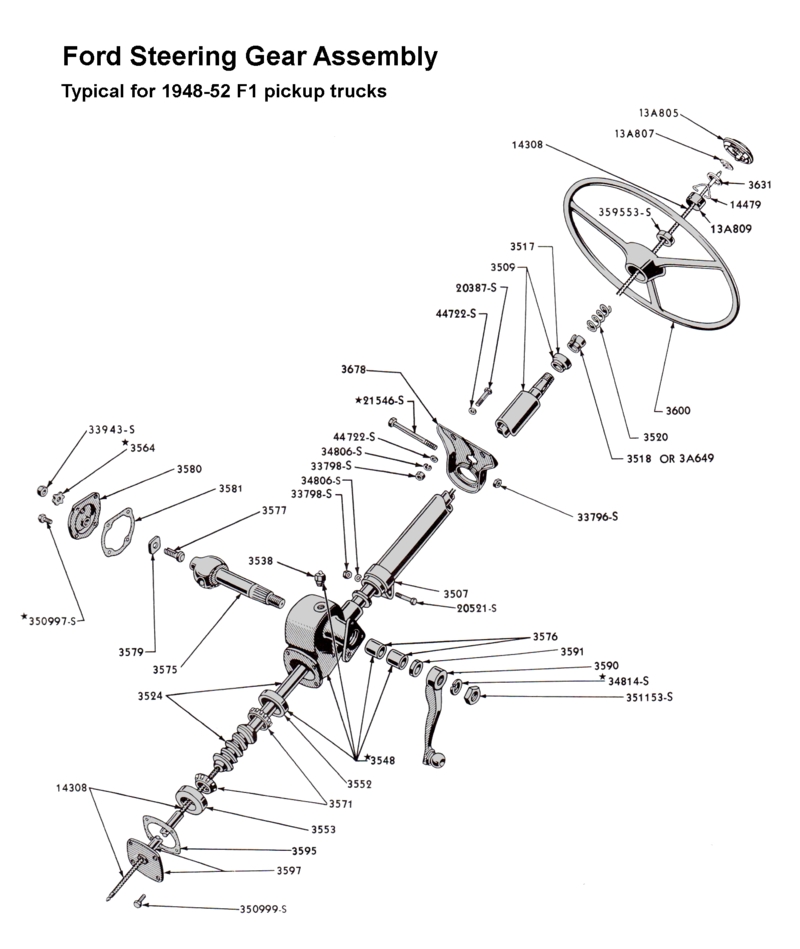

• Steering gear & wheel for 1948 to 52 F1 Pickup Trucks

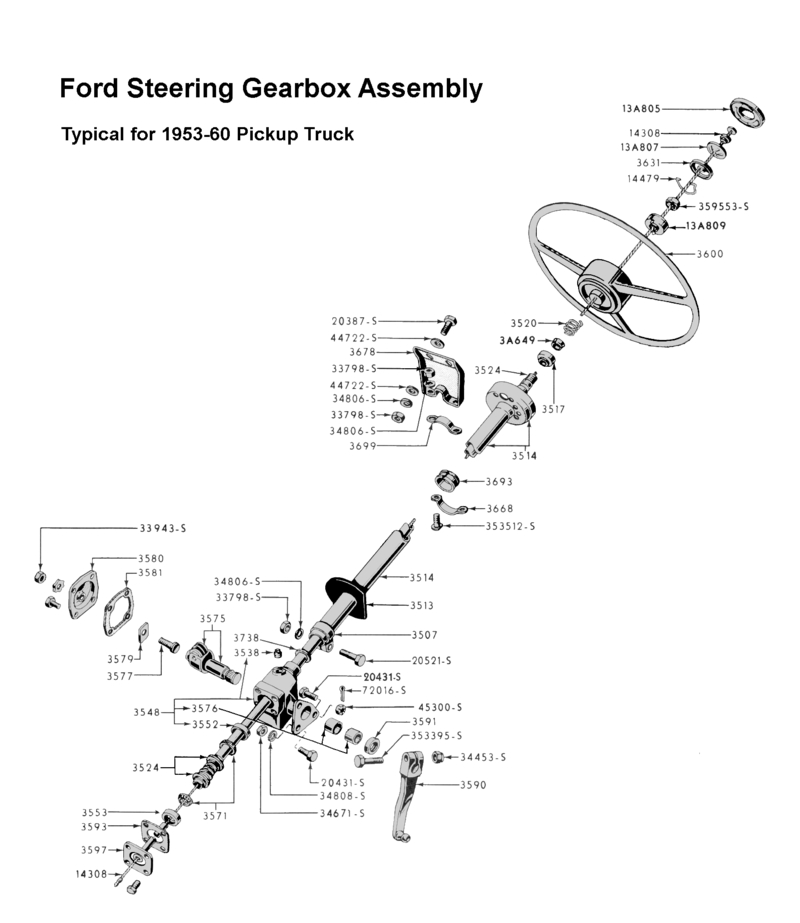

• Steering gear & wheel for 1953 to 60 F100 Pickup Trucks

Technical Drawings

• Steering gear adjustments 1937-48 Ford car

• Steering gear adjustments 1949-51 Ford car

Steering Linkage

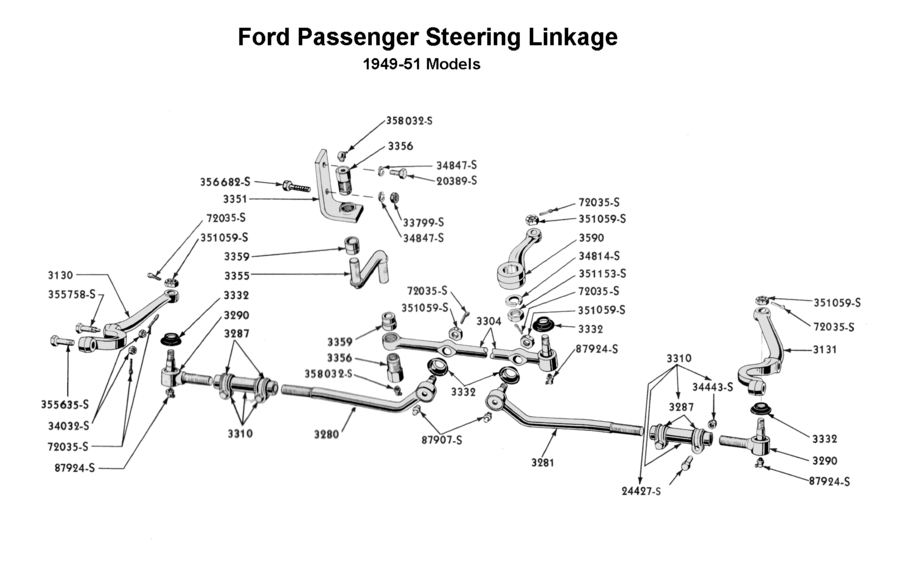

• Steering linkage for 1949-51 Ford cars

 Part Drawings

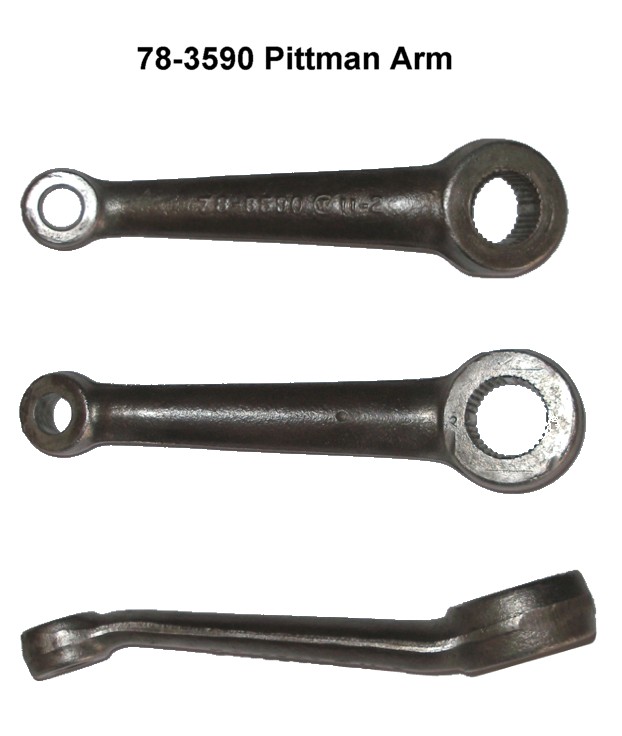

• 78-3590 Pittman Arm

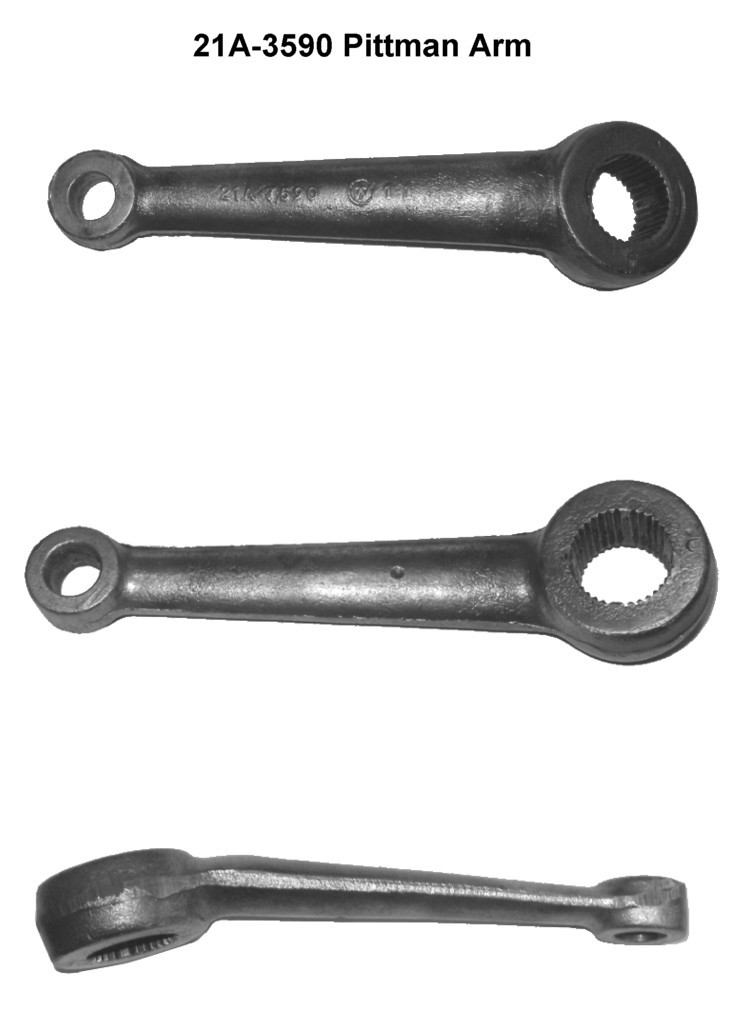

• 21A-3590 Pittman Arm
