FLATHEAD REAR END AND TORQUE TUBE PARTS

Use these links for more information:

Rear End Parts Drawings

Page 1      Page 2
Ford Part
Number
Description Image Application Notes Price for
New Part


Other Rear End & Torque Tube Parts


18-4211 Differential Cross (spider) - 4 Arm PIC 1932-48 Car & 32-47 Pickup $ 49.00
81A-4215 Differential Pinion Gear (spider) - 11 Tooth PIC 1939-48 Car & 39-47 Pickup 35.00
 B-4221 Carrier Bearing Cone (use with B-4222 cup and B-4616 double pinion race)  NOS/NORS PIC 28-31 Four & early 32 44.00
18-4221 Carrier Bearing Cone  (goes with the 18-4222 cup)  NOS/NORS PIC 32 late -36 Car & 32-36 Pickup 85.00
68-4221 Carrier Bearing Cone  (goes with the 68-4222 cup)  NOS/NORS PIC 37-48 Car & 37-47 Pickup 39.00
 B-4222 Carrier Bearing Cup  (goes with the B-4222 cone)  NOS/NORS PIC 28-32 Four Car & Pickup 37.00
18-4222 Carrier Bearing Cup  (goes with the 18-4222 cone)  NOS/NORS PIC 32 late -36 Car & 32-36 Pickup 21.00
68-4222 Carrier Bearing Cup  (goes with the 68-4222 cone)  NOS/NORS PIC 37-48 Car & 37-47 Pickup 19.00
 B-4221/22-S Carrier Bearing Set (one B-4221 cone + one B-4222 cup)    - Two sets required per vehicle PIC 28-32 Four Car & Pickup 45.00
18-4221/22-S Carrier Bearing Set (one 18-4221 cone + one 18-4222 cup)   - Two sets required per vehicle PIC 32-36 Car & 32-36 Pickup 49.00
68-4221/22S Carrier Bearing Set (one 68-4221 cone + one 68-4222 cup)   - Two sets required per vehicle PIC 37-48 Car & 37-47 Pickup 39.00
8A-4221/22S Carrier Bearing Set (one 8A-4221 cone + one 8A-4222 cup)  - Two sets required per vehicle PIC 1949-54 Ford Car 49.00

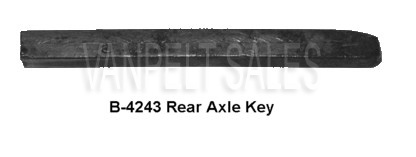

  B-4243 Key - Rear Axle (2.86" L) - 2 required PIC 28-48 Car & 28-47 Pickup 1.50
  B-4245 Grease Seal - Rear Axle Inner  (2 required) PIC 28-48 Car & 28-47 Pickup 3.00
  B-4245 Grease Seal - Torque Tube Front (1 required) PIC 28-48 Car & 28-41 Pickup 3.00

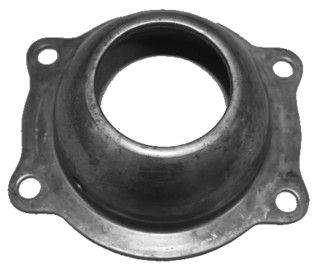

  B-4513 Cap - Inner (4 bolt holes)  USED PART PIC 1932-48 Car & 32-41 Pickup  20.00
48-4520 Cap - Outer (2 piece type) USED PART PIC 1932-48 Car & 32-41 Pickup 45.00
20391-SK Kit: bolts, nuts, lockwashers   (for the 48-4520 outer cap assy) PIC 1932-48 Car & 32-47 Pickup 3.00
358011-S Lubricator Fitting - 1/8" - Angled   (for the B-4520 outer cap assy) PIC 1932-48 Car & 32-42 Pickup 2.00
48-4607 Pin - Driveshaft (10 spline type) - 2.04" long PIC 1932-37 Car & Pickup 2.00
68-4607 Pin - Driveshaft ( 6 spline type) - 1.70" long PIC 1937-48 Car & 37-41 Pickup 2.00
 B-4616/21-S Pinion Bearing Set  (one B-4616 double race + two B-4221 bearing cones) PIC Early 32 V8 Car & Pickup 99.00
18-4616/21-S Pinion Bearing Set (one 18-4616 double race + two 18-4621 bearing cones) PIC Late 32-34 V8 Car & Pickup 89.00
48-4616/21-S Pinion Bearing Set (one 48-4616 double race + two 48-4621 bearing cones) PIC 1935-48 Car & 32-47 Pickup 68.50
 B-4616 Pinion Bearing Double Race  (used with two B-4221 bearing cones)  NOS/NORS PIC Early 32 V8 Car & Pickup 82.00
18-4616 Pinion Bearing Double Race  (used with two 18-4621 bearing cones)  NOS/NORS PIC Late 32-34 V8 Car & Pickup 89.00
48-4616 Pinion Bearing Double Race  (used with two 48-4621 bearing cones)  NOS/NORS PIC 1935-48 Car & 32-47 Pickup 95.00
8A-4616 Pinion Bearing Race  NOS/NORS PIC 1949-54 Car + 49-51 Merc 12.00
18-4621 Pinion Bearing Cone (two used with 18-4316 double race)  NOS/NORS PIC Late 32-34 V8 Car & Pickup 19.00
48-4621 Pinion Bearing Cone (two used with 48-4316 double race)  NOS/NORS PIC 1935-48 Car & 32-47 Pickup 35.00
8A-4621 Pinion Bearing PIC 1949-54 Car + 49-51 Merc 29.50
18-4625 Pinion Pilot Bearing PIC 1932-48 Car & 32-47 Pickup 21.00
8A-4628 Pinion Bearing Race PIC 1949-54 Car (check application)  14.50
8A-4630 Pinion Bearing PIC 1949-54 Car (check application)  27.00
B-4634 Nut - Pinion Bearing - 2 req'd            EACH: PIC 28-32 Car & 28-32 Pickup 5.50
18-4634 Nut - Pinion Bearing - 2 req'd            EACH: PIC 28-48 Car & 28-47 Pickup 7.00
 B-4636 Lockwasher - Pinion Bearing Nut   (1 req'd)  OD:2.509"    ID: 1.574" PIC 28-32 Car & 28-32 Pickup 2.50
01Y-4636 Lockwasher - Pinion Bearing Nut   (1 req'd)  OD:2.320"    ID: 1.325" PIC 32-48 Car & 32-47 Trucks 4.00
B-4637 Thrust Washer - Pinion Bearing PIC 28-32 Car & 28-32 Pickup 3.50
01Y-4637 Thrust Washer - Pinion Bearing PIC 1932-48 Car & 32-47 Pickup 4.00
B-4645 Roller Bearing - Driveshaft front PIC 1932-48 Car & 32-41 Pickup 13.00

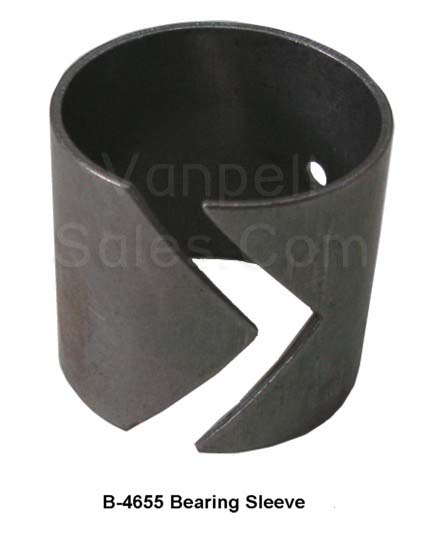

B-4655 Bushing/Sleeve - Driveshaft front PIC 1932-48 Car & 32-41 Pickup 9.50
VP-4658K Bearing Kit - Driveshaft/Torque Tube     (replaces the 78-4658 bearing) PIC 1937-48 Car & 37-41 Pickup 169.00
01Y-4676 Oil Seal - Rear End Pinion   (2.007" od) PIC 42-47 Comm/Pickup 13.00
8A-4676 Oil Seal - Rear End Pinion   (3.0" od) PIC 49-56 Ford car & 52-55 Merc 7.00

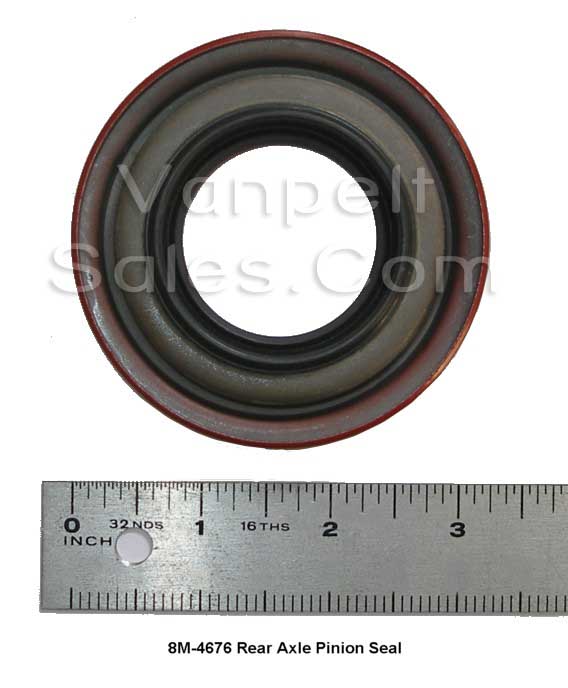

8M-4676 Oil Seal - Rear End Pinion   (3.0172" od) PIC 48-56 F1 & F100 + Others * 9.50

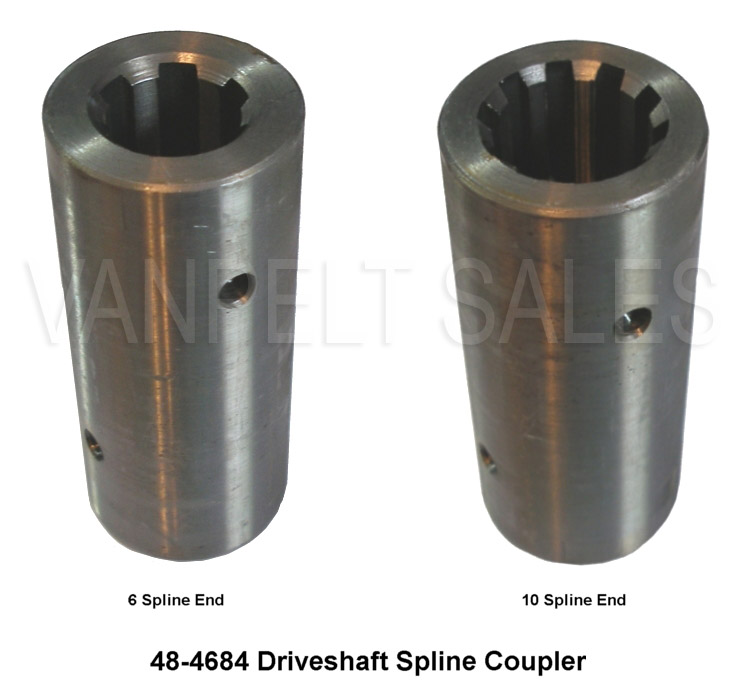

48-4684 Coupler - 6 spline pinion to 10 spline driveshaft PIC 35-48 Car & 35-41 Pickup 89.00

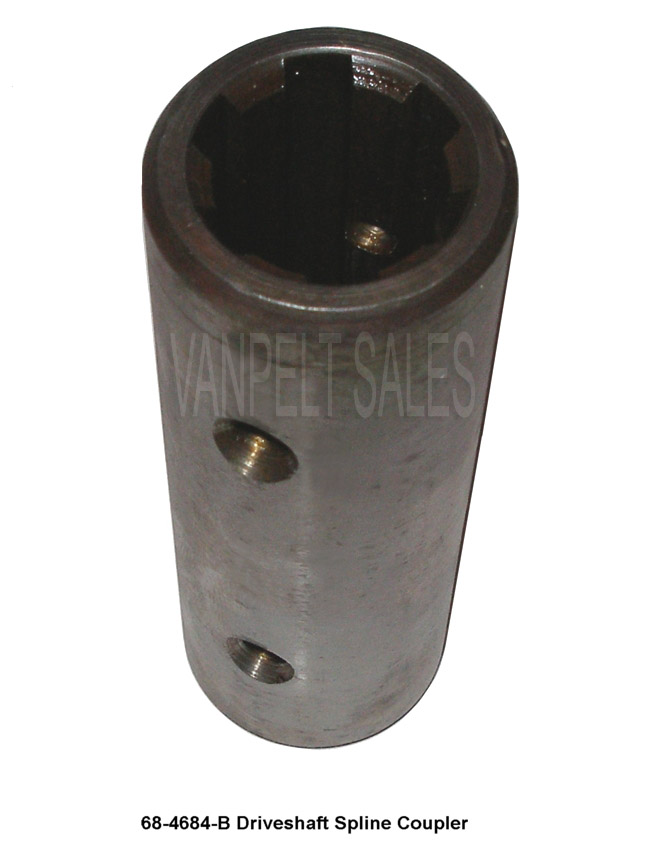

68-4684-B Coupler - 6 spline pinion to 6 spline driveshaft PIC 37-48 Car & 37-41 Pickup 63.00
  * Also fits 1949-56 Ford wagons + 1949-51 Mercury + 1955-56 T-Bird


Miscellaneous Parts


  34034-S Axle Nut   (5/8"-18) - 2 req'd            EACH: PIC 28-48 Car & 28-47 Pickup $  2.00
 356074-S Axle Nut   (5/8"-18) - replaced by 34034-S PIC   Use 34034-S
 351505 Axle Washer  (5/8") - 2 req'd            EACH: PIC 28-48 Car & 28-47 Pickup 1.50

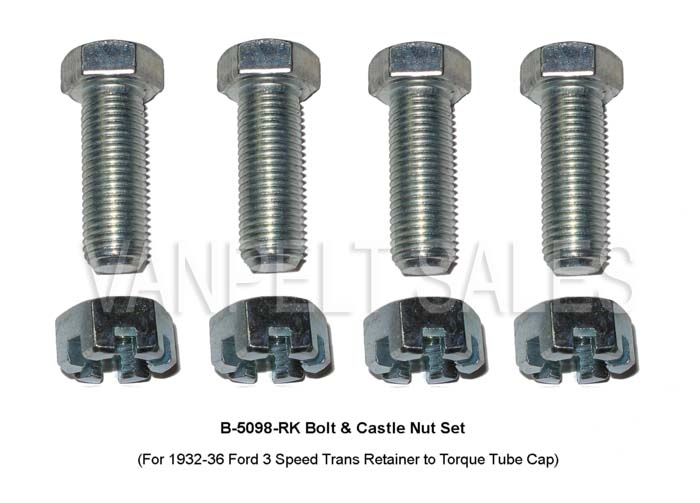

B-5098-RK Bolt & Nut Kit -Torque tube to trans mount PIC 1932-48 Car & 32-41 Pickup 7.50
 20391-SK Bolt & Nut Kit -Holds the B-4520 outer cap assy PIC 1932-48 Car & 32-41 Pickup 3.00


Universal Joints


B-7084-K U-Joint bushing & snap ring kit PIC 1928-48 Car & 28-41 Pickup $ 29.00
B-7084-RK U-Joint repair kit (includes bushings, snap rings, and center cross) PIC 1928-48 Car & 28-41 Pickup 45.00
B-7090-U Universal Joint - Front  (closed driveshaft)  USED PART (note: repair kits available) PIC 1928-48 Car & 28-41 Pickup 55.00
B5AZ-4635-B Universal Joint - Front PIC 1949-60 Car * 18.95

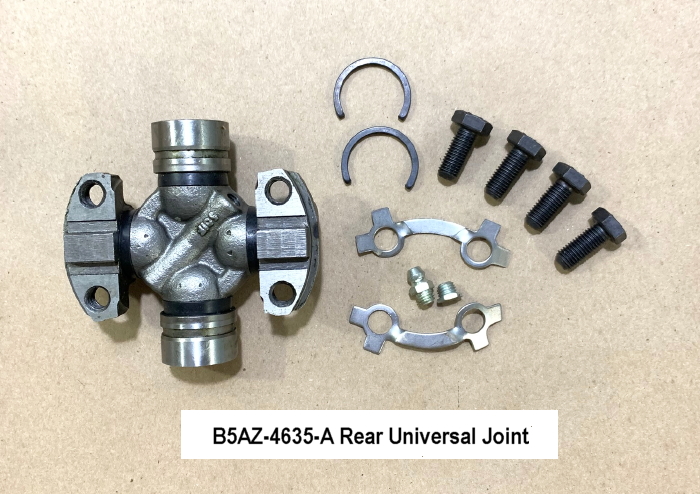

B5AZ-4635-A Universal Joint - Rear PIC 1949-60 Car * 45.00
B5TZ-4635-A Universal Joint - Front & Rear PIC 1940-70 Truck 1 & 2 Ton * 16.00
B6TZ-4635-A Universal Joint - Front & Rear PIC 1953-70 Truck & 1 Ton * 16.00
B7AZ-4635-A Universal Joint - Front & Rear PIC 1956-60 Car * 16.50
B7AZ-4635-A Universal Joint - Front & Rear PIC 1942-71 Pickup - Ton * 16.50


Driveshaft Front Slip Yokes


21C-4841 Replacement Slip Yoke - Accepts the B7AZ-4635-A spicer type joint PIC 1942-52 Pickup - Ton * $ 110.00
* Note: Check engine/transmission combination to verify exact u-joint requirement before ordering. Truck u-joints are for 4x2 drive trains. Call for information on 4x4 drive train u-joints.


Speedometer Gear Parts - Closed Drive


 B-17270 Speedometer Driven Gear and Housing - USED PART PIC 1932-48 Applications Check Availability
 B-17275 Gasket - Speedometer gear housing to torque tube PIC 1932-48 Applications $  1.50
 B-17285 Speedometer 7 Tooth Drive Gear (fits on front of driveshaft)  - USED PART PIC 1932-48 Applications 25.00
 B-17286 Snap Ring - speedo drive gear PIC

1932-48 Applications

1.50
 B-17290 Thrust Washer - speedo drive gear PIC

1932-48 Applications

3.00


Speedometer Gear Parts - Open Drive


B5A-17322-A Speedo Driven Gear (20 tooth)  NEW PART PIC 1949-56 Car 19.00
B5A-17322-B Speedo Driven Gear (21 tooth)  NEW PART PIC 1949-56 Car 19.00
B5A-17322-C Speedo Driven Gear (19 tooth)  NEW PART PIC 1949-56 Car 19.00
B5A-17322-D Speedo Driven Gear (22 tooth)  NEW PART PIC 1949-56 Car 19.00
Note: Gear tooth counts vary depending on the rear end axle ratio and the wheel/tire size. Calculate carefully to get the best accuracy with your speedometer. Driven gears with less teeth make the speedometer read faster. More teeth make it read slower.


Speedometer Cables


99A-17260-C Speedometer Cable Assy (inner & outer cable) with ends PIC 1935-48 Applications $ 16.00
A9A-17260 Speedometer Cable Assy (inner & outer cable) with ends PIC

1949-64 Applications

18.50
 8C-17260-A Speedometer Cable Assy (inner & outer cable) with ends PIC

1948-60 Applications (F series)

19.50
Note: The A9A cable kit fits 1949-56 passenger cars and 1953-64 F series truck applications. Check with us for your specific application.



Please Note:
Prices are subject to change without notice and will be those in effect at the time of order

 We strive to keep this web page up-to-date, but suppliers often do not give us advance notice before changing pricing to us. Please confirm your pricing when placing an order. The New Parts listed here are primarily replacement parts from limited supplies of new-old-stock or new-old-replacement-stock; or new reproduction parts. The Ford part numbers listed are for identification purposes only, and do NOT represent or imply that the parts offered are genuine Ford service parts. Our minimum order for product is $10.00 and the minimum shipping charge is $9.00. All prices listed below are in US Dollars.

To place an order, call 1-513-724-9486. Office hours are Monday-Thursday from 9:00am to 5:00pm Eastern Time. Not all parts are listed on the store yet so check with our sales office if you do not see an item in the online store.

Please Note: All international packages require completion of the Customs Declaration Form, and will be charged a $10.00 documentation fee.
Email: sales @ vanpeltsales.com
